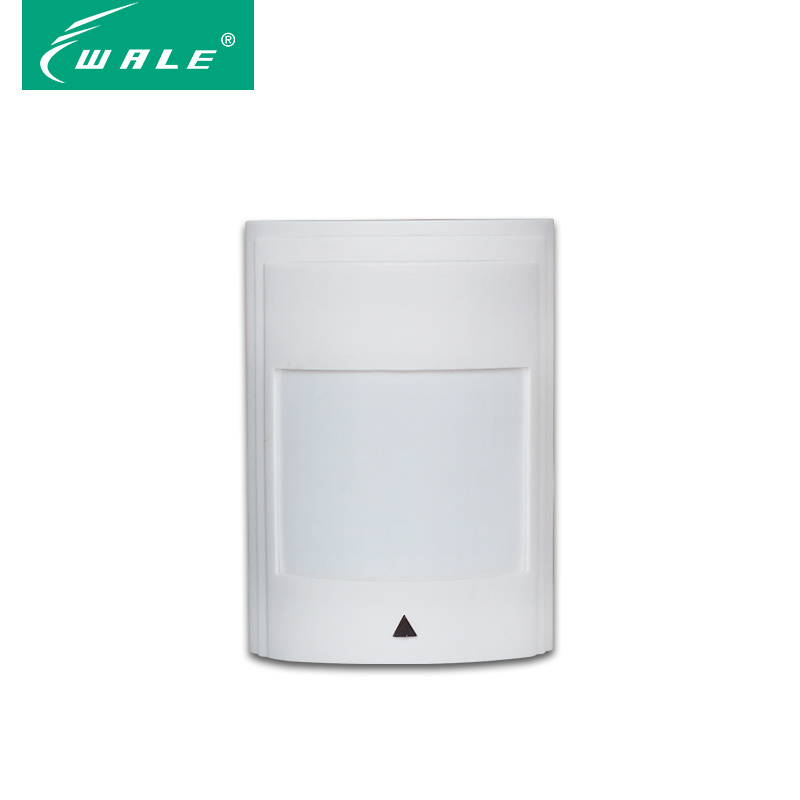

Wired PIR Motion Sensor for Home Security

Name: Wired PIR Motion Sensor for Home Security
Brand: all-electronics-online.com
SKU: 762137115
Availability: InStock
Rating: 4.4 (113 reviews)

Price:	US $ 2.8-3/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PA-476
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Alarm Output:	Nc,28VDC 0.15A
Detection Distance:	12m
Working Humidity:	95%
Sensitivity:	Level 2 Adjustable
Certificate:	CE and RoHS

Product Description

Paradox PA-476 wired pir Motion Sensor IR Sensor Burglar Anti-theft Intruder Detector

Features:
1) Apperance fashion and delicate, fluent, suitable for any adornment environment.
2) Pusle automatic adjust, resistance of RF interference.
3) Flame retardant shell.
4) Popular Hang Wall Passive Infrared Motion Detector, particularly suitable for security of community use.

1. High performance passive infrared motion sensor, compact size and streamlined design is ideal for the security application
2. Auto pulse signal processing, 2 levels adjustable
3. Auto temperature compensation
4. Optional other lenses
5. This sensor also provides backup protection door/window sensors
6. The indoor sensor can be used to protect locations where door/window sensors are impractical or not needed
7. High density SMD design
8. Sensor low battery reports to the control panel
9. Additional connector for EOL resistor
10. This PIR motion sensor has a changeable PIR range for smaller rooms, making the sensor even more balanced, without compromising its excellent detection ability
11. Fire resistant case

Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. Two years warranty is provided for all models.

Delivery
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4-6weeks after the receipt of payment. Please contact our sales to make sure the current inventory.

Model	PA-476
Sensor	low noise, high sensitivity, dual infrared
Processor	Level 2 automatic pusle and temperature compensation
Starting time	Electrify 60s
Detection speed	0.2--7m per second
Sensitivity	Level 2 adjustable
Working temperature	-10°C to 50°C
Power input	9--16Vdc,await for instrucion1 8mA,alarm 20mA
Resistance of white light	6500 lux
Alarm output	NC,28Vdc 0.15A

Established in Shenzhen on July 25, 2006, Shenzhen Wale Group Co., Ltd is a national high-tech enterprise mainly on researching, developing and manufacturing high-tech products for security GSM home alarm, terrorism and violence, quantum detection, and energy environment, as well as a solution provider about industry data analyzing

The factory and office are located in Shenzhen, which is near to ports for sea delliver. The factory can support OEM/ODM service for long term cooperation. Our products are welcomed by our forg

Every year, we will going to attend Security Exhibition all over the world, such as USA, Russia, Essen, India, Dubai, etc.

We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
