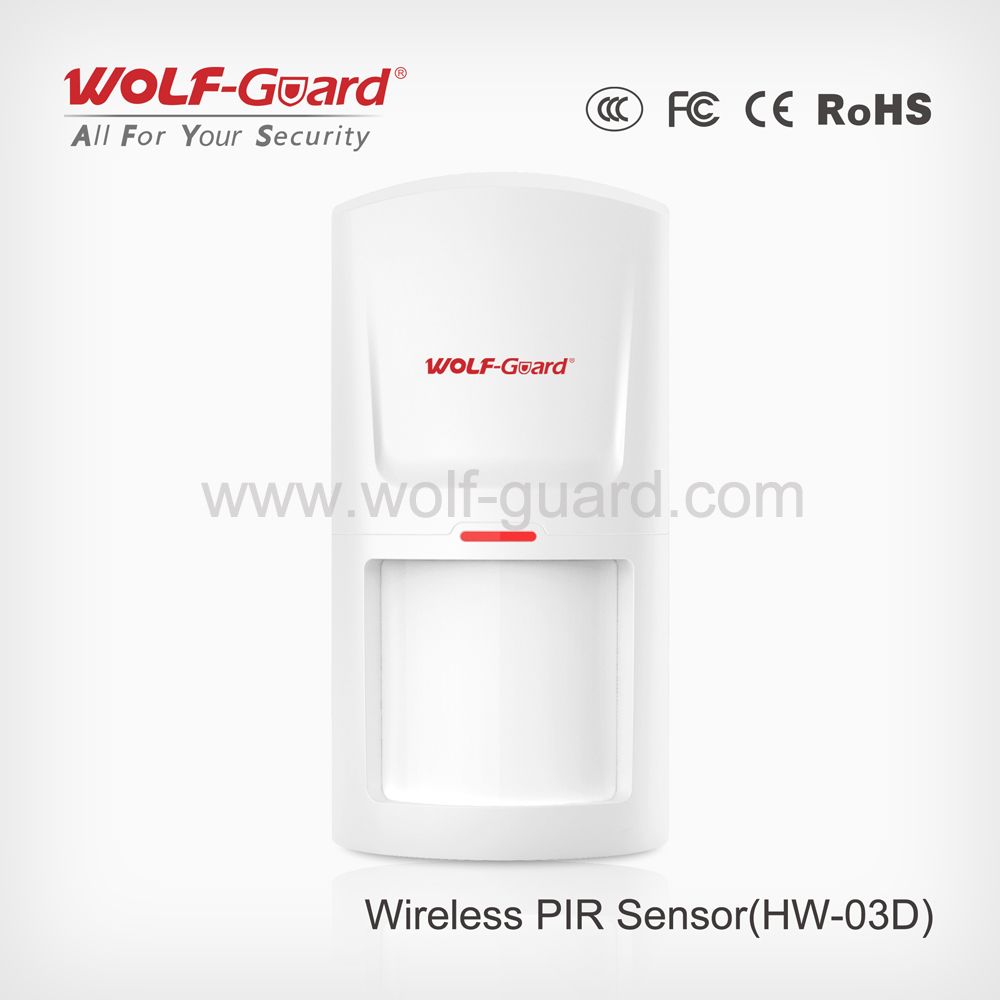

Wireless Alarm PIR Motion Detector with High Performance New Design (HW-03D)

Prod Model:	HW-03D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Sensor
Installation Mode:	Wall Mounted
Application:	Home
Usage:	Anti-Theft

Product Description

Wireless alarm PIR motion Detector with High Performance New Design (HW-03D)

New Wireless Special home and business PIR sensor with delicate and modern design( pantent appearance)

This product is a special home and business PIR detector with delicate and modern design (appearance has patent), adopting the latest technology of smart logic IC and high-performance sensor to achieve high stability and avoid alarm failure (please contact us for customized design if anti-strong light is required).

Adjust re-detecting time to 5 seconds, 50 seconds, or 5 minutes. This time means the interval between two contiguous alarms.
   Trigger time interval:
   1&2 short connect: 5 seconds (default)
   2&3 short connect: 50 seconds (normal mode)
   No short connect: 5 minutes (time-saving mode)
Parameters such as oscillation resistance can be adjusted in the corresponding position of PCB board.
   1&2 short circuit: 1.5M
   2&3 short circuit: 3.3M
3&4 short circuit: 4.7M (default)
