Wireless Anti-Theft Alarm Detector Motion Sensor PIR Detector From Wolf-Guard
| Price: |
US $ 5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
HW-03D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery: |
1 Year |
| Type: |
Infrared PIR |
Product Description

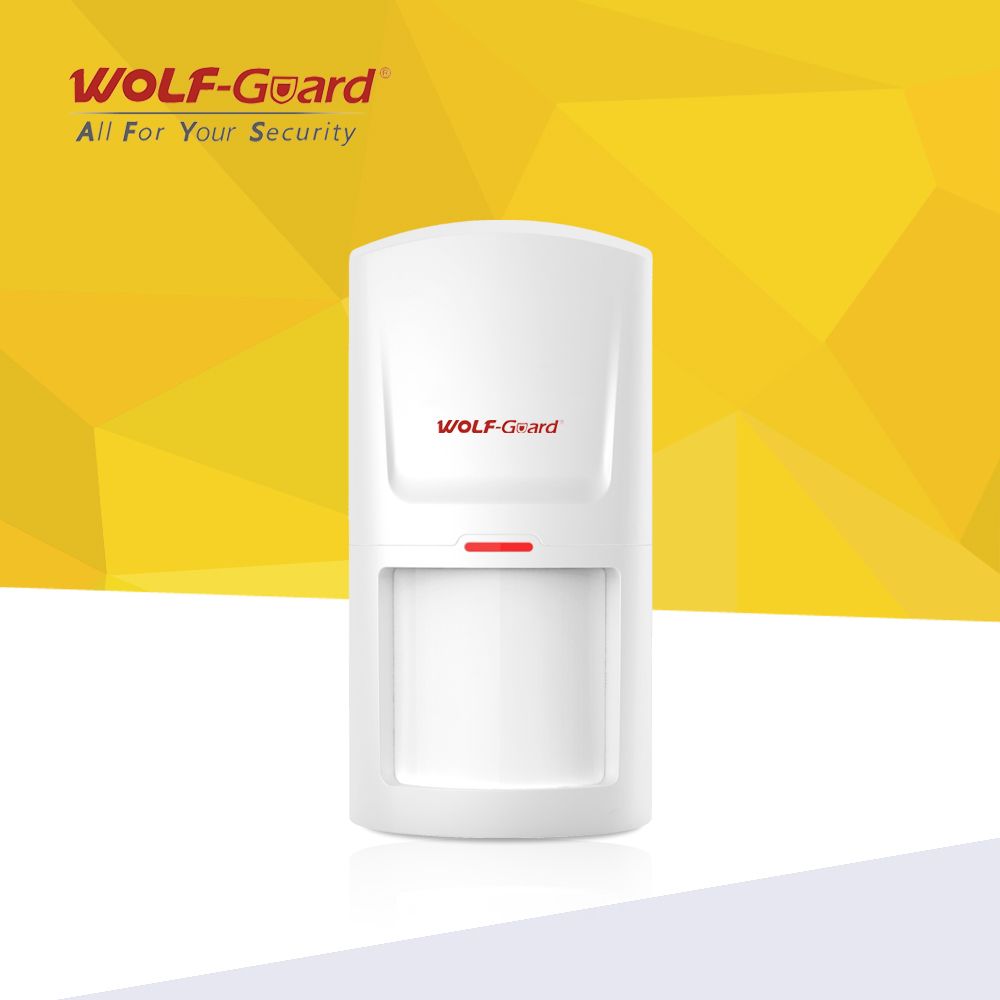

Wireless anti-theft alarm detector Motion sensor PIR detector
from Wolf-Guard HW-03D
1. Brief introductionThis product is a special home and business PIR detector with delicate and modern design (appearance has patent), adopting the latest technology of smart logic IC and high-performance sensor to achieve high stability and avoid alarm failure (please contact us for customized design if anti-strong light is required).
*Hang on the PIR detector to the bracket and fix it to the wall by screws in the standard pack kit. Keep it 1.8-2.5M above the ground, and then adjust detecting angle and direction. * Check the detecting area and distance by walking test until the whole defense zone is covered. *

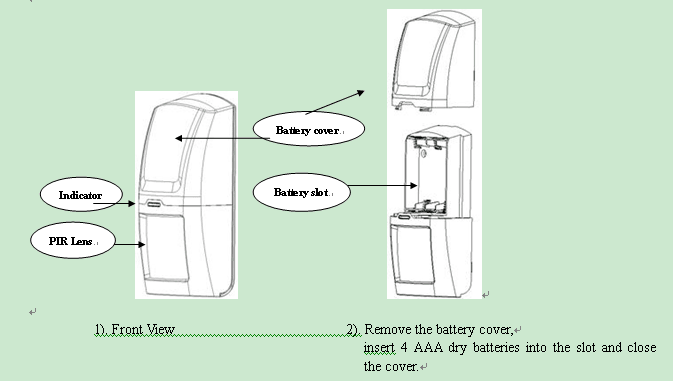

. If it is necessary to adjust parameters, please first remove the cover and take out the batteries. Please use screwdrivers to take out screws of the bottom cover. * Separate the bottom cover as the above picture shows. *. Adjust re-detecting time to 5 seconds, 50 seconds, or 5 minutes. This time means the interval between two contiguous alarms. Trigger time interval: 1&2 short connect: 5 seconds (default) 2&3 short connect: 50 seconds (normal mode) No short connect: 5 minutes (time-saving mode) *. Parameters such as oscillation resistance can be adjusted in the corresponding position of PCB board. 1&2 short circuit: 1.5M 2&3 short circuit: 3.3M 3&4 short circuit: 4.7M (default) 2. Installationl Detectors should be installed on the wall 1.8-2.5m above the ground (please refer to picture 4).l Adjust detecting angle, try to make it face window and keep it vertical with walking direction (please refer to picture 5).l Keep it away from heat, air conditioners and air convection areas (or close the door/window when arming).l No obstacle or floating object is allowed (such as flower, grass, clothes and curtain that will be easily be waft by wind) in the detecting area.l Detectors should be installed firmly without any waving and shaking.l Don't install it exposed to direct sunlight.The above requirements are primary to avoid false alarm and alarm failure, please pay attention when installing. 3. Test and Codingl Set the alarm panel to coding status (please refer to the alarm panel manual), then trigger the detector by hand (or walking in front of the detector) to make it send wireless signal to the alarm panel for coding.l After successful coding, install the PIR detector. Please pay attention to the installation height and detecting area. Make sure the switch is powered on after adjusting angle and height.l After installation, please follow the 5th point in Part 1 for walking test until the best defense effect is achieved. 4. IndicatorGreen indicator on: sensor is triggered and send alarm signalRed indicator on: battery is in low power status, please change it. 5. Technical ParametersSensor: Passive IR sensor with low noiseWorking voltage: DC6V, (4pcs AAA 1.5V dry batteries)Static current: <60uAAlarm current: <20mAWorking Temperature: +5~+45ºCHumidity: ≤95% (no fog)Transmitting frequency: 315/433+0.5MHZTransmitting distance: no obstacle 80MDetecting distance: 12M maxDetecting angle: Horizontal 110°, Vertical 60°Coding method: PT2262 or EV1527 optionalDimension: 112*60*38mm
Shenzhen Chitongda Electronic Co., Ltd, established in 1998, is a professional security product manufacturer for 16 years. With the famous brand "Wolf Guard", it has been exporting in a whole world for 6 years.
Owning a total factory area of 10000 Square meters, and over 300 employees, it has strong capability in R&D and producting. It passed CE, FCC, RoHS, ISO, etc product authorized certificates, and also has GMC, SGS, CCC, etc factory production audit report.
Our company joined many professional exhibitions abroad, like USA, UK, Germany, Brazil, Turkey, Russia and HK such international Fairs.
Accepted payment terms: West Union, T/T, L/C and paypal. With fast delivery, 2-3days for samples and 5-10days for builk order.
Welcome to visit our factory, or contact us for more information and details, we look forward to more business opportunities with you!
