| Prod Model: |
mpm6861g |
| Measurement Range: |
0kpa~100kpa...10MPa |
| Accuracy: |
0.5%Fs |
| Outdoor Application: |
Transmitter with Indicator |
| Output Signals: |
4-20m ADC |
| Operation Temperature: |
-20c~70c |
| Storage Temperature: |
-30c~80c |
| Diaphragm: |
Ss316L |
| Pressure Range: |
0kpa~100kpa...10MPa |
Product Description

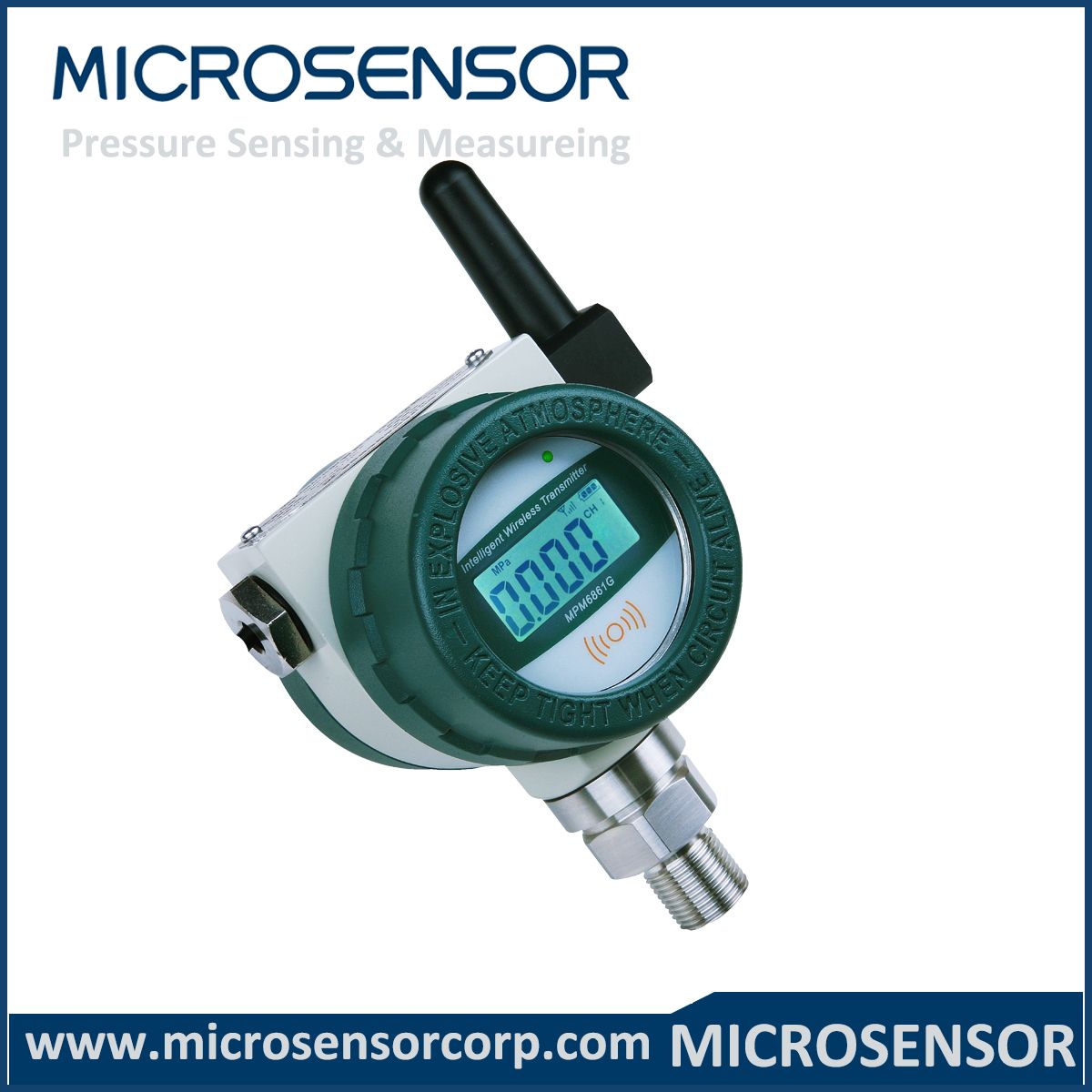

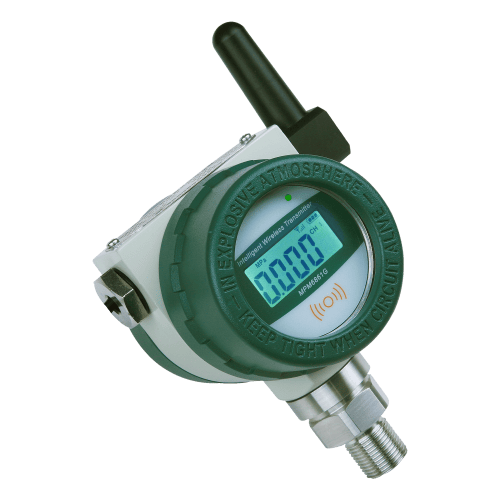

Wireless Pressure Transmitter for dam monitoring MPM6861G
Features- GPRS network
- LCD display
- Reverse power protection
- Threshold upper/lower limit alarm function;
- Automatic error correction, automatic reconnect while network is broken;
- Web terminal data checking and instrument remote configuration, support data-inquiry by mobile phone;
- Shock-proof, moisture-proof , adapt to the wild environment.
Introduction MPM6861G is an intelligent wireless pressure transmitter with low power consumption and wireless communication function. It uses advanced industrial MCU as processing core, high quality pressure sensor as sensing element. And it combines with industrial wireless GPRS data modules to achieve wireless transmission of data to the cloud by China Mobile mature GPRS network. Transmitter reports data according to the set intervals; and users can check data through Web page, upload and download data and save the data to database to facilitate the following inquiry. It is more intuitive, accurate and efficient through PC or mobile terminals access internet to acquire and analyze data as well as forming with report and data curve. Based on extensive public coverage of GPRS network, it can be used for real-time monitoring the actual data in a large scale such as water pipe network pressure, high pool level, detecting environmental parameters, hydrological monitoring etc.Specification
INPUTPressure Range: 0kPa~100kPa...10MPa
Power supply: Solar Power Supply/8~30VDC
Accuracy: ±0.5%FS
Pressure type: Gauge/ Absolute/Sealed Gauge
OUTPUTOutput signal: LCD display, GPRS wireless signal transmissionLong term stability: ±0.5%FS/year

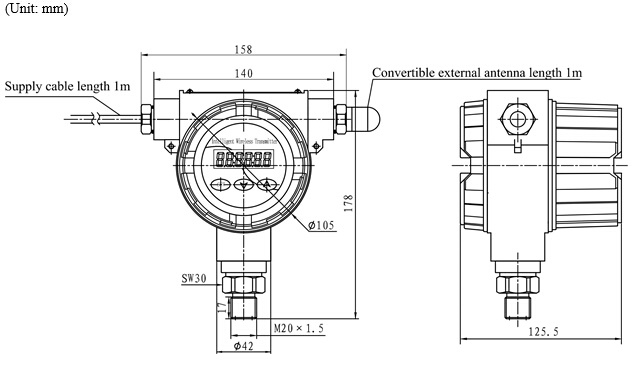

Environment ConditionsOperation temperature: -20ºC~70ºC Storage temperature: -30ºC~80ºCRelative humidity: 0%~95% Protection : IP67Vibration: ≤3g/10Hz...150Hz(IEC 60068-2-6-2007) EMC: GB/T 17626.2/4-2006 OTHERSDisplay: 6 digit 8 segment LCD Keyboard: 3 keysDiaphragm: stainless steel 316L Electrical connection: 2 core cable (power supply)Weight: ~1.6Kg Outline Construction (Unit: mm)
Electric ConnectionPressure transmitter is powered by two-core cable; cable electrical definition is shown as below:
| Wire No. | 1 | 2 |
| Wire color | Red | Black |
| Definition | +V | -V |
Order Guide| MPM6861G | Intelligent Wireless Pressure Transmitter | |
| | | Range | Measure Range 0kPa~100kPa…10MPa | |
| [0~X]kPa/MPa | X Actual Range | |
| | | Code | Pressure Type | |
| G | Gauge | |
| A | Absolute | |
| S | Sealed Gauge | |
| | | | Code | Antenna Type | |
| A | Internal Antenna (GPRS signal well only) | |
| B | External Antenna | |
| | | Code | Pressure Port | |
| C5 | M20×1.5 male, waterline seal | |
| | Code | Others | |
| | C1 | With SIM card | |
| | C2 | Without SIM card | |
| | | | |
| MPM6861G [0~10]MPa A B C5 C1 whole spec. | |
Order Notes:1. Please pay attention that the media shall be compatible with the contacted parts; 2. The basic range of absolute products minimum is 0.1MPa.3. The power supply connection cable standard length is 1m.4. When the product is used in thunder storm area, we suggest user to use protection device to protect the product and make sure well grounding;5. For special requirement, please feel free to contact us.
