Wireless Remote Bluetooth RGB RGBW LED Controller

Name: Wireless Remote Bluetooth RGB RGBW LED Controller
Brand: all-electronics-online.com
SKU: 800736185
Availability: InStock
Rating: 4.5 (144 reviews)

Price:	US $ 6.35-6.40/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-RGB
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Voltage:	12V
Material:	Plastic

Product Description

Basic Info

place of origin:	Shenzhen,China	Brand name:	louita	model number	LYD-RGB
TYPE:	smart phone control	voltage:	12-24v	Max.load power:	96w
application:	flexible led strip

Product Description

Bluetooth RGBW LED Controller is a universal RGBW type controlled via mobile phone.Adopting Bluetooth 4.0 technology and the most advanced PWM(pulse width modulation)control technique in nowadays. It is suited for all 4 channels with 5 wires (common anode)LED full color led products, such as LED strip, LED module, LED light box etc. It is easy to connect and use. Having memory and indicate light synchronous display function.Customer can change mode ,adjust brightness or speed via APP downloaded on mobile phone.Customer can get flash, fade or strobe etc kinds of dynamic light effect based on their actual demand.

Technical Parameters

RGBW:
Working temperature:-20~55ºC

Supply voltage:DC12V

Output:4Channel

Connection mode:Common anode

Controller size:L62×W35×H32mm

Net weight:330g

Static power consumption:<1W

Output current:<2A/CH

Output power:12V:<96W

RGB:

Working temperature:-20~55ºC
Supply voltage:DC12V
Output:3Channel
Connection mode:Common anode
Controller size:L62×W35×H32mm
Net weight:330g
Static power consumption:<1W
Output current:<2A/CH
Output power:12V:<72W

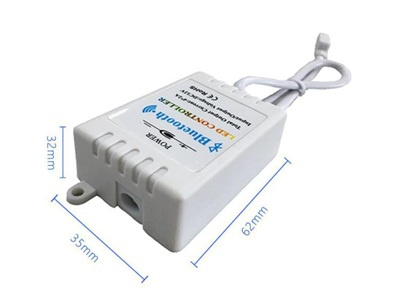

External Dimension
