| Prod Model: |
HW-MC202 |
| Item: |
Microwave Sensor with Housing |
| Model: |
Hw-Mc202 |
| Frequency: |
10.525GHz |
| Input Voltage: |
110V(60Hz)/220V(50Hz) |
| Output Voltage: |
110V(60Hz)/220V(50Hz) |
| Rated Load: |
1500W |
| Distance: |
10m |
| Delay Time: |
2s |
| Product Size: |
62*38*30mm |
| OEM: |
Available |
| Type: |
Microwave Sensor Switch |
| Wires: |
Two-Wires |
| Standard: |
Standard |
| Application: |
Corridor |
| Size: |
120 Type |
| Certification: |
CE |
| Principle: |
Doppler |
Product Description

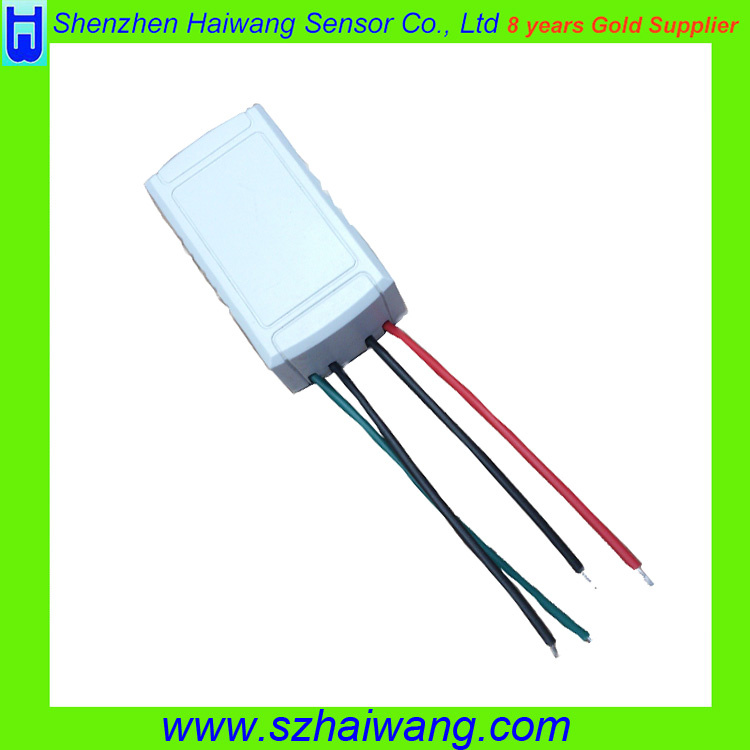

Wireless Switch Radar Motion Sensor Swicth for Outdoor Light
Specification
| Item | Microwave Motion Switch |
| Model | HW-MC202 |
| Size | 62*38*30mm |
| Frequency | 10.525GHz |
| Input Voltage | 110V(60Hz)/220V(50Hz) |
| Output Voltage | 110V(60Hz)/220V(50Hz) |
| Rated Load | 1500W |
| Distance | 10m |
| Delay Time | 2s |
| OEM | Available |
Working Principle
Based on the Doppler, HW-MC202 microwave motion switch can output the useful controllable electrical signals(H-1/L-0) after triggering the microprocessor to work once detected moving objects with the planar antennas which can transmit and receive the HF electromagnetic wave. It can work under 110V/220V.
Widely used in security monitoring, intelligent systems, control of lamps and lanterns, automatic doors, garage, corridor, roads, etc.
Features
1. Remote sensing, automatic control
2. Wireless switch, save the wiring
3. Easy to connect, high sensitive
4. Output by time, save electricity
5. Lightweight housing, high pratical
6. Sample connetion wired, convenient installtion
7 OEM is welcomed.
Notes
1. Voltage, current, distance, time and size can be customized.
2. Customized distance ranging from 1-20m; customized time ranging from 1-1000s. Others can consult our engineers.
3.The module has reserved CDS photo-resistance port that can be used in light control function. The default is "Repeating "
4.We suggest that you should use our regular products because we would charge extra fee on some customized projects. More details could talk with us.
