Shandong New Luxing Cable Co., Ltd. >> Wires Insulated Building Flexible PVC Electrical Wire and Cables Cable

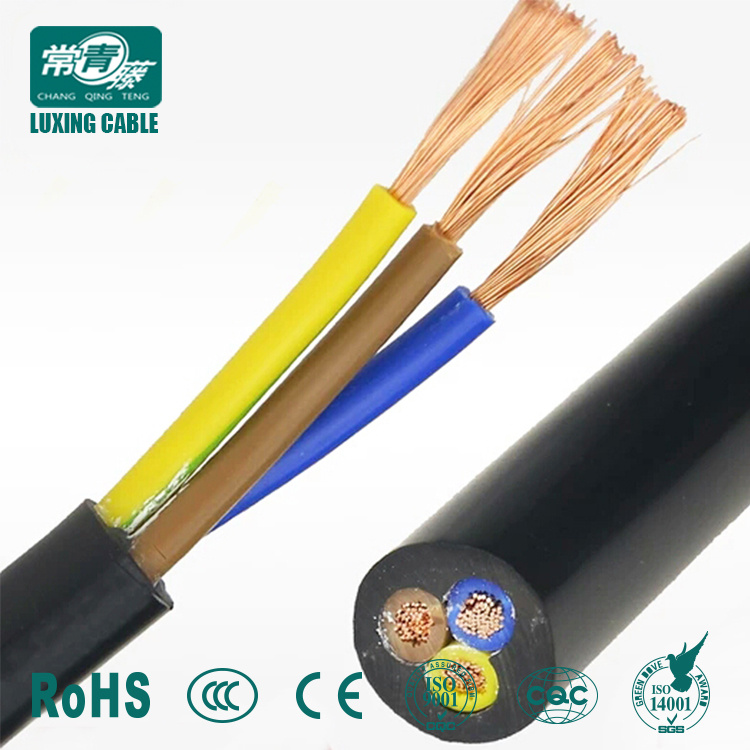

Wires Insulated Building Flexible PVC Electrical Wire and Cables Cable

Wires Insulated Building Flexible PVC Electrical Wire and Cables Cable
Price: US $ 0.1-1/Meter
Min Order: 100/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Insulated Building Wire And Cables
Product Nane: Insulated Building Wire and Cables
Rated Voltage: 300/500V 450/750V
Conductor: Copper / Aluminum
Insulation: PVC / XLPE
Certificates: ISO CCC Ce RoHS
Origine: Shandong China
Color: Red, Yellow, Blue, Green, Yellow/Green, Black etc
MOQ: 100 Meter
Packaging: 100 Meter Per Roll
Shipping: by Sea, by Train, by Air
Type: Insulated
Conductor Material: Copper
Insulation Material: PVC
Certification: GB/T Standard
Conductor Type: Solid / Stranded
Application: Fixed Wire
Sheath Material: Non
Range Of Application: Lsoh / Flame -Retardant
Brand: Chanong Qing Teng

Product Description

ITEM NAME : Wires Insulated Building Flexible Pvc Electrical Wire And Cables Cable



H03VV-F Application Scope

Available for external & internal wiring of electrical instrument, power device & automatic
device without forcible traction. Without direction, at times for movable wiring.



H03VV-F Cable Structure

Conductor:Stranded bare copper or tinned copper in accordance with VDE 0281 Part 5,HD21.5S3 IEC 227-5

Insulation:PVC/TI2 PVC in accordance with DIN VDE 0281.

Color ID:In accordance with HD 402 Standard

Jacket Material:PVC/TM2 PVC

Application Standard:  HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,
CE Low voltage 73/23/EEC & 93/68/EEC



H03VV-F Features & Conformity

Features : Super fine conductor, flexible for small bending angle .
Durable for certain external mechanical forces

In accordance with EU coordination standard

Conformity Approval : RoHS   CE


H03VV-F Technical Parameter

Rated Voltage:2000V In accordance with DIN VDE 0281 Part 2 HD21.2

Min. bending Radius

Fixed Installation:  5×D(Cable OD)

Movable Installation:  8×D(Cable OD)


Temperature Range

Fixed Installation:  -20 to +70°C

Movable Installation:  -5 to +70°C

wires and cables


Luxing Cable Factory Mainly Produce

300/500V 450/750V electrical wire AAC conductor
600/1000V PVC insulated cableAAAC conductor
600/1000V XLPE insulated cableACSR conductor
1.8/3KV to 26/35KV power cable OPGW
Armored underground cableABC cable
Control cable and instrumentation cables Rubber cable

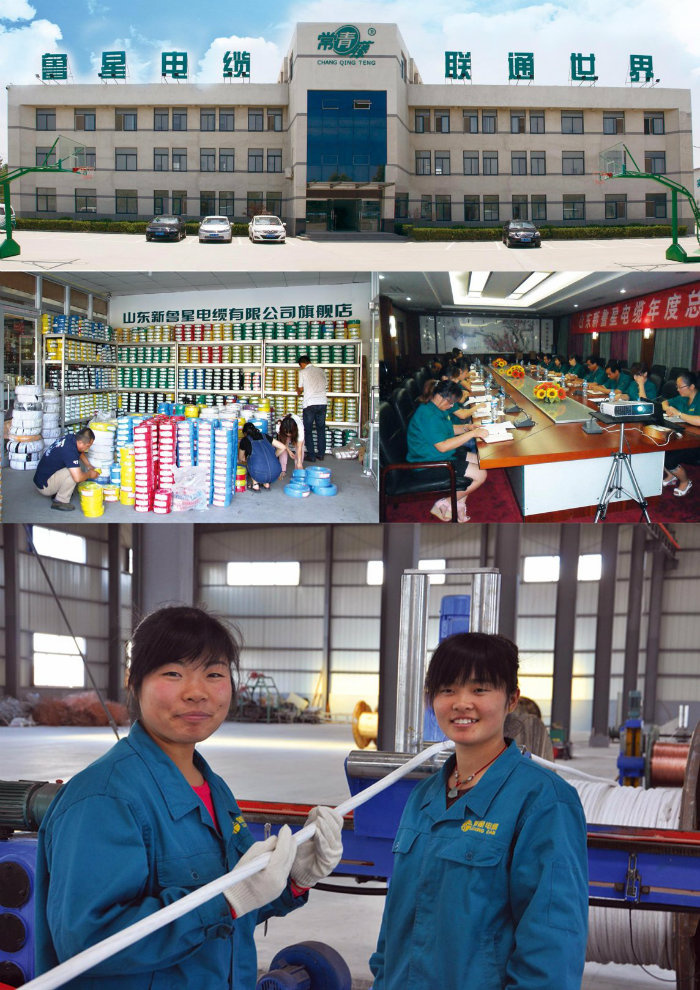

Factory Production Base

Customer Visiting



Why choose us?

1. Advanced process equipment

2. Competitive price and high quality

3. Excellent after-sale service

4. Attractive design and various styles

5. Powerful technology R&D team

6. Strict quality assurance system and perfect testing means

7. Advanced process equipment

8. Delivery on time

9. Have a good reputation in the domestic and overseas.


Contact us

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
