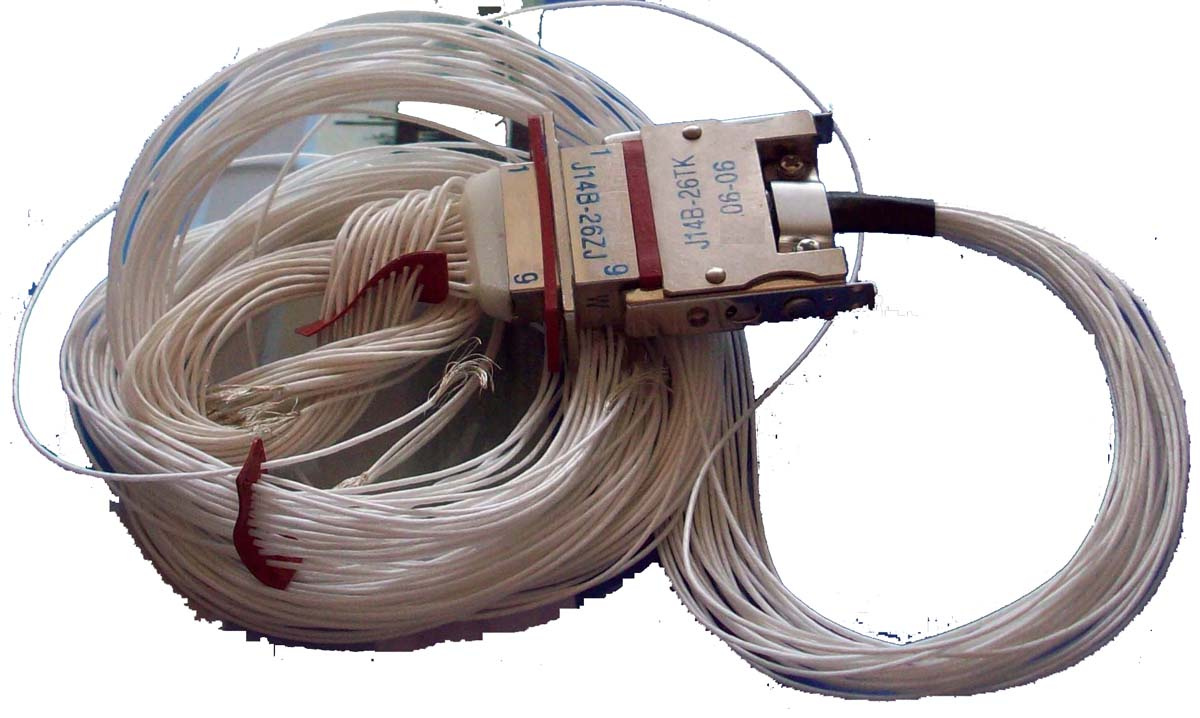

Wires Soldered J14b Series Military Rectangular Connectors

Name: Wires Soldered J14b Series Military Rectangular Connectors
Brand: all-electronics-online.com
SKU: 649451615
Availability: InStock
Rating: 4.3 (127 reviews)

Price:	Negotiable/Piece
Trade Terms:	4 WEEKS
Min Order:	5/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	J14B

Product Description

The series of connectors have the characteristics of double safety locking mechanisms, of novelty in structure, of diversity in sizes. They also have the little volume and high reliability. So they are suitable for the connections of the instruments and cables.
1. Service conditions
Operating Temperature range: -55- +125oC
Relative humidity: Up to 90%- 95% at 40+2, -2oC
Atmospheric pressure: 101.3kPa- 1.33Pa
Vibration:
196m/s2 from 10- 2000Hz
Shock: 980m/s2
Acceleration: 780m/s2
2. Main feature
Current rating: (As the table)
Contact resistance:
Less than 0.006 ohm in normal conditions
Less than 0.010 ohm after aging test
Insulation resistance:
2000 megohms in normal conditions
1000 megohms in hot conditions
20 megohms in wet conditions
Dielectric withstanding voltage:
800V in normal conditions
250V in low atmospheric pressure
Durability: 500 cycles

Type		Number of contact	L	A	B	C	D	E	d	Mount height	weight(g)		Current rating
Type		Number of contact	L	A	B	C	D	E	d	Mount height	Pin	Hole	Current rating
J 14B -n	TK TJ ZKB ZKL ZJL ZJB	9	22	6.6	15.2	12	28	17	3	42	11.7	4.3	3A
		15	28	6.6	21.2	12	34	23	3		13	5.3	3A
		26	34	10	25	16	41	28.2	3.5		24	10	3A
		38	42	10	33	16	49	36.2	3.5		28	14.6	3A
		51	52	10	43	16	59	46.1	3.5		31	15	3A
		62	58	10	49	16	65	52.2	3.5		34	15.6	3A
		74	54	12	45	18	61	47.4	3.5		35.7	17	3A
J 14C -n		26	42	10	33	16	49	36.2	3.5		27	13	5A
J14D-n		15	34	10	25	16	41	28.2	3.5		22	10.5	2: 10A 13: 3A
J 14G -n		8	34	10	25	16	41	28.2	3.5		20	9.5	4: 10A 4: 3A
