| Prod Model: |
Flanges fabricated thermocouple |
| Theory: |
Temperature Sensor |
| Probe Dia: |
0.5mm to 10mm/ Can Be Customized |
| Max Temperature: |
1600c |
| Lead Wire Insulation Material: |
Stainless Steel/ Brass/ Aluminum Alloy |
| Connection: |
Female |
| Electrical Connector: |
Cable, Water-Proof Metal Case, Explosion-Proof Met |
Product Description
WRE-320 330 321 331 Flanges fabricated thermocouple 0--1300C K/RTD type temperature sensor
Product Description
K type thermocouple:
It has a variety of advantages, such as: easy assembly and convenient for replacement, high mechanical strenghth, good pressure-resistant, good shock-proof permance.
It is usually connected with displaymeter, recording meter and computer, etc. To directly measure temperature of liquid, vapor,
gas and solid surface ranging from 0 °C to 1300 °C during various production processes. Besides, it widely measuring range.
Setting device 1 Non-fixed setting device
2 Fixed thread setting device
3 Flexible flange setting debice
4 Fixed flange setting device
5 Flexible flange setting device angle square setting device
6 taperd fixed thread setting device
WRN / WRE series No fixtures thermocouple, Assembly Thermocouple
WRN / WRE series No fixtures thermocouple, Assembly Thermocouple, Temperature Sensor, K type thermocouple, E type thermocouple
Name | Model | Installation | No indexing | Protection tube material | Diameter | Temperature range |
Ni-Cr - Ni-Si Thermocouple | WRN-120 | No fixtures | K(EU-2) | 1Cr18Ni9Ti | Φ16mm | 0~1100ºC |
-130 |
WRN-121 | Φ20mm |
-131 |
WRN-122 | High alumina protection tube | Φ16mm | 0~1300ºC |
WRN-123 | Φ20mm |
Ni-Cr - constantan Thermocouple | WRE-120 | E(EU-2) | 1Cr18Ni9Ti | Φ16mm | 0~900ºC |
-130 |
WRE-121 | Φ20mm |
-131 |
WRE-122 | High alumina protection tube | Φ16mm |
-123 | Φ20mm |
WRP-120 130 121 131 320 330 321 331 Platinum Rhodium 10 - Platinum Thermocouple, S-type thermocouple
WRR-120 130 121 131 320 330 321 331 Platinum Rhodium 30 - Platinum Thermocouple 6, B-type thermocouple
WRN-120 130 121 131 122 123 No fixed assembly thermocouple, K type thermocouple, nickel chromium - nickel silicon thermocouple
WRE-120 130 121 131 122 123 No fixed thermocouple assembly, E-type thermocouple, NiCr - constantan thermocouple
WRN-220 230 221 231 Thermocouple assembly screws, K type thermocouple, nickel chromium - nickel silicon thermocouple
WRE-220 230 221 231 Thermocouple assembly screws, E-type thermocouple, NiCr - constantan thermocouple
WRN-320 330 321 331 Flanges fabricated thermocouple, K type thermocouple, nickel chromium - nickel silicon thermocouple
WRE-320 330 321 331 Flanges fabricated thermocouple, E-type thermocouple, NiCr - constantan thermocouple
WRN-420 430 421 431 Mounting flange assembly type thermocouple, K type thermocouple, nickel chromium - nickel silicon thermocouple
WRE-420 430 421 431 Mounting flange assembly type thermocouple, E-type thermocouple, NiCr - constantan thermocouple
WRN-520 530 Right angle thermocouple assembly, K type thermocouple, nickel chromium - nickel silicon thermocouple
WRN-620 630 Thermocouple fixed threaded cone assembly, K type thermocouple, nickel chromium - nickel silicon thermocouple
WRE-620 630 Thermocouple fixed threaded cone assembly, E-type thermocouple, NiCr - constantan thermocouple
WRN-140 141 240 241 440 441 Explosion-proof Thermocouple, K type thermocouple, nickel chromium - nickel silicon thermocouple
Thermocouple assembly, nickel chromium - nickel silicon thermocouples, nickel chromium - constantan thermocouple, K type thermocouple, E-type thermocouple, S-type thermocouple, B-type thermocouple, explosion-proof Thermocouples, flameproof thermocouple.
MODEL:
| ame | Model | Type | structural feature |
| Spring thermocouple | WRET-01 | E(EA-2) | Fixed screw thread |
| WRNT-01 | K(Eu-2) | Imitation imports E,K J inch thread |
| Screw thermocouple | WRET-02 | E(EA-2) | Fixed screw thread |
| M6*1 M8*1 |
| WRNT-02 | K(Eu-2) | Imitation imports E,K J inch thread |
| Probe thermocouple | WRET-03 | E(EA-2) | Fixed screw thread |
| M12*1 |
| WRNT-03 | K(Eu-2) | Fixed screw thread |
| Thermocouple lead, thread size can be customized according to your design to produce, temperature rang is 0ºC-800ºC |
| Thermocouple & rtd |

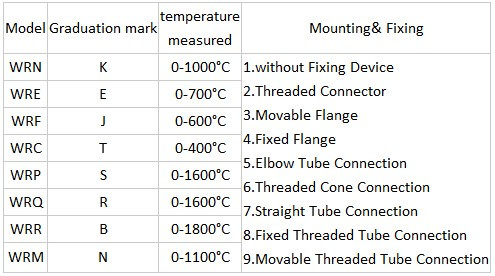

| Ref No. | WR | Temp |
| Thermal element materials | B: PtRh30-Pt6
R: PtRh13-Pt
S: PtRh10-Pt
N: NiCrSi-NiSi
K: NiCr-NiSi
E: NiCr-CuNi
J: Fe-CuNi
T: Cu-CuNi | 0~1600C
0~1300C
0~1300C
0~1000C
0~900C
0~600C
0~500C
0~350C |
| Ref No. | WZP | Temp |
| | PT100
PT1000
CU50 | -200~+650C
-200~+650C
-200~+650C |
| Pairs quantity of sensor wire | Simplex
Duplex |
| Ways of Mounting & Fixing | 1:without fixing device
2:fixed thread
3: movable flange
4: fixed flange
5: right-angle movable flange
6:fixed thread in wimble shape protection tube |
| Types of connections box | 2: anti-spray (Protection class: IP65)
3: water-proof (Protection class: IP55) |
| Types of sensor end | G: variable section
K: sheathed elements
T: flexible sheathed elements |
| Diameter of protection tube | 0:¢16
1:¢20
2:¢16 high aluminum material
3:¢20high aluminum material |
| Measuring range | 0~1600 degree Celsius |
| Shipping | By air, sea, express |
| Sample time | 2~7 days |
| Manufacture time | 7~30 days depending on order quantity |

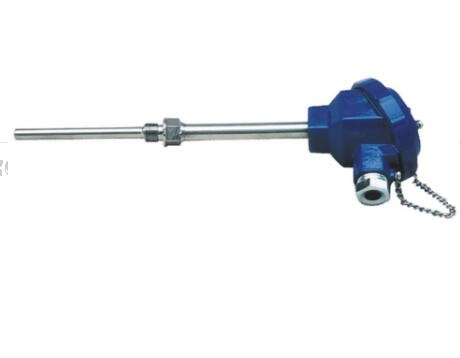

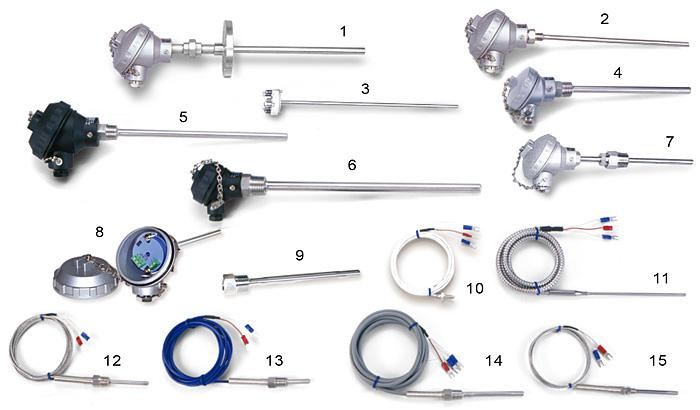

Detailed Images:
