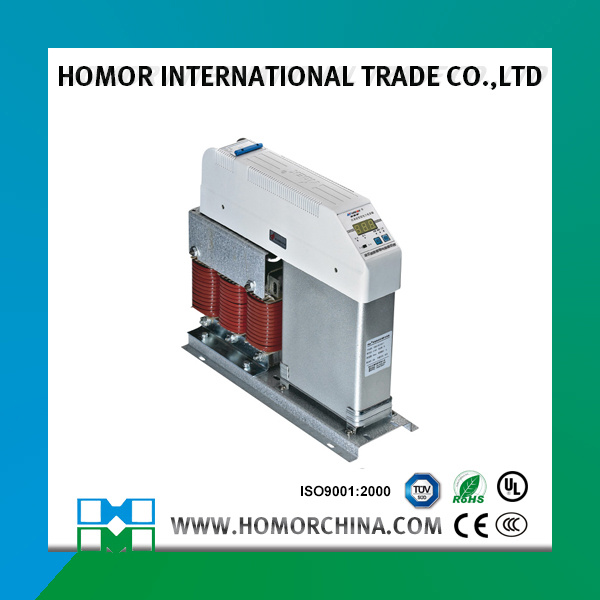

Wsk Series Intelligent Anti-Harmonice Power Capacitor
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
WSK |
| Type: |
Polypropylene Capacitor |
| Application: |
Power |
| Package Type: |
Through Hole |
| Capacitance: |
5-40kvar |
Product Description
Product introductionWSK(X) intelligent integrated low-voltage filter capacitor (hereinafter referred to as capacitor) is designed for the consideration that the ordinary power capacitor cannot work normally when there is a certain quantity of harmonic in the power grid. The main features are as follows:High-quality industrial low-voltage power capacitor with oil-free design and high security level;Switch with no inrush current, which is advanced in technology, and steady and reliable in performances;Closed-loop circuit, unsaturated magnetic circuit, no energy consumption, no electromagnetic radiation;Special technology and process can suppress high harmonic and inrush current effectively, and it can obviously suppress triple, septuplet, quintuple and ninefold harmonics or more;Modulized structure, flexible combination, convenient expansion, easy installation and maintenance;Intelligent network and 485 communication interface can be connected with the background computer for the power distribution integrated management;Decentralized control mode, 200 thousand times failure-free switching, high reliability;Humanistic man-machine interface is convenient to operate and maintain and useful for field failure search;Built-in SH explosion-proof device and temperature control device improve the operation reliability where there is severe harmonic;Excellent energy efficiency improves the power factor, reduces the electrical power consumption and improves the power quality. WSK(X) intelligent integrated low-voltage filter capacitor is mainly used at the places with the harmonic current lower than 40% (e.g. frequency converter). It can not only satisfy the reactive compensation and improve the power factor, but also eliminate the effect of high harmonic to the system and improve the electricity quality.The main functionFunction of filterThe function can suppress high harmonic and inrush current effectively, and provide a low impedance access for the high harmonic. It can absorb and discharge the harmonic, and eliminate the effect of high harmonic to the capacitor, protect the circuit and capacitor against overload, and protect the capacitor against over-heat, the insulating dielectric against aging, the self-healing performance and the service life from impairing.No inrush current switchingSupported by the switch of special capacitor, no inrush current during switching.Single phase compensationAs for the single phase compensation product, the capacitor of each phase can be switched respectively, which improves the reactive compensation accuracy and compensates the three-phase reactive unbalance well.Measurement functionIt measures the distribution voltage, current, reactive power, and power factor; automatically measures and correct CT's phase position and change, and measures three-phase current and inside temperature.Protection functionIt owns quick switching and over-current protection for the loop current, over-voltage and under-voltage protection for the capacitor, over temperature, open-phase and three-phase unbalance protection for the capacitor, and when the capacitor temperature exceeds 65ºC , the whole capacitor is protected to exit operation, which prolongs the service life and guarantees the safe operation of the system.Signal functionSignals of switching condition, over- and under-compensation condition, over- and under-voltage condition; signals of protective action and self-diagnosis failure.Communication functionThe capacitor is connected with the controller by RS-485, which is used to upload a large number of sampling data to exchange information with the peripheral monitor terminal, and to form the system.Online functionIt owns wired network communication and wireless network communication.Technical parameterAmbient conditionsAmbient temperature:-25~55ºC;Relative humidity:40ºC,20~90%;Altitude: ≤ 2000m(Please indicate if other than this range)Power sourceRated voltage:~220V/~380V (other voltage may be realized)Voltage deviation: ± 20%Voltage wave: sine wave, total distortion rat not more than 7%;Rated frequency: 50Hz ± 5%;Power consumption : <2W.Electric SafetyAll the electric clearance and creep age distance, insulation strength, safety protection, short circuit strength, sampling and control circuit complies to related regulation of DL/T842-2003 "Specification of Low Voltage Shunt Capacitor Installation for Operation".Measurement accuracyVoltage: ≤ 0.5% (within 80%~120% rated voltage)Current: ≤ 1% (within 5%~20% rated current)≤ 0.5%within 20%~120% rated current)Power factor: ±1.5%;Temperature: ±1ºC ;Protection accuracyVoltage: ≤ 0.5%; Current: ≤ 1.0%;Temperature: ±1ºC; Time:±0.01sParameter of reactive compensationCapacitor's switching interval: >10s (1S~10S can be custom-made);Reactive capacity: three-phase compensation ≤ 40kvar, single-phasecompensation ≤ 20kvarNumber of on-lines: ≤ 32setsParameter of reliabilityControl accuracy: 100%;permissible switching number: 200,000 timesCapacitance operation time decay rate: ≤ 1%/yearCapacitance switching decay rate: ≤ 0.1%/10000 timesAnnual fault rate: ≤ 0.1%Hybrid capacitor compensation controller and intelligent wiring diagram

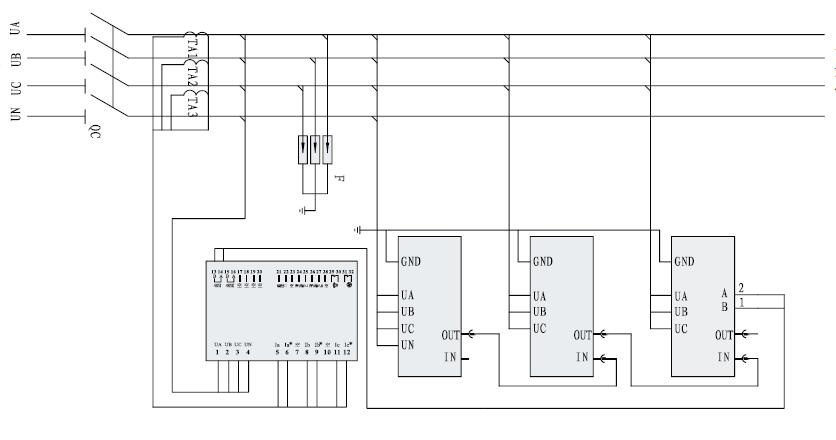

Three-phase controller and make intelligent capacitor wiring diagram
HOMOR(hemao) in Chinese means Gracious & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and have gained good reputation in the market.
HOMOR specialize in manufacturing high quality power capacitor like BSMJ/BKMJ power capacitor, CBB60 motor running capacitor, CBB65 motor running capacitor, . To improve our research and high technology ability, we cooperated with China Electronics Technology Group which was Located in Beijing in 2011, now we have established PCB & electronic research center and advanced testing lab.
HOMOR is growing fast through year's great effort, . We are working with reliable distributors with online & offline network throughout China. We look forward to expanding our business with new agent and customer for our mutual benefit with each other.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
In strict accordance with GB/T12747-2004, IEC60831-1: 1996 Standard, its main products have gained the CE, CQC, CCC, UL certificate. Our capacitor has sales branches and distributors throughout China, and exports to more than ten countries including the United States, Canada, Brazil, Argentina, Russia, Bangladesh, South Korea, Malaysia and Singapore. Our capacitors are well-received by overseas users and has gained both economic and social benefits.
