XLPE Cable 500mm2/500mm Cable/500mm Electric Cable

Name: XLPE Cable 500mm2/500mm Cable/500mm Electric Cable
Brand: all-electronics-online.com
SKU: 837066935
Availability: InStock
Rating: 4.3 (106 reviews)

Price:	US $ 30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	VV, RVV, KVV, YJV.
Product Name:	XLPE Cable 500mm2/500mm Cable/500mm Electric Cable
Number Of Cores:	Single/2/3/4/5/6/7/8/10/16 Core...
Rated Voltage:	0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10(15)Kv,12/
Cross Section Area/Measure:	3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4
Standard:	IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 5023-
Conductor:	Stranded/Solid/Flexible Copper/Aluminum Conductor
Insulation:	XLPE/PVC/PE/Pur
Aplication:	Electric, House Wire, Building Wire...
Shield:	Copper Wire Screen(Cws), Aluminium Wire Screen(Aws
Armoured:	Steel Tape Armoured (Sta) or Steel Wire Armoured (
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	VDE
Model:	VV,Yjv...
Brand:	Chang Qing Teng

Product Description

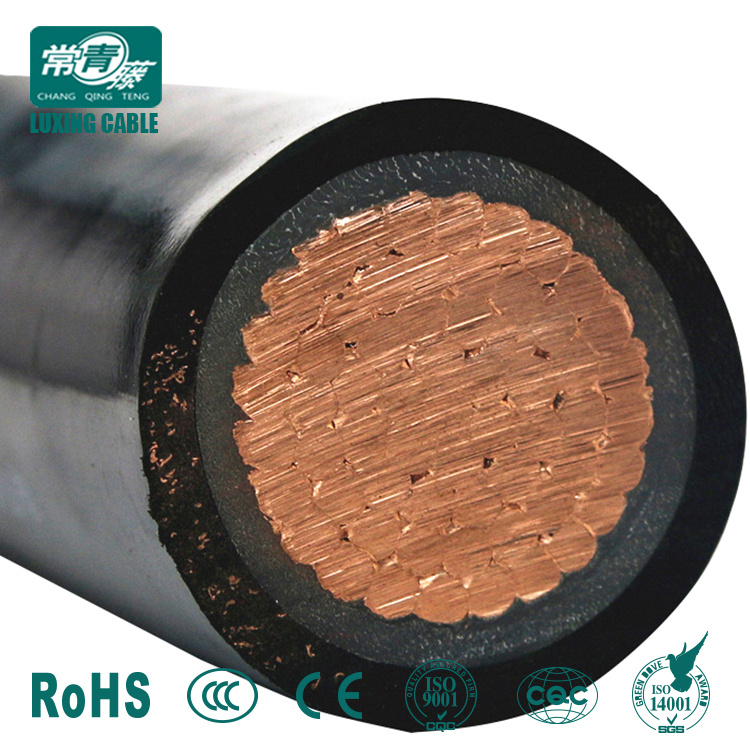

xlpe cable 500mm2/500mm cable/500mm electric cable

Product Description

xlpe cable 500mm2/500mm cable/500mm electric cable

APPLICATIONS of 220kv xlpe cable

These single core cables are designed for distribution of electrical power with nominal voltage 127/220kV. They are suitable for installation mostly in
power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries,
switchboards and power stations.

Standard of 220kv xlpe cable

IEC 62067

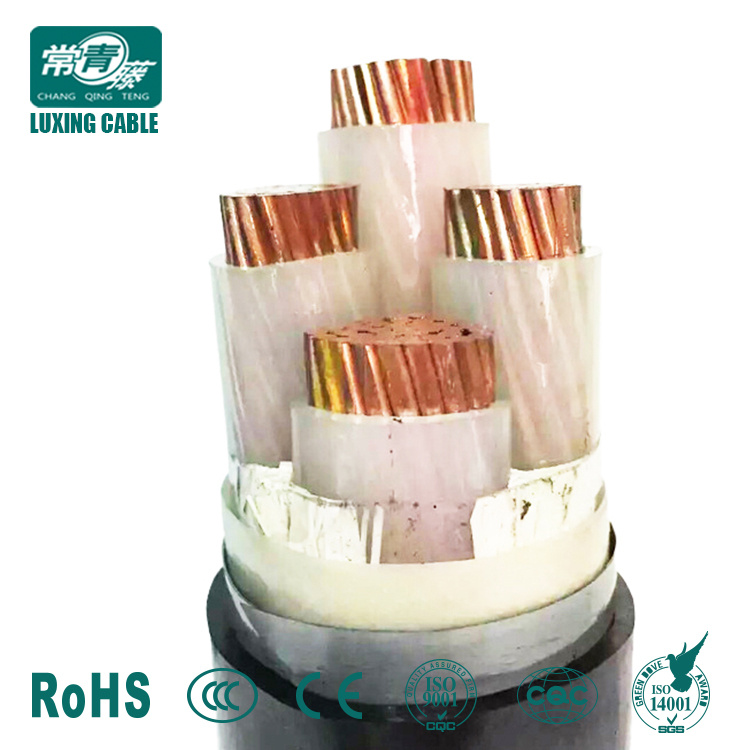

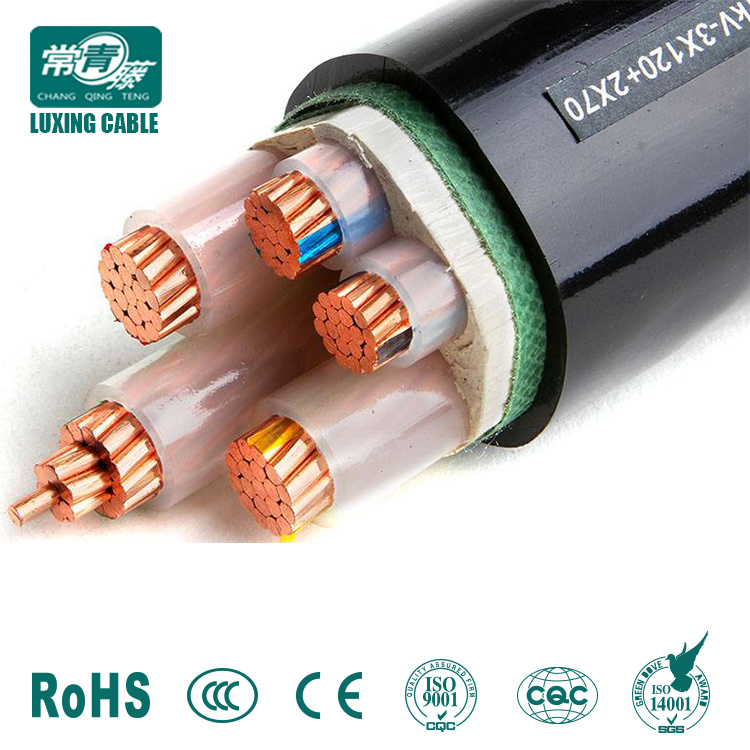

CONSTRUCTION of 220kv xlpe cable

Conductor of 220kv xlpe cable

The cable conductors can be made of copper or aluminium, depending on customer's preference or current carrying capacity. Large size solid
conductors are made of aluminium. Available constructions including: round solid conductors up to 2000mm² (RE); circular stranded compacted
conductors up to 1200mm² (RM); circular conductors with shaped wires up to 2000mm² (RM, Keystone conductors); segmental conductors up to
2500 mm² (RMS, Milliken conductors); oval shaped stranded compacted conductors up to 800mm² for external gas pressure cables (OM).

Conductor Screen of 220kv xlpe cable

Extruded layer of semi-conducting cross-linkable compound is applied over the conductor and shall cover the surface completely.

Insulation of 220kv xlpe cable

Insulation is of cross-linked polyethylene compound XLPE.
Insulaton Screen of 220kv xlpe cable

Extruded layer of semi-conducting cross-linkable compound is applied over the insulation.

Metallic Layer of 220kv xlpe cable

The metallic layer may be applied over the core assembly collectively. The metallic screen shall consist of either copper tapes or a concentric layer
of copper wires or a combination of tapes and wires.
Separation Sheath of 220kv xlpe cable

Aluminum Tape sheath
Outer Sheath of 220kv xlpe cable

Certifications

ISO9001/14000 CCC CE IEC BS EN VDE

Contact:

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
