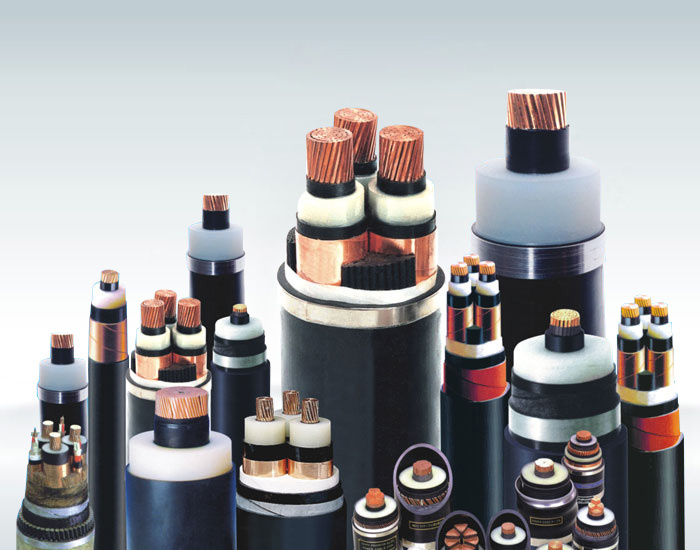

XLPE Insulated and PVC Sheathed Low Voltage Power Cable

Name: XLPE Insulated and PVC Sheathed Low Voltage Power Cable
Brand: all-electronics-online.com
SKU: 756843085
Availability: InStock
Rating: 4.3 (47 reviews)

Price:	US $ 0.5-20/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SHUA0010
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Voltage:	High Voltage Cable
Insulation Material:	PVC
Current:	AC Cable
Application:	Telecommunication
Certification:	CE
Brand:	Shua

Product Description

high voltage 10kv 15kv 25kv 11kv 110kv power cable

high voltage 10kv 15kv 25kv 11kv 110kv power cable
Specifications
1.SWA armoured cable
2.Voltage:0.6/1KV
3.Size:1.5-300mm2
4.Competitive price

Specifications
1.Competitive price,good payment
2.High quality conductor ,PVC or XLPE insulation
3.60 years OEM
4.Free sample and desgin

Cable Instruction:
Specification: Copper/Aluminum Conductor PVC/XLPE Insulated PVC Sheathed Cable
Standard: IEC60502, BS6346
Voltage: 0.6/1KV,
Conductor: Copper/Aluminum Conductor
Insulation: PVC/XLPE Insulated
Application: For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces, single core cable in magnetic duct is not permissible.
Package: Wooden Drum Package or Iron-wooden drum
Standard Data

Type	Discription	Rated Voltage (KV)	Number of cores	Nominal Cross-sectional Area (mm2)
Type	Discription	Rated Voltage (KV)	Number of cores	Cu	Al
VV/YJV VLV/YJLV	VV/YJV: Copper conductor PVC/XLPE insulated and PVC sheathed powercables. VLV/YJLV: Aluminium conductor PVC insulated and PVC sheathed power cables.	0.6/1KV	1	1.5~1200	2.5~1200
			2	1.5~300	2.5~300
			3	1.5~300	2.5~300
			4	1.5~300	2.5~300
			5	1.5~300	2.5~300
			3+1	1.5~300	2.5~300
			3+2	1.5~300	2.5~300
			4+1	1.5~300	2.5~300
VV22 / YJV22 VLV22 / YJLV22	VV22/YJV22 : Copper conductor PVC insulated and PVC sheathed steel tap armoured power cables. VV22/YJV22 : Aluminium conductor PVC insulated and PVC sheathed steel tap armoured power cables.	0.6/1KV	1	10~500	10~500
			2	1.5~300	2.5~300
			3	1.5~300	2.5~300
			4	1.5~300	2.5~300
			5	1.5~300	2.5~300
			3+1	1.5~300	2.5~300
			3+2	1.5~300	2.5~300
			4+1	1.5~300	2.5~300
VV32 / YJV32 VLV32 / YJLV32	VV32/YJV32 : Copper conductor PVC insulated and PVC sheathed steel wire armoured power cables. VLV32/YJV32 : Aluminium conductor PVC insulated and PVC sheathed steel wire armoured power cables.	0.6/1KV	1	50~500	50~500
			2	35~300	50~185
			3	25~300	35~300
			4	25~300	35~300
			5	25~240	35~240
			3+1	25~300	35~300
			3+2	25~300	35~300
			4+1	25~240	35~240

Packaging&Shipping
Wood drum,steel reinforce wood drum;

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
