XLPE Insulated Armoured Cable, Underground Cable

Name: XLPE Insulated Armoured Cable, Underground Cable
Brand: all-electronics-online.com
SKU: 731782952
Availability: InStock
Rating: 4.7 (56 reviews)

Price:	US $ 0.3-1/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Underground Cable
Normal Sectional Area:	1.5-800mm2
Armoured:	Steel Tape Armoured,Steel Wire Armoured
Standard:	IEC, BS, VDE, GB/T
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	RoHS
Model:	BS5467 Cable
Brand:	Luxing Cables

Product Description

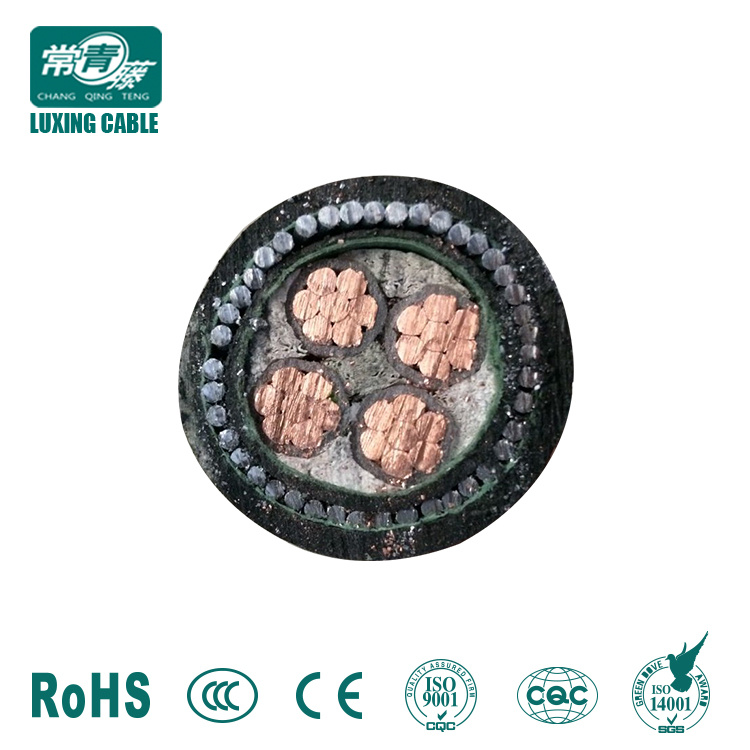

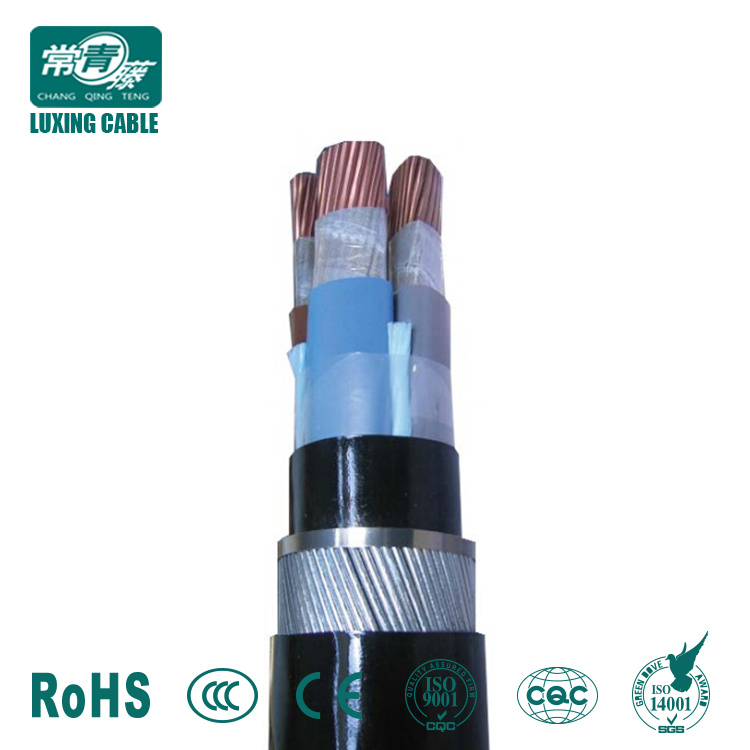

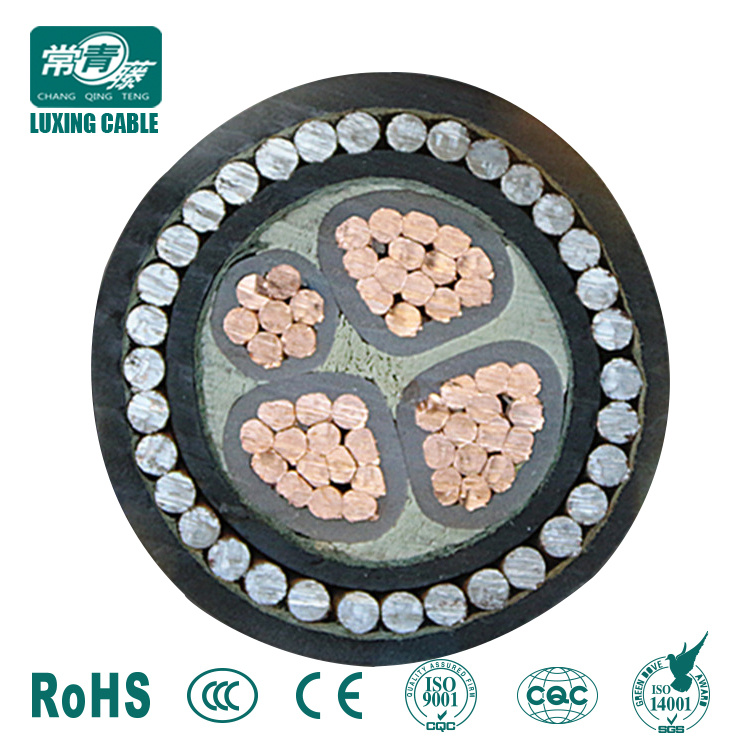

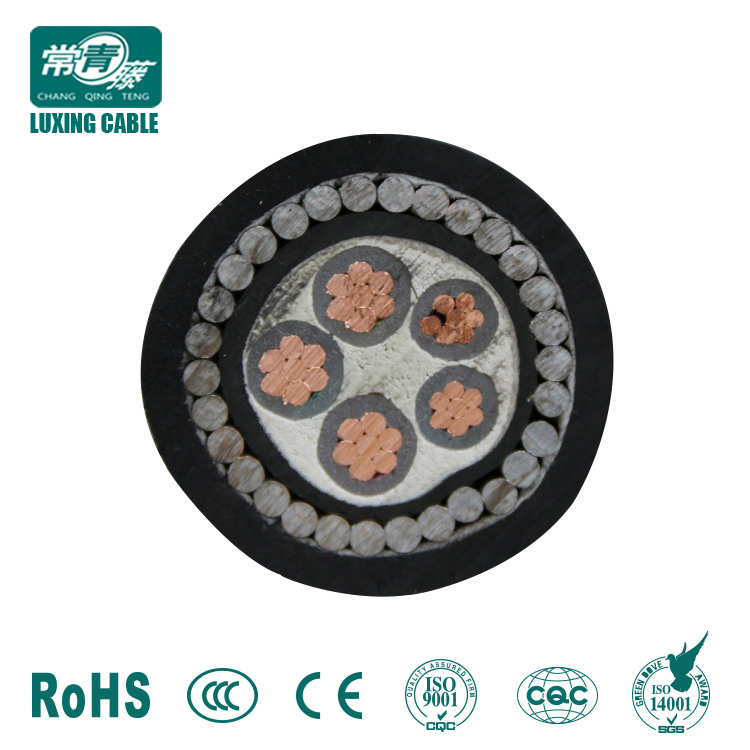

XLPE insulated armoured cable, Underground Cable

Applications:

Power cable suitable for power networks, direct burial, outdoors, indoors and in cable ducts.

Conductors: Plain annealed stranded copper

Insulation: XLPE (Cross linked polyethylene)

Bedding: PVC (Polyvinyl-Chloride)

Armour/Protection: SWA (Galvanised single wire armour)

Sheath/Jacket: PVC (Polyvinyl-Chloride)

Colour: Black

Voltage: 600/1000v

Operating temperature: Maximum 90°C. Minimum bending 0°C

Minimum bending radius:

1.5 sq.mm - 16 sq.mm -6 x overall diameter (circular cond.)

25 sq.mm and above - 8 x overall diameter (shaped cond.)

Core identification:

Two Core - Brown, Blue

Three Core - Brown, Black & Grey (Optional: Brown, Blue & Green/Yellow)

Four Core - Brown, Black, Grey & Blue (Optional: Brown, Black, Grey & Green/Yellow)

Five Core - Numbered Cores (Optional: Brown, Black, Grey, Blue + Green/Yellow)

Six Core and Above - Numbered Cores (optional numbered + Green and Yellow)

Conductor stranding:

Class 2 stranded copper:

2 circular or circular compacted conductors

2* shaped or circular conductors or circular compacted conductors.

2S shaped conductors

(Dimensions and weights based on circular)

Standard:

BS5467: Electric cables. Thermosetting insulated, armoured cables for voltages of 600/1000V and 1900/3300V

IEC60502: Power cables with extruded insulation and their accessories for rated voltages from 1kV to 30kV

Flame Propagation Test to BS EN 60332-1-2 for single cable

Note:If you are considering installing in high UV exposure and/or high/low ambient temperatures i.e. desert/arctic conditions
then special sheathing may be required

TWO CORE:BS5467 Cable, CU/XLPE/SWA/PVC CABLE

Size Sq.mm	Class Of conductor	Max. diameter over conductor mm	insulation Thickness	Diameter over core mm	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	1.59	0.6	3.0	0.8	7.7	0.9	9.6	12.3	300
2.5	2	2.01	0.7	3.4	0.8	8.5	0.9	10.4	13.6	360
4	2	2.55	0.7	4.0	0.8	9.7	0.9	11.6	14.7	420
6	2	3.12	0.7	4.5	0.8	10.7	0.9	12.6	15.9	500
10	2	4.05	0.7	5.5	0.8	12.7	0.9	14.6	18.0	650
16	2	5.10	0.7	6.5	0.8	14.5	1.25	17.0	20.0	910
25	2*	-	0.9	-	0.8	18.4	1.25	20.9	24.1	1060
35	2*	-	0.9	-	1.0	21.3	1.6	24.5	27.9	1480
50	2S	-	1.0	-	1.0	19.0	1.6	22.2	25.8	1800
70	2S	-	1.1	-	1.0	22.0	1.6	25.2	29.0	2300
95	2S	-	1.1	-	1.2	25.1	2.0	29.1	33.1	3170
120	2S	-	1.2	-	1.2	27.9	2.0	31.9	36.1	3800
150	2S	-	1.4	-	1.2	30.9	2.0	34.9	39.3	4500
185	2S	-	1.6	-	1.4	34.9	2.5	39.9	44.7	5800
240	2S	-	1.7	-	1.4	39.0	2.5	44.0	59.0	7280
300	2S	-	1.8	-	1.6	43.3	2.5	48.3	53.5	8750
400	2S	-	2.0	-	1.6	48.4	2.5	53.4	59.0	10700

THREE CORE: BS5467 Cable, CU/XLPE/SWA/PVC CABLE

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	8.2	0.9	10.1	12.8	341
2.5	2	0.8	9.1	0.9	11.0	14.1	405
4	2	0.8	10.4	0.9	12.3	15.3	495
6	2	0.8	11.5	0.9	13.4	16.6	600
10	2	0.8	13.7	1.25	16.4	19.5	900
16	2	0.8	15.5	1.25	18.0	21.2	1080
25	2*	1.0	20.1	1.6	23.3	26.7	1750
35	2*	1.0	22.8	1.6	26.0	29.6	2100
50	2S	1.0	21.7	1.6	24.9	28.5	2350
70	2S	1.0	25.2	1.6	28.4	32.2	3150
95	2S	1.2	28.8	2.0	32.8	37.0	4300
120	2S	1.2	32.0	2.0	36.0	40.4	5250
150	2S	1.4	35.9	2.5	40.9	45.5	6720
185	2S	1.4	40.0	2.5	45.0	49.8	8040
240	2S	1.4	44.9	2.5	49.9	55.1	10150
300	2S	1.6	49.8	2.5	54.8	60.2	12320
400	2S	1.6	55.4	2.5	60.6	66.6	15090

FOUR CORE: BS5467 Cable, CU/XLPE/SWA/PVC CABLE

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	9.0	0.9	10.9	13.5	390
2.5	2	0.8	10.0	0.9	11.9	15.0	465
4	2	0.8	11.5	0.9	13.4	16.4	579
6	2	0.8	12.7	0.9	15.3	18.7	820
10	2	0.8	15.1	1.25	17.6	21.1	1090
16	2	0.8	17.2	1.25	19.7	22.9	1400
25	2*	1.0	22.3	1.6	25.5	28.9	2100
35	2*	1.0	25.3	1.6	28.5	32.1	2580
50	2S	1.0	25.0	1.6	28.2	32.0	3000
70	2S	1.2	29.5	2.0	33.5	37.7	4300
95	2S	1.2	33.3	2.0	37.3	41.7	5510
120	2S	1.4	37.5	2.0	42.5	47.1	7150
150	2S	1.4	41.6	2.5	46.6	51.4	8500
185	2S	1.4	46.4	2.5	51.4	56.6	10300
240	2S	1.6	52.6	2.5	57.6	63.0	13000
300	2S	1.6	58.0	2.5	63.0	68.8	15750
400	2S	1.8	64.8	3.15	71.3	78.1	20450

FIVE CORE: BS5467 Cable, CU/XLPE/SWA/PVC CABLE

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	9.9	0.9	11.8	14.2	433
2.5	2	0.8	11.0	0.9	12.9	16.0	530
4	2	0.8	12.7	1.25	15.3	18.4	775
6	2	0.8	14.0	1.25	16.6	19.7	929
10	2	1.0	17.1	1.25	19.7	23.2	1300
16	2	1.0	19.8	1.6	23.1	26.6	1880
25	2	1.0	24.5	1.6	27.8	31.7	2670
35	2	1.0	25.5	1.6	28.7	33.0	2800
50	-	-	-	-	-	-	-
70	-	-	-	-	-	-	-
95	-	-	-	-	-	-	-

*95mm² and above are manufactured generally to BS5467

SIX CORE: BS5467 Cable, CU/XLPE/SWA/PVC CABLE

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	10.9	0.9	12.8	15.2	497
2.5	2	0.8	12.1	0.9	14.0	17.1	609
4	2	0.8	13.9	0.9	16.5	19.7	886
6	2	0.8	15.4	1.25	18.0	21.3	1070
10	2	1.0	18.8	1.6	22.1	25.6	1650
16	2	1.0	21.8	1.6	25.1	28.8	2190
25	2	1.0	26.9	1.6	30.2	34.1	3090

SEVEN CORE: BS5467 Cable, CU/XLPE/SWA/PVC CABLE

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	10.9	0.9	12.8	15.2	506
2.5	2	0.8	12.1	0.9	14.0	17.1	618
4	2	0.8	13.9	1.25	16.5	19.7	907
6	2	0.8	15.4	1.25	18.0	21.3	1110
10	2	1.0	18.8	1.25	22.1	25.6	1720
16	2	1.0	21.8	1.6	25.1	28.8	2300
25	2	1.0	30.2	1.6	34.3	38.6	3900

EIGHT CORE: BS5467 Cable, CU/XLPE/SWA/PVC CABLE

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	11.9	1.25	14.5	17.6	663
2.5	2	0.8	13.1	1.25	15.7	18.8	793
4	2	0.8	15.3	1.25	17.9	21.2	1030
6	2	1.0	17.3	1.6	20.6	24.1	1440
10	2	1.0	20.7	1.6	24.0	27.7	1960

TEN CORE: BS5467 Cable, CU/XLPE/SWA/PVC CABLE

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	13.9	1.25	16.5	19.8	812
2.5	2	0.8	15.5	1.25	18.1	21.4	989
4	2	1.0	18.3	1.6	21.6	25.1	1410
6	2	1.0	20.3	1.6	23.6	27.3	1680
10	2	1.0	24.3	1.6	27.6	31.5	2320

TWELVE CORE: BS5467 Cable, CU/XLPE/SWA/PVC CABLE

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	14.3	1.25	16.9	19.4	854
2.5	2	0.8	16.0	1.25	18.6	22.4	1080
4	2	1.0	18.9	1.6	22.2	27.7	1550
6	2	1.0	21.0	1.6	24.3	28.0	1920
10	2	1.0	25.1	1.6	28.4	32.3	2660

SIXTEEN CORE: BS5467 Cable, CU/XLPE/SWA/PVC CABLE

Size Sq.mm	Class of conductor	bedding mm	Diameter over bedding mm	Diameter of armour wire mm	Diameter over armour mm	Approx overall diameter mm	Weight kg/km
1.5	2	0.8	16.0	1.25	18.6	21.9	1020
2.5	2	0.8	18.2	1.6	21.5	25.0	1430
4	2	1.0	22.1	1.6	25.4	29.1	1950
6	2	1.0	23.4	1.6	26.7	30.4	2300
