| Prod Model: |
N2XY Cable |
| Standard: |
NFC 32 321 |
| Rated Voltage: |
0.6/1 Kv |
| Application: |
Building |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Insulation Material: |
XLPE |
| Certification: |
SGS |
| Model: |
U-1000 R2V, N2xy, C2xy |
| Brand: |
Hongda |

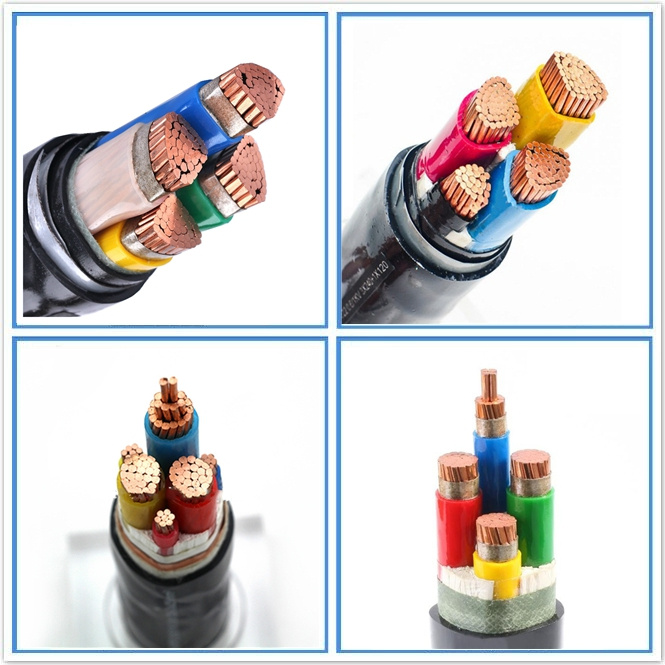

Product Description

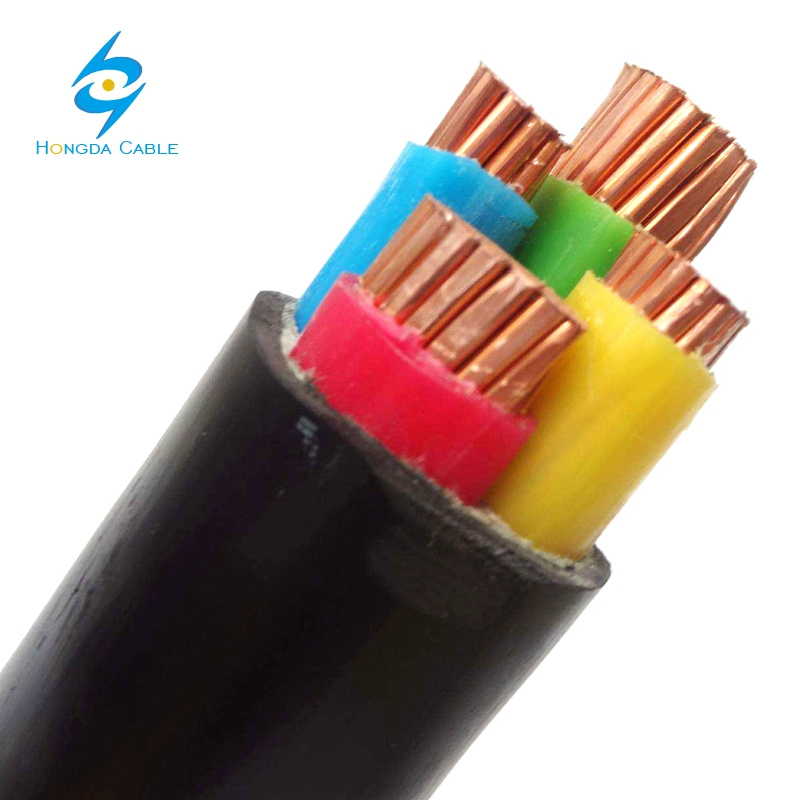

U-1000 R2V - XLPE insulated, copper conductor, PVC outer sheath cable

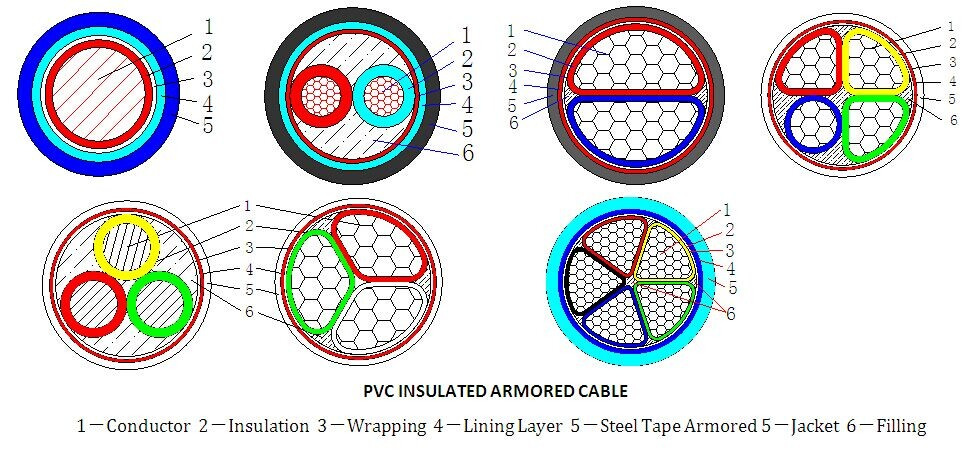

U-1000 R2V - Construction
| Conductor: | : rigid red copper wire, class 1 (Φ ≤ 4 mm²)
stranded circular compacted copper class 2 (Φ>4mm²) |
| Insulation | : XLPE crosslinked polyethylene (no dry cool) |
| Outer sheath | : PVC |
| Screen | : no |
| Drain wire | : no |
| Lead sheath | : no |
| Concentric cond. | : none |
| Insulation integrity | : no |
| Circuit integrity | : no |
| Armouring | : no |
| U-1000 R2V - Technical data and tests |
| Standards | : NF C 32-321 C32-321/A1; IEC 60502-1 NF EN 60332-1-2; NF C 15-100 |
| Nominal voltage U0/U | : 0,6/1 kV |
| Test voltage (50 Hz) | : 4 kV |
| Maximun voltage Um | : 1,2 kV |
| Maximun operating temperature | : +90° C |
| Maximun short circuit temperature | : +250° C |
Min. operating temperature
(without mechanical shocks) | : -25° C |
| Minimum installation and use temp. | : -10° C |
Minimum bending radius per
D cable diameter (in mm) | : 6 x D |
| Maximum pulling stress | : 5 kg/mm² (of copper cross section) |
| Core colours | single core : black
two cores : blue-brown
three cores : brown-black-blue (1,5/2,5 mmq); brown-black-gray (4 mmq) or Y/G-blue-brown)
four cores : blue-brown-black-gray (or Y/G instead blue)
five cores : blue-brown-black-gray-Y/G (or black instead Y/G) |
| Sheath colour | : black |
U-1000 R2V - ApplicationsThis cable is for use on industrial sites and the upright columns of buildings. Particularly suited in cases of high operating temperatures and when high resistance to solar radiation and atmospheric agents is required.
Presents good resistance to low temperatures and chemical agents. It can be used without additional mechanical protection in open air, fixed to walls or in raceways, inside walkways, and in empty in constructions in general.
It can be laid underground with mechanical protection constucted from slabs, tiles, or bricks. It is not recommended to lay this cable in ground flooded for more than two months per year.
With appropriate mechanical protection it can be use in areas subject to risk of explosion, but in this case the permitted current load is reduced by 15%.
| U-1000 AR2V power cable 0.6/1 kV - Other standards |
| German | : N2XY |
| British | : CU/XLPE/PVC |
| Serbian | : XP 00 |
| Turkish | : YXV-U (-R) |
| Romanian | : C2XY |
U-1000 R2VLow Voltage Power Cable (0.6/1 kV)XLPE insulated, copper conductor, PVC outer sheath cable
| DIMENSIONS |
Cores
number
N° | Cross
section
mm² | Approx
conductor
diameter
mm | Insulation
medium
thickness
mm | Min. sheath
thickness
mm | Max.
external
diameter
mm | Electric
resistance at
20°C
ohm/km | Approx
cable weight
kg/km | Current
carrying
air free
A | Current
carrying
burried
A |
| Single core |
| 1x | 1.5 | 1.4 | 0.7 | 1.09 | 6.6 | 12.1 | 45 | 24 | 31 |
| 1x | 2.5 | 1.8 | 0.7 | 1.09 | 7 | 7.41 | 55 | 33 | 41 |
| 1x | 4 | 2.25 | 0.7 | 1.09 | 7.6 | 4.61 | 75 | 45 | 59 |
| 1x | 6 | 3.05 | 0.7 | 1.09 | 8.2 | 3.08 | 100 | 58 | 74 |
| 1x | 10 | 3.8 | 0.7 | 1.09 | 9.2 | 1.83 | 140 | 80 | 101 |
| 1x | 16 | 4.7 | 0.7 | 1.09 | 10.5 | 1.15 | 205 | 107 | 128 |
| 1x | 25 | 5.9 | 0.9 | 1.09 | 12.5 | 0.727 | 315 | 138 | 144 |
| 1x | 35 | 7.1 | 0.9 | 1.09 | 13.5 | 0.524 | 400 | 169 | 174 |
| 1x | 50 | 8 | 1 | 1.09 | 15 | 0.387 | 530 | 207 | 206 |
| 1x | 70 | 9.6 | 1.1 | 1.09 | 17 | 0.268 | 725 | 268 | 254 |
| 1x | 95 | 11.4 | 1.1 | 1.18 | 19 | 0.193 | 985 | 328 | 301 |
| 1x | 120 | 13.1 | 1.2 | 1.18 | 21 | 0.153 | 1260 | 382 | 343 |
| 1x | 150 | 14.6 | 1.4 | 1.26 | 23 | 0.124 | 1520 | 441 | 387 |
| 1x | 185 | 16.5 | 1.6 | 1.26 | 25.5 | 0.0991 | 1940 | 506 | 434 |
| 1x | 240 | 18.4 | 1.7 | 1.35 | 28.5 | 0.0754 | 2310 | 599 | 501 |
| 1x | 300 | 21.1 | 1.8 | 1.43 | 31 | 0.0601 | 3200 | 693 | 565 |
| 1x | 400 | 23.5 | 2 | 1.52 | 34.2 | 0.047 | 3931 | - | 639 |
| 1x | 500 | 26.5 | 2.2 | 1.6 | 38 | 0.0366 | 5020 | - | 713 |
| 1x | 630 | 30.1 | 2.4 | 1.69 | 44 | 0.0286 | 5324 | - | 785 |
| Two cores |
| 2x | 1.5 | 1.4 | 0.7 | 1.43 | 10.5 | 12.1 | 115 | 26 | 37 |
| 2x | 2.5 | 1.8 | 0.7 | 1.43 | 11.5 | 7.41 | 145 | 36 | 48 |
| 2x | 4 | 2.25 | 0.7 | 1.43 | 13 | 4.61 | 195 | 49 | 63 |
| 2x | 6 | 3.05 | 0.7 | 1.43 | 14 | 3.08 | 265 | 63 | 80 |
| 2x | 10 | 3.8 | 0.7 | 1.43 | 16 | 1.83 | 390 | 86 | 104 |
| 2x | 16 | 4.7 | 0.7 | 1.43 | 18.5 | 1.15 | 560 | 115 | 136 |
| 2x | 25 | 5.9 | 0.9 | 1.43 | 22 | 0.727 | 850 | 149 | 173 |
| 2x | 35 | 7.1 | 0.9 | 1.43 | 24.5 | 0.524 | 1080 | 185 | 208 |
| Three cores |
| 3x | 1.5 | 1.4 | 0.7 | 1.43 | 11 | 12.1 | 130 | 23 | 31 |
| 3x | 2.5 | 1.8 | 0.7 | 1.43 | 12.5 | 7.41 | 170 | 31 | 41 |
| 3x | 4 | 2.25 | 0.7 | 1.43 | 13.5 | 4.61 | 230 | 42 | 53 |
| 3x | 6 | 3.05 | 0.7 | 1.43 | 15 | 3.08 | 325 | 54 | 66 |
| 3x | 10 | 3.8 | 0.7 | 1.43 | 17 | 1.83 | 485 | 75 | 87 |
| 3x | 16 | 4.7 | 0.7 | 1.43 | 19.5 | 1.15 | 705 | 100 | 113 |
| 3x | 25 | 5.9 | 0.9 | 1.43 | 23.5 | 0.727 | 1080 | 127 | 144 |
| 3x | 35 | 7.1 | 0.9 | 1.43 | 26 | 0.524 | 1390 | 158 | 174 |
| 3x | 50 | 8 | 1 | 1.43 | 29 | 0.387 | 1840 | 192 | 206 |
| 3x | 70 | 9.6 | 1.1 | 1.52 | 34 | 0.268 | 2540 | 246 | 254 |
| 3x | 95 | 11.4 | 1.1 | 1.6 | 38.5 | 0.193 | 3430 | 298 | 301 |
| 3x | 120 | 13.1 | 1.2 | 1.69 | 42.5 | 0.153 | 4440 | 346 | 343 |
| 3x | 150 | 14.6 | 1.4 | 1.86 | 47.5 | 0.124 | 5380 | 395 | 395 |
| 3x | 185 | 16.5 | 1.6 | 1.94 | 53 | 9.91 | 6920 | 450 | 434 |
| 3x | 240 | 18.4 | 1.7 | 2.11 | 59.5 | 7.54 | 8420 | 538 | 501 |
| 3x | 300 | 21.1 | 1.8 | 2.28 | 66 | 6.01 | 11300 | 621 | 565 |
| DIMENSIONS |
Cores
number
N° | Cross
section
mm² | Approx
conductor
diameter
mm | Insulation
medium
thickness
mm | Min. sheath
thickness
mm | Max.
external
diameter
mm | Electric
resistance at
20°C
ohm/km | Approx
cable weight
kg/km | Current
carrying air
free
A | Current
carrying
burried
A |
| Four cores |
| 4x | 1.5 | 1.4 | 0.7 | 1.43 | 12 | 12.1 | 150 | 23 | 31 |
| 4x | 2.5 | 1.8 | 0.7 | 1.43 | 13 | 7.41 | 205 | 31 | 41 |
| 4x | 4 | 2.25 | 0.7 | 1.43 | 14.5 | 4.61 | 280 | 42 | 53 |
| 4x | 6 | 3.05 | 0.7 | 1.43 | 16 | 3.08 | 390 | 54 | 66 |
| 4x | 10 | 3.8 | 0.7 | 1.43 | 18.5 | 1.83 | 590 | 75 | 87 |
| 4x | 16 | 4.7 | 0.7 | 1.43 | 21 | 1.15 | 870 | 100 | 113 |
| 4x | 25 | 5.9 | 0.9 | 1.43 | 25.5 | 0.727 | 1365 | 127 | 144 |
| 4x | 35 | 7.1 | 0.9 | 1.43 | 28.5 | 0.524 | 1760 | 158 | 174 |
| 4x | 50 | 8.1 | 1 | 1.52 | 32.5 | 0.387 | 2466 | 192 | 206 |
| 4x | 70 | 9.7 | 1.1 | 1.6 | 37.5 | 0.268 | 3442 | 246 | 254 |
| 4x | 95 | 11.4 | 1.1 | 1.69 | 42.5 | 0.193 | 4690 | 298 | 301 |
| 4x | 120 | 13.1 | 1.2 | 1.86 | 47.5 | 0.153 | 6119 | 346 | 343 |
| 4x | 150 | 14.6 | 1.4 | 1.94 | 52.5 | 0.124 | 7405 | 395 | 387 |
| 4x | 185 | 16.5 | 1.6 | 2.11 | 59 | 9.91 | 8820 | 450 | 434 |
| 4x | 240 | 18.5 | 1.7 | 2.28 | 66.5 | 7.54 | 11865 | 538 | 501 |
| 4x | 300 | 21 | 1.8 | 2.45 | 73.5 | 6.01 | 14716 | 621 | 565 |
| 3x50 + 1x35 | 8 | 1 | 1.52 | 31.1 | 0.387 | 2160 | 192 | 206 |
| 3x70 + 1x50 | 9.6 | 1.1 | 1.6 | 36.2 | 0.268 | 3010 | 246 | 254 |
| 3x95 + 1x50 | 11.4 | 1.1 | 1.69 | 40.6 | 0.193 | 3960 | 298 | 301 |
| 3x120 + 1x70 | 13.1 | 1.2 | 1.86 | 45.4 | 0.153 | 5160 | 346 | 343 |
| 3x150 + 1x70 | 14.6 | 1.4 | 1.94 | 49.5 | 0.124 | 6150 | 395 | 387 |
| 3x185 + 1x70 | 16.5 | 1.6 | 2.11 | 54.4 | 9.91 | 7780 | 450 | 434 |
| 3x240 + 1x95 | 18.4 | 1.7 | 2.28 | 61.5 | 7.54 | 9550 | 538 | 501 |
| Five cores |
| 5x | 1.5 | 1.4 | 0.7 | 1.43 | 13 | 12.1 | 180 | 23 | 31 |
| 5x | 2.5 | 1.8 | 0.7 | 1.43 | 14.5 | 7.41 | 240 | 31 | 41 |
| 5x | 4 | 2.25 | 0.7 | 1.43 | 16 | 4.61 | 335 | 42 | 53 |
| 5x | 6 | 3.05 | 0.7 | 1.43 | 17.5 | 3.08 | 475 | 54 | 66 |
| 5x | 10 | 3.8 | 0.7 | 1.43 | 20 | 1.83 | 720 | 75 | 87 |
| 5x | 16 | 4.7 | 0.7 | 1.43 | 23 | 1.15 | 1060 | 100 | 113 |
| 5x | 25 | 5.9 | 0.9 | 1.43 | 28 | 0.727 | 1645 | 127 | 144 |
| Multicores |
| 7x | 1.5 | 1.4 | 0.7 | 1.43 | 13.5 | 12.1 | 220 | 15 | 22 |
| 7x | 2.5 | 1.8 | 0.7 | 1.43 | 15 | 7.41 | 310 | 20.5 | 28 |
| 10x | 1.5 | 1.4 | 0.7 | 1.43 | 16.5 | 12.1 | 310 | 13 | 18.5 |
| 10x | 2.5 | 1.8 | 0.7 | 1.43 | 19 | 7.41 | 440 | 18 | 24.5 |
| 12x | 1.5 | 1.4 | 0.7 | 1.43 | 17 | 12.1 | 370 | 12.5 | 18 |
| 12x | 2.5 | 1.8 | 0.7 | 1.43 | 19.5 | 7.41 | 525 | 17 | 24 |
| 14x | 1.5 | 1.4 | 0.7 | 1.43 | 18 | 12.1 | 430 | 12 | 17 |
| 14x | 2.5 | 1.8 | 0.7 | 1.43 | 20.5 | 7.41 | 610 | 16 | 22 |
| 19x | 1.5 | 1.4 | 0.7 | 1.43 | 19.5 | 12.1 | 560 | 10.5 | 15 |
| 19x | 2.5 | 1.8 | 0.7 | 1.43 | 22.5 | 7.41 | 745 | 14.5 | 19.5 |
| 24x | 1.5 | 1.4 | 0.7 | 1.43 | 22.5 | 12.1 | 710 | 10 | 14 |
| 24x | 2.5 | 1.8 | 0.7 | 1.43 | 25.5 | 7.41 | 1000 | 13 | 18 |
| 30x | 1.5 | 1.4 | 0.7 | 1.43 | 24 | 12.1 | 806 | 9 | 12.5 |
| 30x | 2.5 | 1.8 | 0.7 | 1.43 | 27.5 | 7.41 | 1135 | 12 | 16.5 |
| 37x | 1.5 | 1.4 | 0.7 | 1.43 | 25.5 | 12.1 | 972 | 8 | 12 |
| 37x | 2.5 | 1.8 | 0.7 | 1.43 | 29.5 | 7.41 | 1350 | 11 | 15.5 |

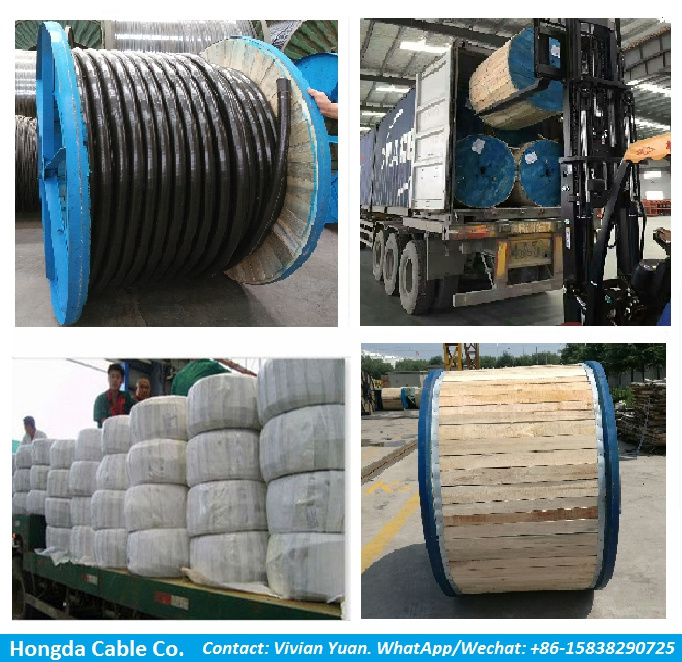

Packing & Shipping:
