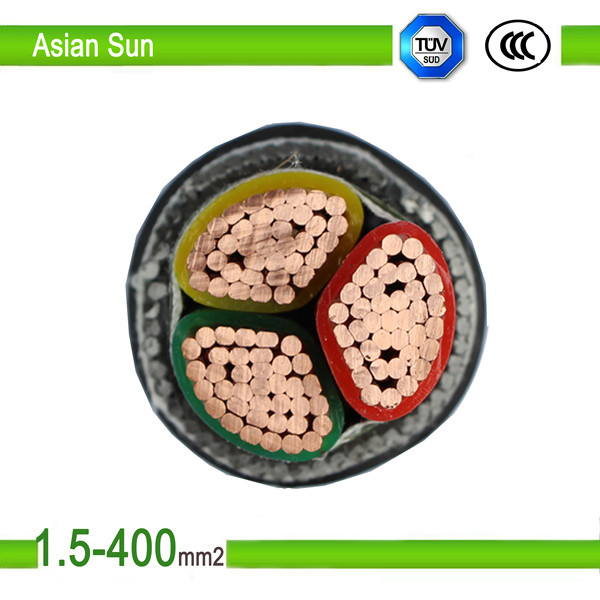

XLPE Insulated PVC Sheathed Power Cable Yjv4*70mm2+1*35mm2
| Price: |
US $ 0.01-99.98/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Power cable-WLL05 |
| Supplier's Nature: |
Manufacturer |
| Certificate: |
ISO, TUV, CCC, IEC |
| Freight: |
Customer Pay for It |
| Employee: |
800-1000 People |
| Core Specification: |
Copper Core or Aluminium Core or Tinned Core |
| OEM: |
Ok |
| ODM: |
Ok |
| Delivery Time: |
7 Workdays |
| Application: |
Telecommunication |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Wire Core Material: |
Copper, Aluminium, as Per Client′s Request |
| Model: |
Zs-PC16-6-236 |
| Brand: |
Dayuan |
Product Description
LV/Flame Redartant/Steel Tape Armored/XLPE Insulated Electric Power Cable Manufacturer1. Applicable Standard:
GB/T 12706-2008, IEC 60502-2005

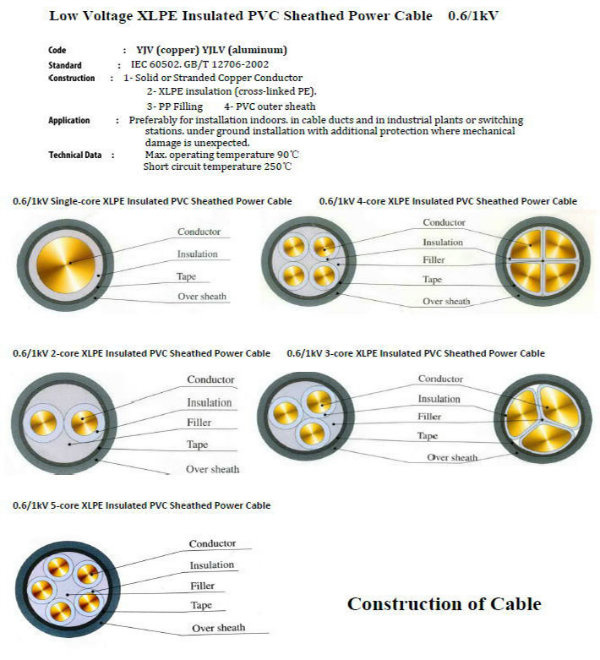

2. Product Description:
For XLPE insulated power cable, either chemical method or physical method had been employed to transform the molecular of PE from liner structure into three-dimensional network structure, i.e. thermoplastic PE and been transformed into thermosetting XLPE. After cross-linking, the mechanical performance, heating aging property and ambient stress resistance have been greatly improved, while its excellent electrical properties are still maintained.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology (peroxide, hot water and irradiation cross-linking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non halogen and three classes of A, B, C.
Maximum rated temperature of cable conductor is 90ºC
Maximum short-circuit temperature of cable conductor ≤ 250ºC
The temperature when laying cable ≥ 0ºC, The minimum bending diameter of cable is stipulated as follow:
For single-core cable: 20(D+d)±5% in mm
For multi-core cable: 15(D+d)±5% in mm
Where: D is the actual outer diameter of the cable
d is the actual outer diameter of the conductor.
3. Name & Application| Type | Description | Application |
| VV | Copper ( Al) PVC insulation PVC sheath power cable | Can be laid in indoor tunnels and pipelines, can't bear external mechanical force. |
| VV22 | Copper (Al) steel tape armored PVC insulation / sheath power cable | Can be laid in indoor tunnels and pipelines, can't bear external mechanical force. |
| VV32 | Copper (Al) thin steel wire armored PVC insulation / sheath power cable | Can be laid in indoor tunnels and pipelines, can't bear external mechanical force. |
| VV42 | Copper (Al) thick steel wire armored PVC insulation / sheath power cable | Can be laid in indoor tunnels and pipelines, can't bear external mechanical force. |
| YJV | Copper ( Al) XLPE insulation PVC sheath power cable | Can be laid indoor, outdoor, tunnels, reinforced concrete pipelines or loose soil. Cable can't bear outer mechanical force, but can bear a certain traction force. |
| YJV22 | Copper (Al) steel tape armored XLPE insulation PVC sheath power cable | Laid underground, cable be bear outer mechanical force, but should not bear a large traction force. |
| YJV32 | Copper (Al) thin steel wire armored XLPE insulation PVC sheath power cable | Laid indoor, tunnel or mines. Cable can bear outer mechanical force and fairly large traction force. |
| YJV42 | Copper (Al) thick steel wire armored XLPE insulation PVC sheath power cable | Can be laid in vertical section, indoor, tunnels or mines. Cable can bear outer mechanical force and very large traction force. |
4. Specification| Type | Voltage | Section | Core Number |
| VV | YJV | 0.6/1kV | 1.5-800mm2 | 1 |
| VV22 VV32 | YJV22 YJV32 | 2.5-400mm2 |
| VV42 | YJV42 | 10-400mm2 |
| VV | YJV | 0.6/1kV | 1.5-400mm2 | 2 |
| VV22 VV32 | YJV22 YJV32 | 2.5-400mm2 |
| VV42 | YJV42 | 4-400mm2 |
| VV | YJV | 0.6/1kV | 1.5-400mm2 | 3 |
| VV22 VV32 | YJV22 YJV32 | 2.5-400mm2 |
| VV42 | YJV42 | 4-400mm2 |
| VV VV22 | YJV | 0.6/1kV | 4-400mm2 | 4,3+1,5,
4+1, 3+2 |
| VV32 VV42 | YJV32 YJV42 | 4-400mm2 |
5. Top Ranking Manufacture Equipment for HV/MV/LV of Power cables from Professional Suppliers| Name | Type | Origin | Application |
| 35KV Cable production line | CCV | Maillefer Finland | Production of medium voltage insulation wire core |
| 35KV Cable production line | CCV | TROESTER Germany | Production of medium voltage insulation wire core |
| 110KV Cable production line | CCV | TROESTER Germany | Production of high voltage insulation wire core |
| 500KV Cable production line | VCV | Maillefer Finland | Production of high voltage insulation wire core |
| 500KV Cable production line | VCV | TROESTER Germany | Production of high voltage insulation wire core |
| 35KV rubber cable production line | CCV | TROESTER Germany | Production of medium voltage rubber cables |
| 630 Frame type stranding machine | 91 wires | Pourtier France | Production for blocks of large section conductor |
| 3600 Drum-twister for milliken conductor | DPTC3600 | Pourtier France | Production for blocks of large section conductor |
| High voltage cable out-sheath Product Line | Φ150+90 | Germany (Shanghai) TROESTER Machinery Co., Ltd. | Production for EHV cable double sheath |
6. Our Services:

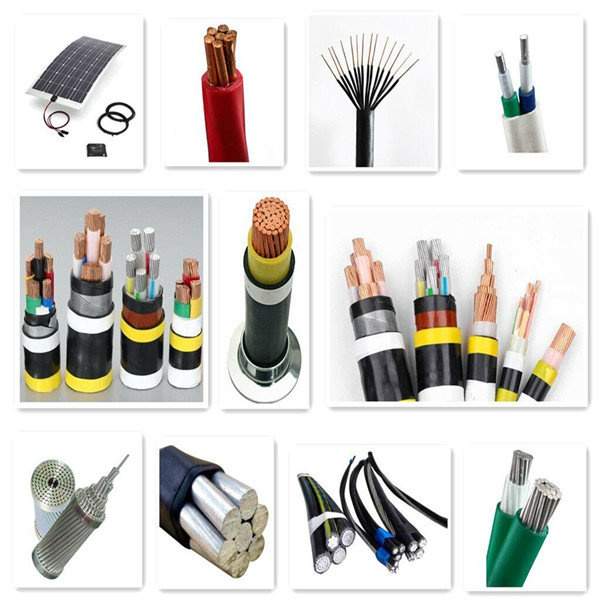

Luoyang Da Yuan Cable Factory Co., Ltd., a professional wires and cables manufacturer for 6 years in China. Da Yuan attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.

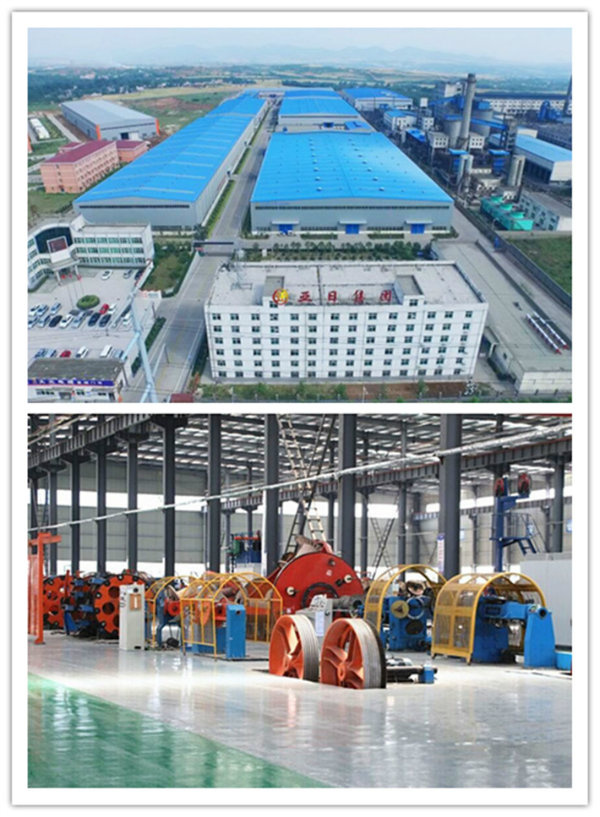

1). Factory: 200,081 square meters, available for OEM&ODM;
2). Lead time: 5-7 working days after payment received;
3). Authentication: CCC,ISO9001, CQC, etc;
4). Payment terms: T/T, L/C;
5). Guarantee: 17 years;
6). QC inspection: Strict inspection before delivery;
7.After-sales Service:
1). All our cables will be tested well in production and before delivery.
2). Please contact us if any problem, we will respond within 24 hours.

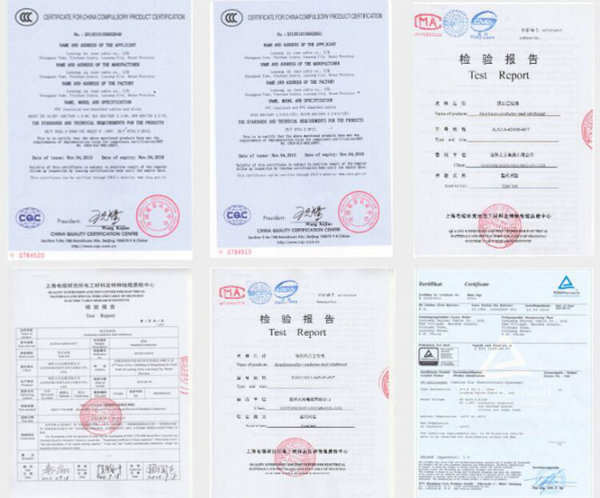

8. Company Certifications:
National Products Safety Cerficcation;
ISO9001 Quality System Certification;
CCC Chinese National Compulsory Products Certification;
Occupational Health Safety Management System Certification;
Environmental Management System Certification;
Production License of Industrial Products;
International Standard Products Sysmbol Certificate, etc.
9.Customer coming:
10.Contact us:
Lydia Wang
Department sale manager
International Trade Department
Luoyang Dayuan Cable Factory Co., Lt=================================
Tel: +86-379-69991587
Mobile: + 86-13271534528
Web: http://www.yr-group.cn
Alibaba Showroom: http://lyyari.en.alibaba.com/=================================
Luoyang Da Yuan Cable Factory Co., Ltd. is founded in the Sept. 2011 with registered fund 200 million RMB which is the subsidiary of Luoyang Asian Sun Industrial Group Co., Ltd. We can produce all kinds of high and low voltage electric wire and cables, and have been one of the new technology development enterprise made scientific, industry, trading as a whole. Main products include power cables, PV cable, control cables, branching cables, aerial cables, Most important thing is that we also produce the raw material-aluminium wire rod coperated with Ls Group etc. Seven big series, more than 300 varieties, nearly. 2000. Specifications.
Dayuan Cable is committed to "all for customer satisfaction", comprehensively implements the ISO9001 quality system, effectively guarantees the enterprise competitiveness in the market. Short-term goal for company's development is giving full play to the advantages of talents, technology and equipment, improving product quality, building the "Da Yuan" brand in the domestic, making the product into the national grid, Its farther goal is carrying out the strategy of sustainable development, making the "quality, price, service" well done to step into the international market, setting up national cable brand, and achieving the leapfrog development of the enterprise by virtue of producing higher level of series cable products.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
