| Prod Model: |
240mm2 |
| Conductor Material: |
Copper |
| Armoured: |
Steel Wire Armoured(Swa) |
| Jacket Material: |
PVC |
| Inner Core: |
1/2/3/4/5 Core |
| Rated Voltage: |
0.6/1kv |
| Name: |
XLPE Insulation PVC Sheathed Single Core Power Cab |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Brand: |
Jiukai |
Product Description

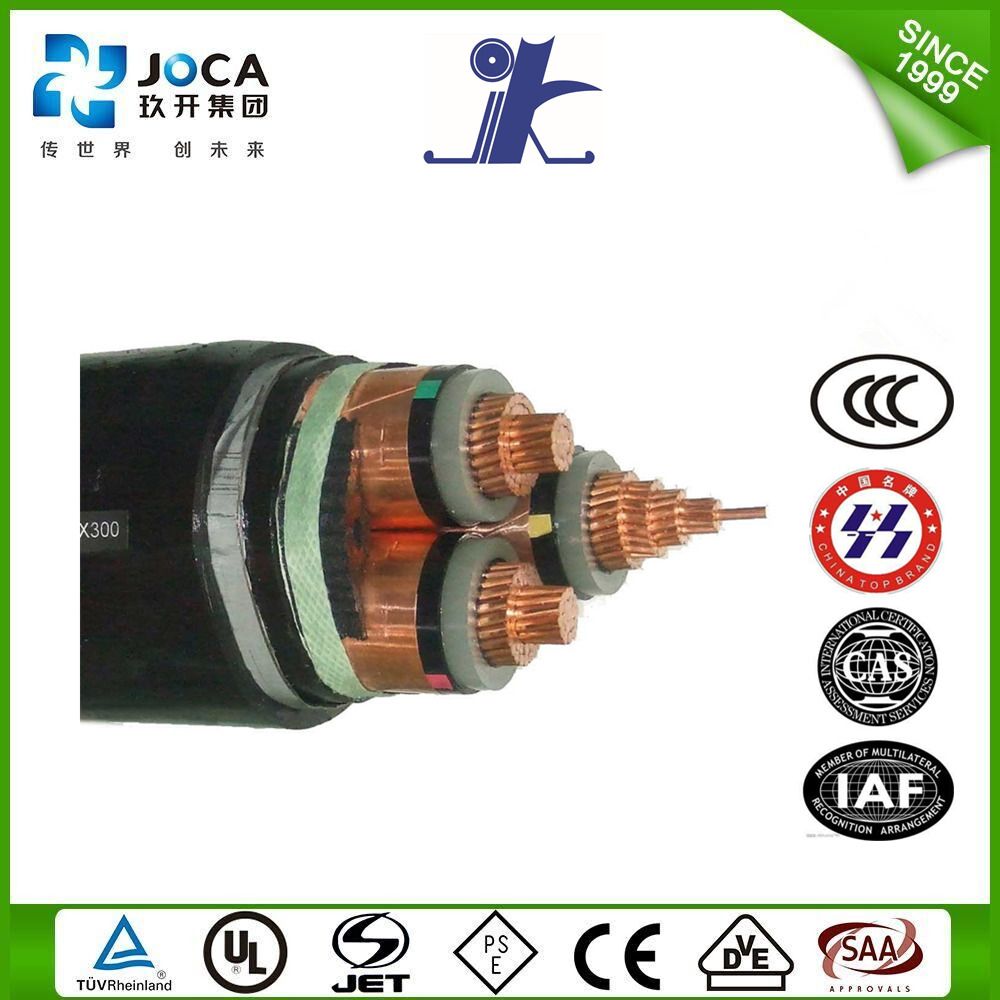

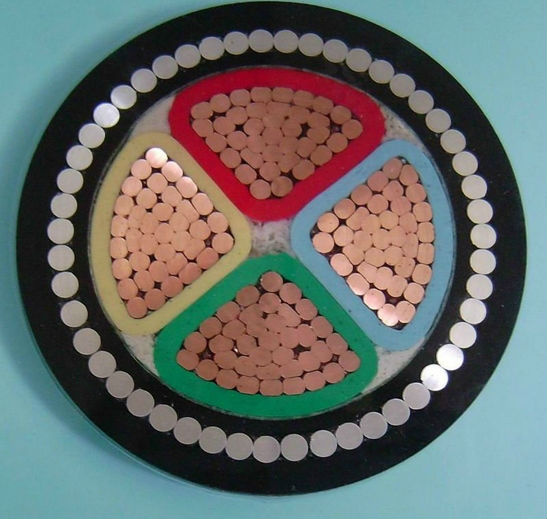

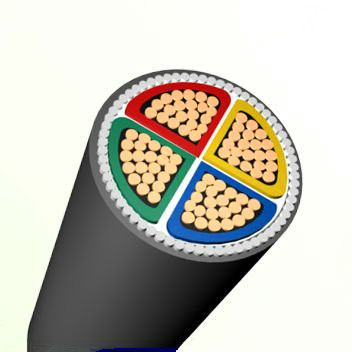

XLPE insulation PVC sheathed single core power cable 240mm2
0.6/1kv 2core 3core 4 core 5 core YJV power cable manufacturers has excellent electric, mechanical properties, resistance against chemical corrosion etc.
1. More series includes:
Copper (aluminum) conductor, XLPE insulated, PVC sheathed power cables.
Copper (aluminum) conductor, XLPE insulated, PE sheathed power cables.
Copper (aluminum) conductor, XLPE insulated, steel tape armoring, PVC sheathed power cables.
Copper (aluminum) conductor, XLPE insulated, steel tape armoring, PE sheathed power cables.
Copper (aluminum) conductor, XLPE insulated, thin steel wire armoring, PVC sheathed power cables
Copper (aluminum) conductor, XLPE insulated, thin steel wire armoring, PE sheathed power cables
Copper (aluminum) conductor, XLPE insulated, thick steel wire armoring, PVC sheathed power cables.
Copper (aluminum) conductor, XLPE insulated, thick steel wire armoring, PE sheathed power cables
2. Application
The products can be produce according to the standard IEC 60502. Our factory can also design and manufacture special XLPE cable according to the other standards required by the customers'. They not only have excellent electric conductivity mechanical properties, but also have powerful resistance against chemical corrosion, heating and environmental stress. Their structures are simple. The permissible maximum operating temperature is 90°C. It is convenient for using and they can be laid with no restriction of different elevation.
3. Technical Data for your reference
| Section | Core | Cu Wire No./Diameter | XLPE Insulation Thick | PVC Beded | SWA Wire No./Diameter | PVC Outersheath |
| mm2 | no. | no./mm | mm | mm | no./mm | mm |
| 16 | 4 | 7/1.7 | 0.7 | 1.2 | 38/1.6 | 1.8 |
| 25 | 4 | 7/2.14 | 0.9 | 1.2 | 42/1.6 | 1.8 |
| 35 | 4 | 7/2.52 | 0.9 | 1.2 | 46/1.6 | 1.9 |
TECHNICAL SPECIFICATIONS
FOR 4X50mm2Cu/XLPE/PVC/SWA/PVC 600/1000 V LOW VOLTAGE CABLE |
1- Manufacturer | JK Cable |
2- Type of Cable | Cu/XLPE/PVC/SWA/PVC |
3- Standard | IEC 60502 |
4- Rated Voltage (U0 / U) (V) | 600/1000 |
5- Number of cores and nominal cross-section (N0xmm²) | 4x50 |
6- Material of Conductor | Copper (Class 2) |
7- Current Carrying Capacity | |
In air* (A) | 209 |
Underground** (A) | 177 |
8- DC Resistant of Conductor at 20°C (Ω/km) | 0.387 |
9- Max. Continous conductor temperature (°C) | 90 |
10- AC Resistance at Max. Operating Temperature (Ω/km) | 0.493 |
11- Power Loss at 20°C with Max. Operating Current (kW/km) | 105 |
12- Permesible Conductor Temperature at Short Circuit (°C) | 250 |
13- Max. Short Circuit Current for 1 s (kA) | 5.28 |
14- Material of Insulation | XLPE |
15- Wall Thickness of Insulation (mm) | 1.0 |
16- Number and Diameter of Concentric Conductor (N0xmm) : | - |
17- Size of Steel Armoured (mm) | 2.0 |
18- Material of Sheath | PVC |
19- Wall Thickness of Sheath (mm) | 2.1 |
20- Aprox. Cable Diameter (mm) | 32.9 |
21- Aprox. Unit Weight of Cables (kg/km) | 3232 |
22- Aprox. Unit Weight of Steel (kg/km) | 1029.6 |
23- Aprox. Unit Weight of Conductor (kg/km) | 1661.5 |
24- Min. Bending Radius (mm) | 660 |
25- Min. Temperature of Laying (°C) | -10°C |
| |
* Ambient Temperature 30°C
** Deep 70 cm, Temperature Ground 20°C, Termal Resistivity of Ground 1 K.m/W |
Packaging and Shipping| Packaging Details: | 1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll. |
| | 2. According to customer requirement. |
| Shipping Details: | 7-15 days after payment. |
FAQQ: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
