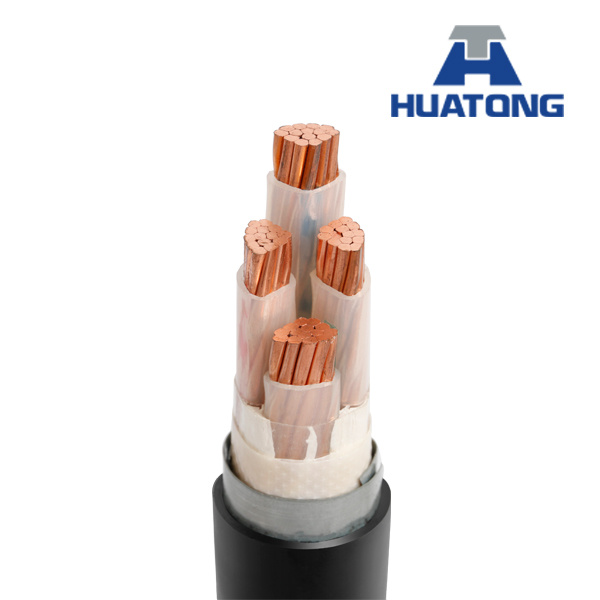

XLPE /PVC (Cross-linked polyethylene) Insulated Electric Power Cable
| Price: |
US $ 18/Meter |
| Min Order: |
20/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
YJV YJLV YJV22 YJLV22 YJV32 YJLV32 |
| Standard: |
IEC 60502 |
| Factory Area: |
100000mm2 |
| QC: |
25 |
| Color: |
Black, Red |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Huatong |
Product Description
XLPE /PVC (Cross-linked polyethylene) Insulated Electric Power Cable (1)Production capacity:5000km/month
(2)MOQ:1km
(3)Delivery:5~15 officail days.
(4)Standards:IEC,ASTM,DIN,BS; or according to customers' requirements.
Specification
1. Conductors: copper or aluminum.
2. Both armored and non-armored type power cables are available.
3. Voltage rating: 0.6/1kV 3.6/6kV 6/10kV 8.7/15kV 26/35kV.
4. PVC or XLPE sheathed.
5. Number of cable cores: one core (Single core),two cores(Double cores),three cores,
Four cores (Four Equal-section-area cores or three equal-section area cores and one smaller section area neutral core),
Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).
6. Standards: IEC 60502.IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.
Characteristics of Cable
1.Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C
2.Installing temperature of cable should not be less than 0°C
3.Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
4.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5.Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
Number of Cores & Nominal Cross-section Area| Number of Cores | 1 | 2 | 3 | 3+1 | 4 | 3+2 | 4+1 | 5 |
| Section Area (mm2) | 4 - 500 | 2.5 - 500 | 2.5 - 300 | 4 - 300 | 2.5 - 300 | 2.5 -300 | 4 - 300 | 2.5 - 95 |
1. The installation temperature should not over 20ºC, If the ambient temperature is lower than 0ºC, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C.
In air:
1. As the single core cable laying in parallel, the distance between the cable's center is 2 times (for cables which cross section area of conductor ≤185mm2) and
90mm (for cables which cross sectional area of conductor≥240mm2)
2. Ambient temperature: 30ºC
3. Max. temperature of conductor: 70ºC
4. Rating factors of current rating for ambient temperature:| Air temperature | 20ºC | 25ºC | 35ºC | 40ºC | 45ºC |
| Rating factors | 1.12 | 1.06 | 0.94 | 0.87 | 0.79 |
1. When the single core cables are installed separately, the distance between the cable's center is 2 times of the cable diameter.
2. Ambient temperature: 25ºC.
3. Max. temperature of conductor: 70ºC.
4. Soil thermour resistivity: 1.0ºC. m/w.
5. Depth: 0.7m
6. Rating factors under different ambient temp.:| Air temperature | 15ºC | 20ºC | 30ºC | 35ºC |
| Rating factors | 1.11 | 1.05 | 0.94 | 0.88 |
Item |
Category A ,B |
3.6/6kV |
6/10kV |
8.7/15kV |
12/20kV |
18/30kV |
21/35kV |
Category A ,B |
6/6kV |
8.7/10kV |
12/15kV |
18/20kV |
- |
26/35kV |
Single core |
mm2 |
25-1200 |
25-1200 |
35-1200 |
50-1200 |
50-1200 |
50-1200 |
Three core |
mm2 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |

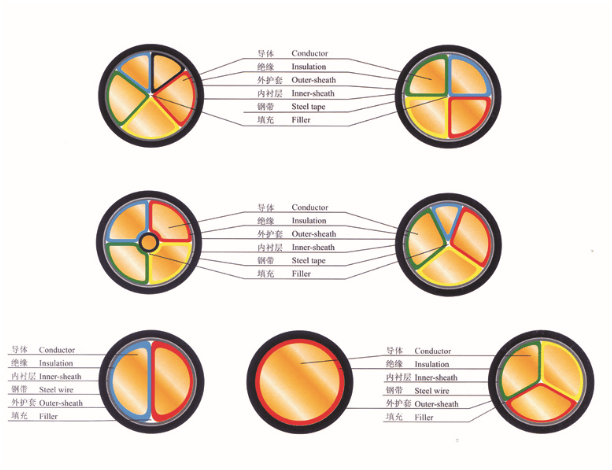

Cable name and application
Type |
Designation |
Applications |
YJV |
Copper conductor,XLPE insulated,PVC sheathed
power cable |
For laying indoors,in tunnel or cable
trench,unable to bear external
mechanical forces.Single core cable
is not allowed to laid in magnetic duct. |
YJLV |
Aluminum conductor,XLPE insulated,PVC
sheathed power cable |
YJY |
Copper conductor, XLPE insulated,PE sheathed
power cable |
YJLY |
Aluminum conductor, XLPE insulated,PE
sheathed power cable |
YJV22 |
Copper conductor,XLPE insulated,steel tape
armoured,PVC sheathed power cable |
For laying indoors,in tunnel in cable
trench,or direct in ground,able to
bear external mechanical
forces.Single core cable is not
allowed to laid in magnetic duct. |
YJLV22 |
Aluminum conductor,XLPE insulated,steel tape
armoured,PVC sheathed power cable |
YJV23 |
Copper conductor,XLPE insulated,steel tape
armoured,PE sheathed power cable |
YJLV23 |
Aluminum conductor,XLPE insulated,steel tape
armoured,PE sheathed power cable |
YJV32 |
Copper conductor,XLPE insulated,steel wire
armoured,PVC sheathed power cable |
For laying indoors,in tunnel cable
trench,well or direct in ground,able to
bear external mechanical forces and
certain pulling force. |
YJLV32 |
Aluminum conductor,XLPE insulated,steel wire
armoured,PVC sheathed power cable |
YJV33 |
Copper conductor,XLPE insulated,steel wire
armoured,PE sheathed power cable |
YJLV33 |
Aluminum conductor,XLPE insulated,steel wire
armoured,PE sheathed power cab |

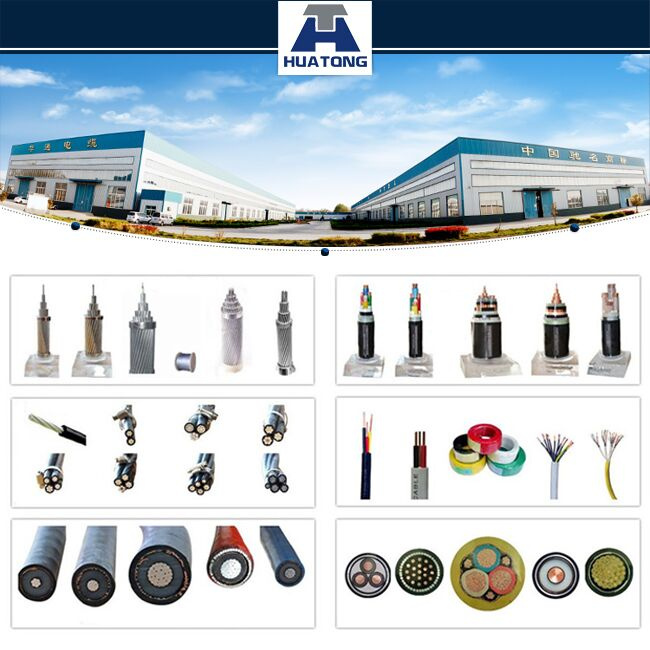

Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.

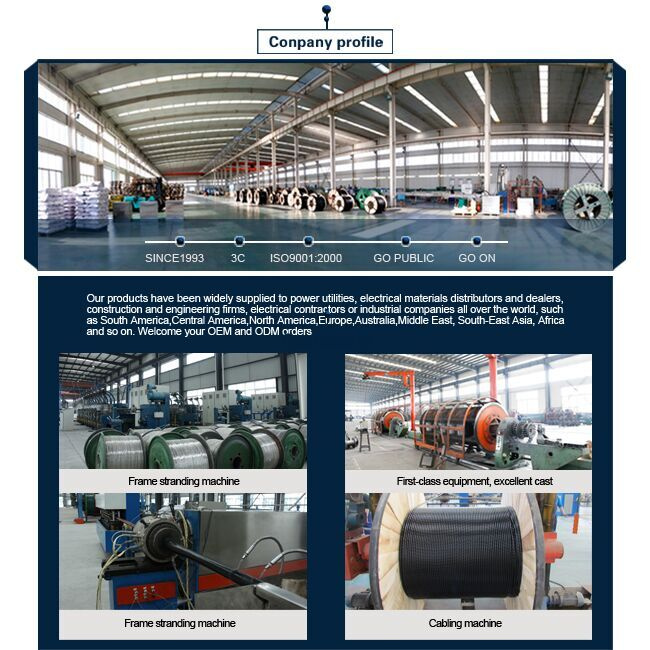

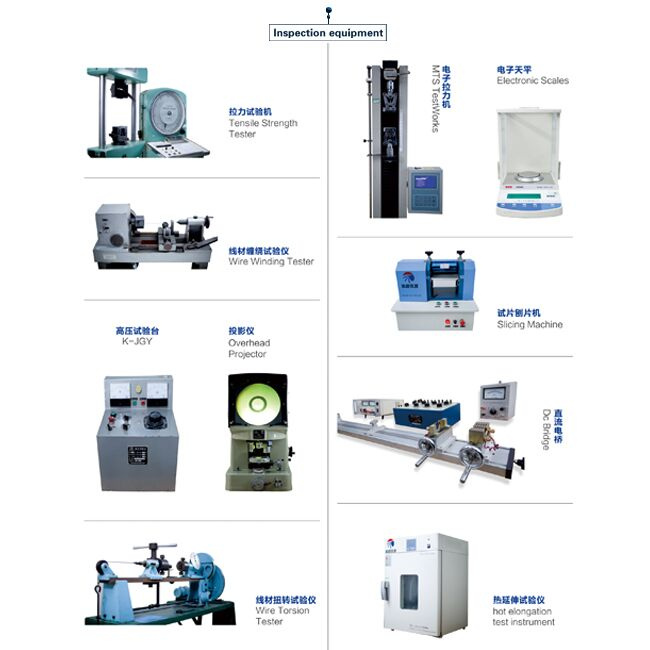

Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.
In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
