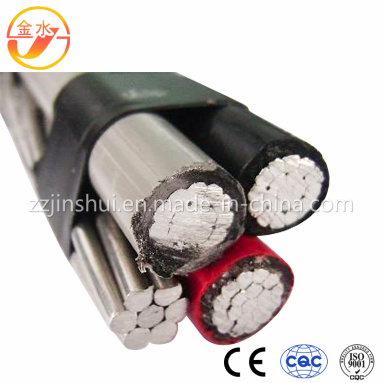

XLPE /PVC /PE Insulated Service Cable/ABC Cable /Aerial Bundle Cable
| Price: |
US $ 1-2.99/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T |
| Markets: |
North America,South America,Southeast Asia,Africa |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Brand: |
Jinshui |
Product Description
Specifications
Aluminum conductor or coper conductor,PVC or PE or XLPE insulatedd cable is used for overhead electrictity transmission
600/1000v Aerial Bundle Cable
1)Certificate:ISO9001
2)Fast delivery and best price
3)Standard:IEC,ASTM,BIS,etc
Detailed Product Description
ABC Cable,Insulated Aerial Cable,Aerial Bundled Cable
This series includes: ABC cable, * All aluminum conductors (AAC) * All aluminum alloy conductors (AAAC) * Aluminum conductor steel reinforced (ACSR) * Anti-corrosion type ACSR * All steel conductors Relative manufacturing standards: IEC61089, ASTM B231, B232, BS215, DIN48204
| Place of Origin: Henan China (Mainland) | Brand Name: Huihe | Insulation Material: PVC |
| Type: Low Voltage | Application: Overhead | Conductor Material: Aluminum |
| Jacket: PVC |
| Packaging Detail: | wooden drum |
| Delivery Detail | one month |
ABC Cable(Aerial Bounded Cable), primarily used for 120 volt overhead service applications.
1. Duplex Service Drop
(1).Application
ABC Cable Primarily used for 120 volt overhead service applications such as street lighting,outdoor lighting,and temporary service for construction.To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crosslinked polyethylene(XLP)insulated conductors.
(2).Construction
Code Word | Phase conductor | Bare Neutral Messenger | Nominal Lay Length | Weight Per 1000ft. (lbs.) | Allowable Ampacities+ |
Size (AWG) | Stranding | Insul. Thick. (Mils) | Size (AWG) | Stranding | Rated Strength (lbs.) | inches | XLP | POLY | XLP | POLY |
AAC Neutral-messenger |
Pekingese | 6 | 1 | 45 | 6 | 7 | 563 | 10.36 | 61 | 61 | 85 | 70 |
Collie | 6 | 7 | 45 | 6 | 7 | 563 | 10.36 | 64 | 64 | 85 | 70 |
Dachshund | 4 | 1 | 45 | 4 | 7 | 881 | 10.36 | 92 | 92 | 115 | 90 |
Spaniel | 4 | 7 | 45 | 4 | 7 | 881 | 10.36 | 96 | 96 | 115 | 90 |
Doberman | 2 | 7 | 45 | 2 | 7 | 1350 | 14.88 | 147 | 147 | 150 | 120 |
Malemute | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 14.88 | 234 | 234 | 205 | 160 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Code words for XLP insulated products are formed by adding/XLPto the conventional code words above(e.g.-Chihuahua/XLP)
600/1000v Aerial Bundle Cable
1)Certificate:ISO9001
2)Fast delivery and best price
3)Standard:IEC,ASTM,BIS,etc

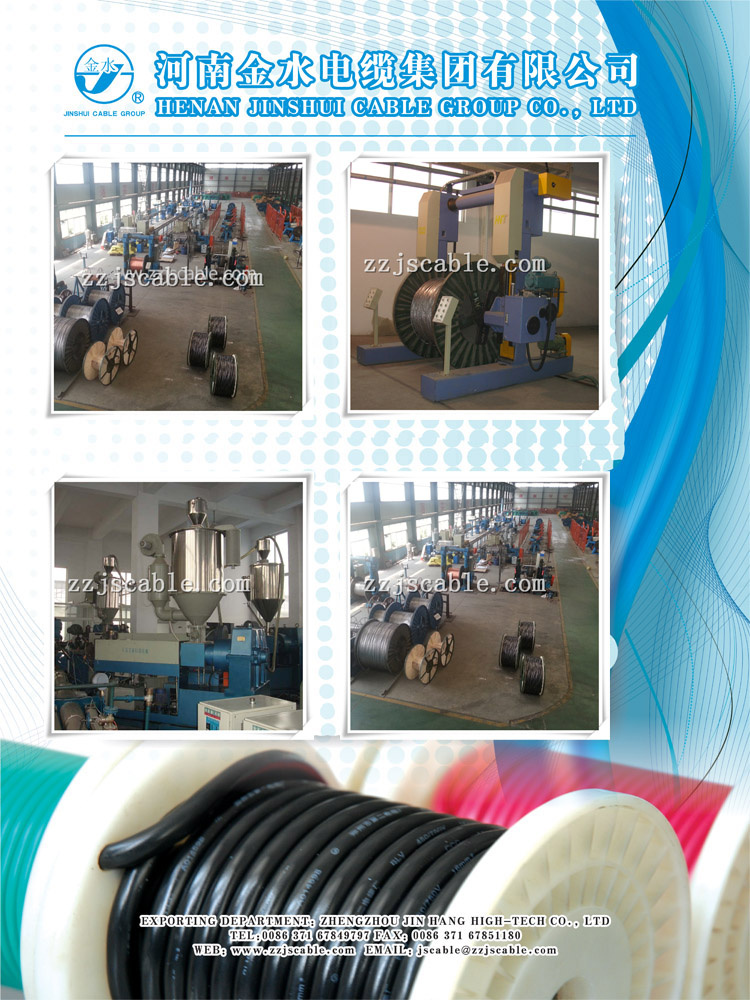

Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
