XLPE Single Core Cable UL3351

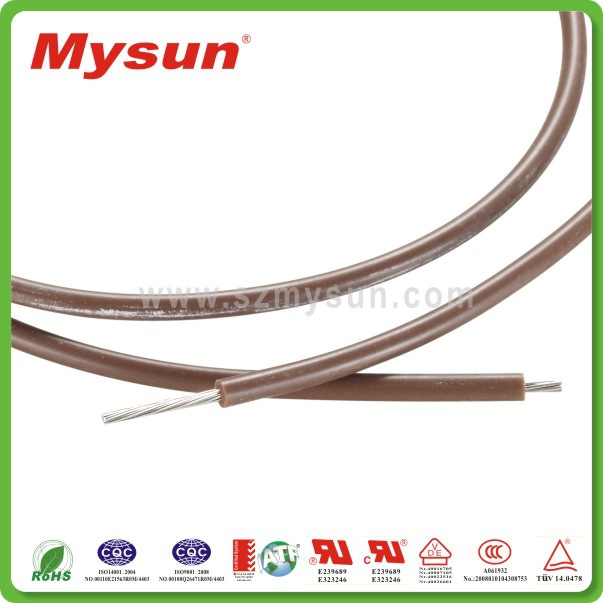

Name: XLPE Single Core Cable UL3351
Brand: all-electronics-online.com
SKU: 838477765
Availability: InStock
Rating: 4.7 (76 reviews)

Price:	US $ 0.05-0.8/Meter
Min Order:	6100/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL3351
Rated Voltage:	600V
Rated Temp:	125c
Color:	White, Black, Red, Brown, Yellow, Blue etc
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	RoHS
Application:	Internal Wire
Range Of Application:	FT2
Brand:	Mysun

Product Description

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
30	7/0.10	0.30	0.78	1.86	361	305/1000
28	7/0.127	0.38		1.94	227
26	7/0.16	0.48		2.04	143
24	11/0.16	0.60		2.16	89.3
22	17/0.16	0.76		2.32	56.4
20	21/0.18	0.94		2.49	35.2
18	16/0.254	1.18		2.73	22.2
16	26/0.254	1.50		3.06	14
14	41/0.254	1.89		3.45	8.78
12	65/0.254	2.37		3.93	5.53
10	105/0.254	3.02		4.58	3.476
9	133/0.254	3.36		4.92	2.73
8	133/0.28	3.75	1.15	6.05	2.16	100/328
6	84/0.45	4.79		7.09	1.361
4	133/0.45	6.02		8.32	0.8559
2	212/0.45	7.60	1.53	10.66	0.5384

Service
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
