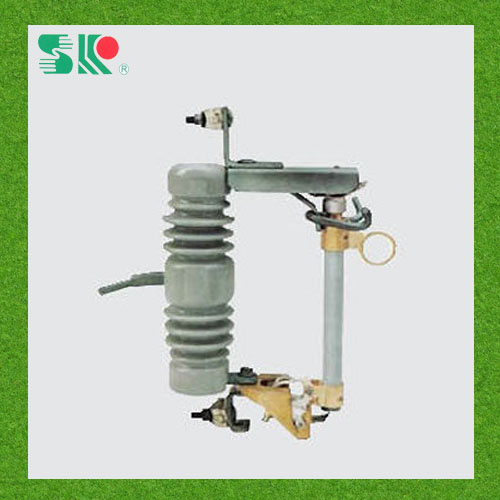

Xm-1 High Voltage Outdoor Exchange Drop-out Fuse

Name: Xm-1 High Voltage Outdoor Exchange Drop-out Fuse
Brand: all-electronics-online.com
SKU: 737620955
Availability: InStock
Rating: 4.4 (36 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Xm-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	12V
Leakage Distance:	230mm
Port:	Ningbo,Shanghai
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Shape:	as Picture Show

Product Description

Product Description

Type: XM - 1

Rated Voltage ( kV ) : 12

Rated Current ( A ) :100    200

Breaking Current ( A ) : 6300    10000

Impulse Voltage ( BIL ) : 110

Power - Frequency Withstand Voltage ( kV ) : 42

Leakage Distance ( mm ) : 230

Weight ( kg ) : 7.5    8

Dimensions ( cm ) : 41*31*12.5

Type	Rated Voltage(kV)	Rated Current(A)	Breaking Current(A)	Impulse Voltage(BIL)	Leakage Distance(mm)	Power-frequency Withstand Voltage(kV)	Weight(kg)	Dimensions(cm)
XM-1	12	100	6300	110	230	42	7.5	413112.5
XM-1	12	200	10000	110	230	42	8	413112.5

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
