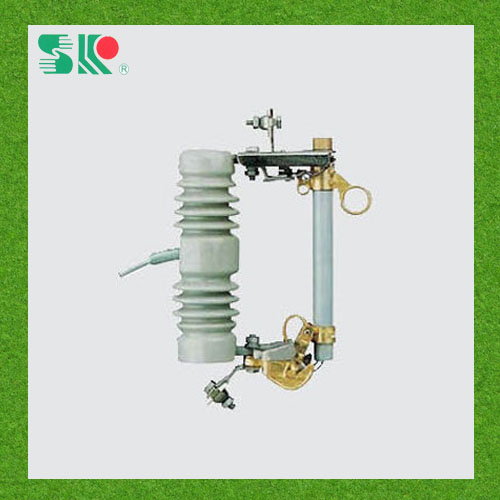

Xm-10 Cut out Fuse 12kv- 15kv

Name: Xm-10 Cut out Fuse 12kv- 15kv
Brand: all-electronics-online.com
SKU: 738114395
Availability: InStock
Rating: 5 (139 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Current Fuse
Breaking Capacity:	High
Usaga:	High Voltage

Product Description

*Quick Details

Model Name : Cut-Out Fuse Safety Standard: IEC

Model Number : XM - 10 Export Markets: Global

Breaking Capacity : High Origin: China

Rated Voltage : 12kV

*Product Description

Type: XM - 10

Rated Voltage ( kV ) : 12

Rated Current ( A ) :100 200

Breaking Current ( A ) : 6300 12500

Impulse Voltage ( BIL ) : 110

Power - Frequency Withstand Voltage ( kV ) : 42

Leakage Distance ( mm ) : 230

Weight ( kg ) : 7.5 8

Dimensions ( cm ) : 41*31*12.5

*Packaging & Delivery

Packaging Detail : According to customer's requirement

Delivery Detail : According to the order

we provide you with sincerely service, if you interest, contact us now!!!

Type	Rated Voltage(kV)	Rated Current(A)	Breaking Current(A)	Power-frequency Withstand Voltage(kV)	Impulse Voltage(BIL)	Leakage Distance(mm)	Weight(kg)	Dimensions(cm)
XM-10	12	100	6300	42	110	230	7.5	413112.5
XM-10	12	200	12500	42	110	230	8	413112.5

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
