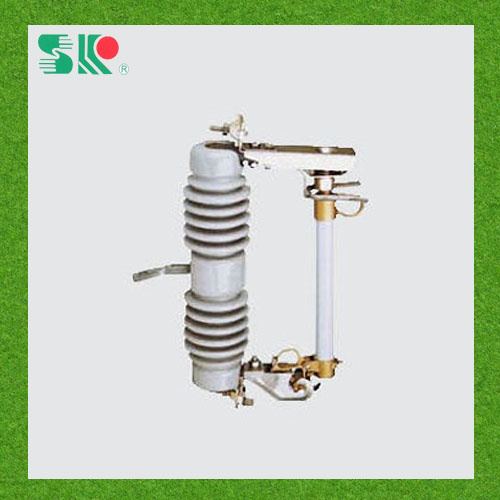

Xm-9 15kv-27kv High Voltage Cutout Fuse

Name: Xm-9 15kv-27kv High Voltage Cutout Fuse
Brand: all-electronics-online.com
SKU: 786856135
Availability: InStock
Rating: 4.5 (91 reviews)

Price:	Negotiable/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XM-9
Leakage Distance:	355mm
Voltage:	15-27kv
Material:	Ceramic,Metal
Delivery:	as Required
Usaga:	High Voltage
Breaking Capacity:	Other
Type:	Cutout Fuse

Product Description

Product Description

Type: XM-9

Rated Voltage ( kV ) : 15

Rated Current ( A ) :100 ,200

Breaking Current ( A ) : 6300,12500

Impulse Voltage ( BIL ) : 125

Power - Frequency Withstand Voltage ( kV ) : 45

Leakage Distance ( mm ) : 355

Dimensions ( cm ) : 45x34.5x12

Type	Rated voltage(KV)	Rated current(A)	Breaking current(A)	Impulse voltage(BIL)	Power-frequency withstand voltage(KV)	Leakage distance(mm)	Weight(kg)	Dimensions(cm)
XM-9	15	100	6300	125	45	355	8.8	43x34.5x12
XM-9	15	200	12500	125	45	355	8.8	43x34.5x12

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
