Xpole Plsm MCB Mini Circuit Breaker 1p 10A 10ka Miniature Circuit Breaker

Name: Xpole Plsm MCB Mini Circuit Breaker 1p 10A 10ka Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 840284625
Availability: InStock
Rating: 4.6 (80 reviews)

Price:	US $ 0.8-1.3/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLSM
Standard:	IEC/En60947
Characteristic Curve:	B, C, D
Tripping Characteristics:	Type C
Voltage:	230V/400V
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	CCC

Product Description

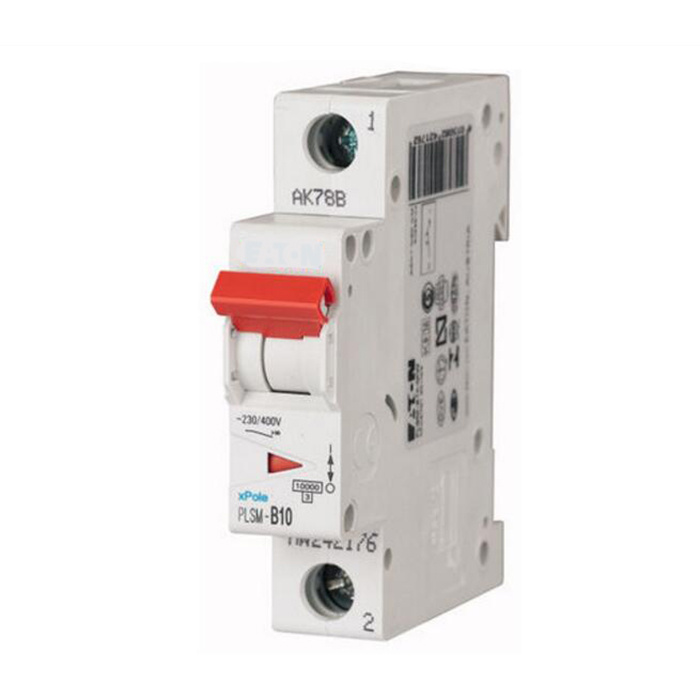

xPole PLSM MCB 1P 10A 10kA miniature circuit breaker

1.Specification

The Eaton xPole miniature circuit breaker range includes switching capacities of 4.5,
6 and 10kA in single pole and multipole versions. The Eaton xPole range also includes products and components for residual current protection and modular installation devices for remote switching, timing, signalling and surge protection.

Safety is further increased when using the Eaton xPole range of DIN IEC circuit protection devices which are of the highest quality European manufacture.

Eaton xPole MCBs and RCBOs have a ''true position contact status" coloured flag /
indication window on each pole which is directly connected to the moving contact as opposed to the toggle. Another unique feature of the xPole breaker range is the coloured toggle system which indicates the breakers current rating; making it easier to visually identify ratings of each circuit.

Width	80mm
Current Rating	1A,2A,4A,6A,10 A,16A,20A,32A,40A,50A,63A
Rated AC Voltage	230 V ac
Tripping Characteristics	Type C
Rated DC Voltage	48V
Brand	kampa
Series	PLSM
Breaking Capacity	10 kA
Range	xPole
CAD Drawing	3D CAD Model
Number of Poles	1
Length	17.5mm
Depth	75mm

2.PICTURE

3.COMPANY INFORMATION

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as

Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,

Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.

We are manufacturer and have ten years experience in Electrical industry.

4. OUR SERVERCE

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.

C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.

5. OUR ADDRESS

YUEQING KAMPA ELECTRIC CO.,LTD
ad#666,FeiLong Electric,LiuShi Town,YueQing City,ZheJiang,China
Tel:0086-577-62729846
Fax:0086-577-62780320
Website:www.china-kampa.com

Kama Electric Co., Ltd.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

As Kampa have more than 15 share-holding factories for relays, thermostat, heater, automatic voltage switch, temperature controller, push button, cable ties, cable gland, solar connector, use, circuit breaker, distribution box, High voltage transformer, vacuum circuit breaker, etc...

Meanwhile, Most of our goods have gained CE, UL, CCC, BV, SA, CB and SEMKO approval. And we can also offer OEM and ODM service because of our professional teams.

Especially speaking, Kampa CREAT Nonarc Electric Co., Ltd. In 2010.

It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.

Welcome to visit us for cooperation!

Kampa - will create a magnificent tomorrow together with you!
