XRNP 12kV-40.5kV Current-Limiting Fuse

Name: XRNP 12kV-40.5kV Current-Limiting Fuse
Brand: all-electronics-online.com
SKU: 834180165
Availability: InStock
Rating: 4.4 (41 reviews)

Price:	US $ 30/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	XRNP
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Standard:	IEC 60282-1

Product Description

High-voltage limit-current fuse for instruments transformer protection
This product can be used in indoor system of Ac50Hz and rated voltage of 3.6-40.5KV to protect the voltage mutual-inductor from over loading and circuit break.

Type	Rated Voltage(KV)	Rated current(A)	Rated brake current(KA)	Size
XRNP-12(-1)	3.6;7.2;12	0.2;0.3;0.5;1;2;3.15	50	Figure 1
XRNP-24(-1)	24	0.2;0.3;0.5;1;2;3.15	50	Figure 2
XRNP-12(-2)	12	2;3.15	50	Figure 3
XRNP-40.5(-1)	40.5	0.2;0.3;0.5;1;2;3.15	31.5	Figure 4
XRNP-40.5(-3)	40.5	0.2;0.3;0.5;1;2;3.15;4;5	31.5	Figure 5
XRNP-40.5(-4)	40.5	0.2;0.5;1;2;3.15;5;6.3	31.5	Figure6

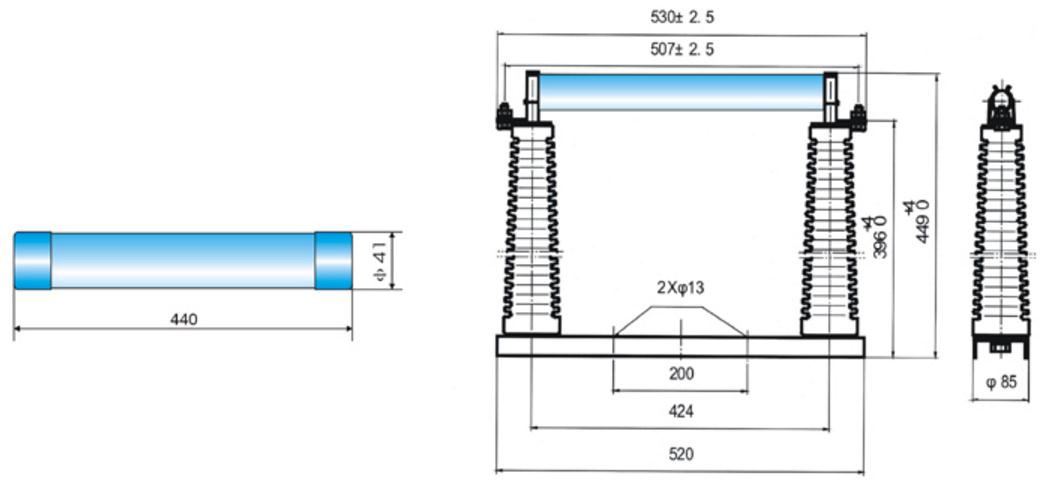

Figure 1

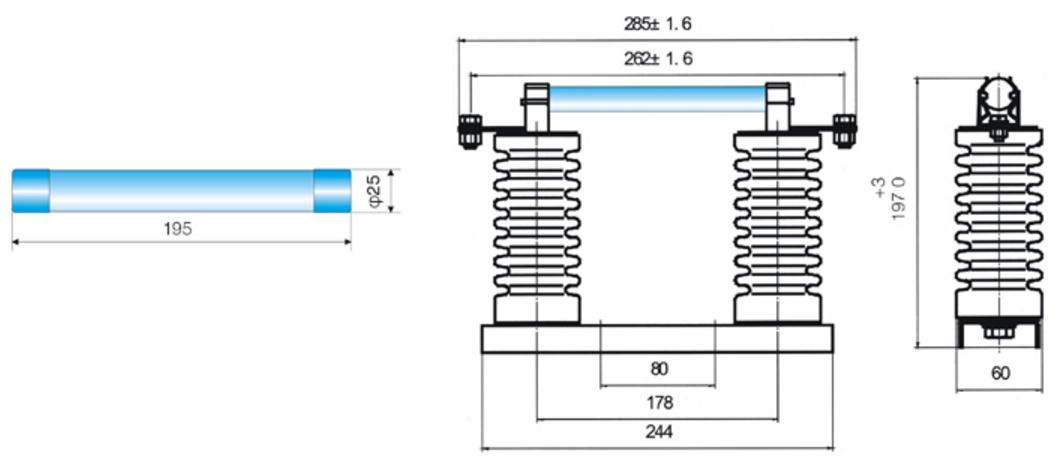

Figure 2

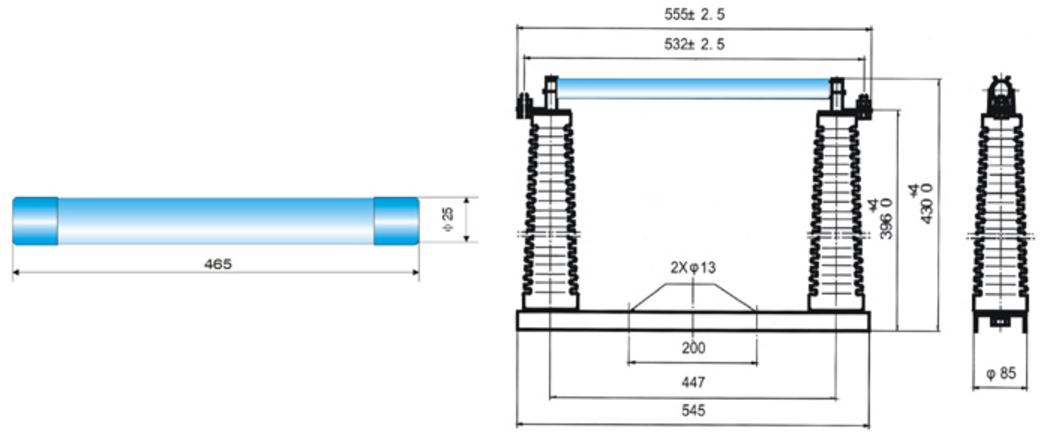

Figure 3

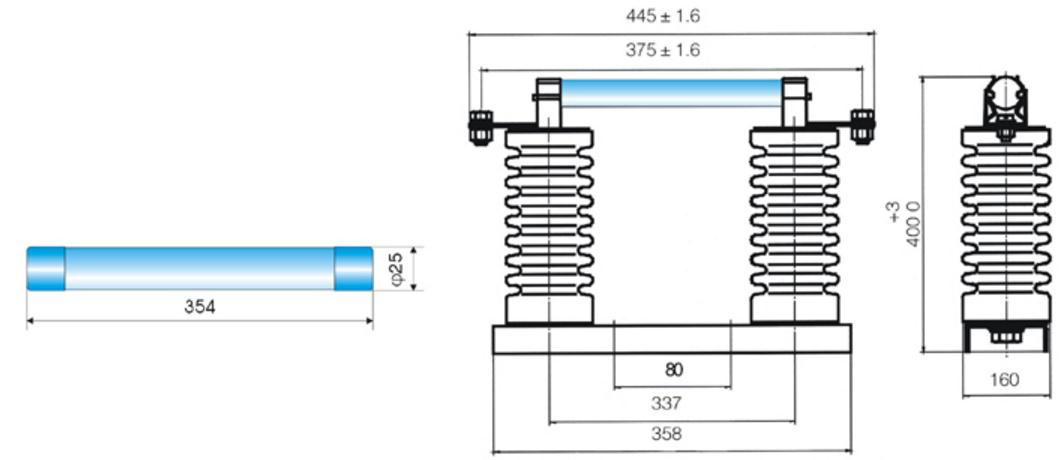

Figure 4

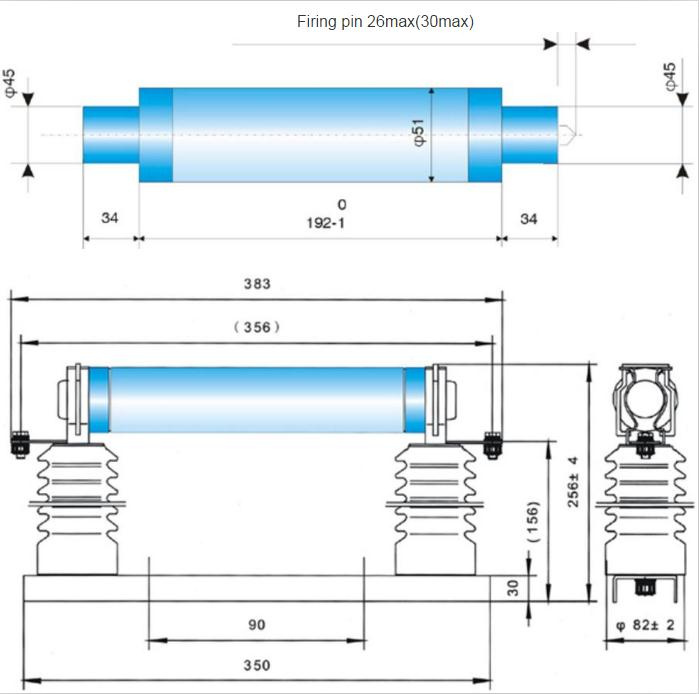

Figure 5

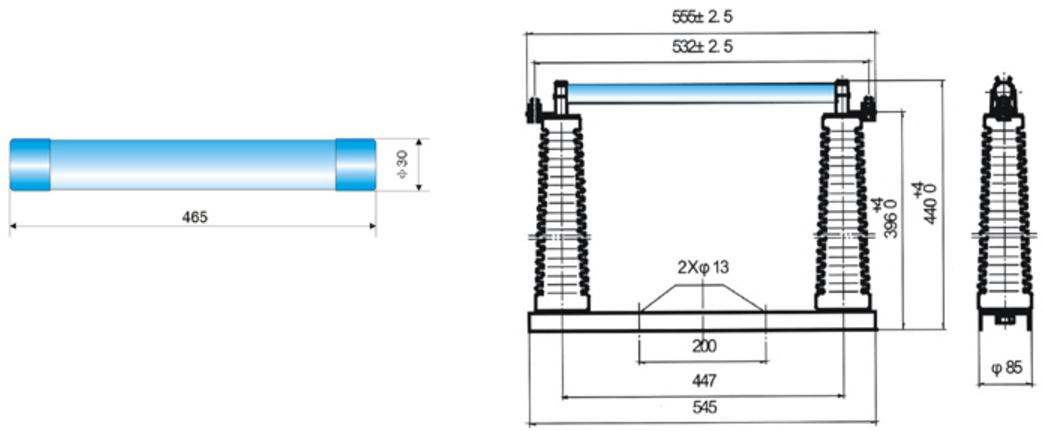

Figure 6
