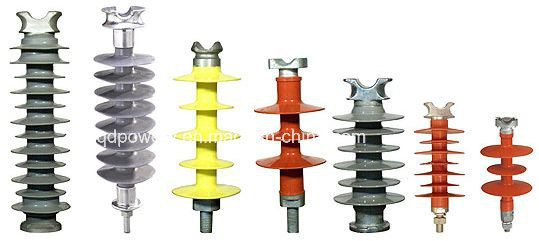

Fzsw High Voltage Composite Suspension Insulator

Name: Fzsw High Voltage Composite Suspension Insulator
Brand: all-electronics-online.com
SKU: 702991035
Availability: InStock
Rating: 4.4 (91 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FZSW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Voltage:	>100kv
Export Markets:	Global
Structure:	Composite Insulator
Material:	Rubber
Type:	Solid
Application:	Insulators
Brand:	Powery

Product Description

Product Description Insulator Service Condition 1. Altitude not exceeding 1500m. 2. Frequency of the A. C. Power supply not less than 48Hz and not exceeding 62Hz. 3. Maximum wind speed not exceeding 35m/s. 4. Earthquake intensity not exceeding 8 degrees. Advantage -Small volume and light weight, easy to transport and install. -The superior in performance and high intensity mechanical enhance reliability of power line. -Extraordinary hydrophobic and resistance to contamination. -Long-duration resistance aging and leakage tracking.

Model	System nominal voltage(KV)	Rated Voltage (KV)	Rated bending load(KN)	Rated torsional load(KN)	Lightning impulse withstand voltage (peak)≥ (KV)	Power frequency wet withstand voltage (KV)	Creepage distance (mm)	Structure Height (mm)
FZSW-10/4	10	12	4	0.6	90	40	420	215
FZSW-10/6	10	12	6	0.6	90	40	420	215
FZSW-20/8	20	24	8	0.6	130	60	780	305
FZSW-35/4	35	40.5	4	1.2	190	85	1015	445
FZSW-35/6	35	40.5	6	1.5	190	85	1015	445
FZSW-35/8	35	40.5	8	2.0	190	85	1015	445
FZSW-66/4	66	72.5	4	2.0	350	150	1780	770
FZSW-66/8	66	72.5	8	3.0	350	150	1800	770
FZSW-110/4	110	126	4	3.0	500	230	3150	1220
FZSW-110/8	110	126	8	4.0	500	230	3150	1220
FZSW-110/10	110	126	10	6.0	500	230	3150	1220
FZSW-220/4	220	252	4	3.0	1050	450	6300	2300

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
