Xt-008 Original GPS Car Tracker Support 5 Seconds Nterval Time Tracking Camera Real Time Take Photo Tracking Device

Name: Xt-008 Original GPS Car Tracker Support 5 Seconds Nterval Time Tracking Camera Real Time Take Photo Tracking Device
Brand: all-electronics-online.com
SKU: 802659305
Availability: InStock
Rating: 4.3 (120 reviews)

Price:	US $ 78-86/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XT-008
Warranty:	5 Years
Dimension:	80mm X 80mm X 26mm
Weight:	200g
Type:	GPS Tracker
Use:	Automotive&Hand Held

Product Description

Xt-008 Original GPS Car Tracker Support 5 Seconds Nterval Time Tracking Camera Real Time Take Photo Tracking Device

Applications
Rental vehicle / Fleet management etc
Covert Tracking

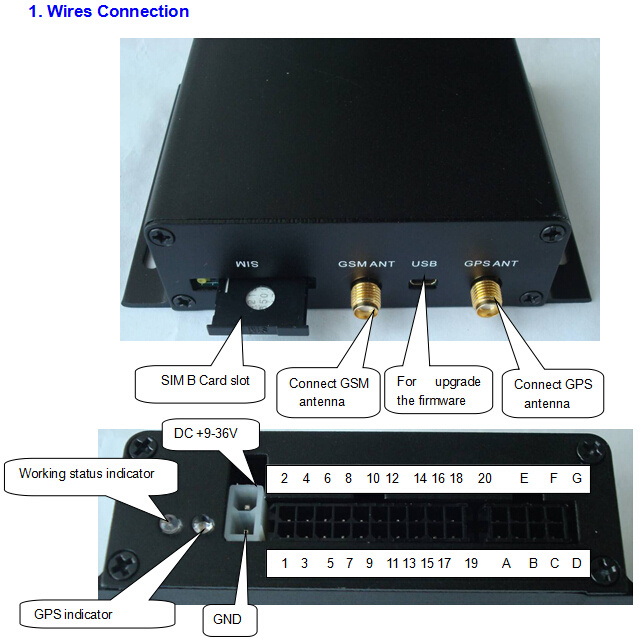

Hardware Description

1.SP - Connects the round speaker (connection is ready ,only need connect the speaker)
2.SP + Connects the round speaker (connection is ready ,only need connect the speaker)
3. MIC + microphone +(connection is ready)
4. MIC + microphone -(connection is ready)
5. GND SOS  GND (connection is ready)
6. SOS SOS +(connection is ready)
7. Oil test (analog input port )connects the black wire for the fuel sensor. Note: Please use our fuel sensor only.
8. ACC (digital input port) connect the ACC (ignition)
9. V + connects relay, connction is ready,conencts the relay,it works.
10. Output (digital output) Connects the extra relays
11. Temperature test (analog input port) connects the middle connector of the round temperature sensor.
12. Cut oil  (digital output) connects the relay, connction is reay,conencts it,it works.
13. Out A (digital output) for the extra relay.
14. Out B (digital output) Connection of RFID voice control
15. IO6 in (digital input port) connects the detective circuit of the switches for the doors and tail in the car.
16. IO5 in(digital input port) connects the detective circuit of the switches for the doors and tail in the car.
17. IO4 in (digital input port) connects the detective circuit of the switches for the doors and tail in the car.
18. IO3 in (digital input port) connects the detective circuit of the switches for the doors and tail in the car
19. IO2 in (digital input port) connects the detective circuit of the switches for the doors and tail in the ca
20. IO1 in (digital input port) connects the detective circuit of the switches for the doors and tail in the ca
Note: Two UART with the connectors of A.B C D; E F G H for 2 purposes.
A. Connect the extra camera
B. For input/output the data
Connects any conenctors ABCD or EFGH optionally, function actived.
UART1   (A.GND   B.RX   C. TX    D.+5V)
UART 2   (E.GND   F.RX    G.TX     H.+5V)

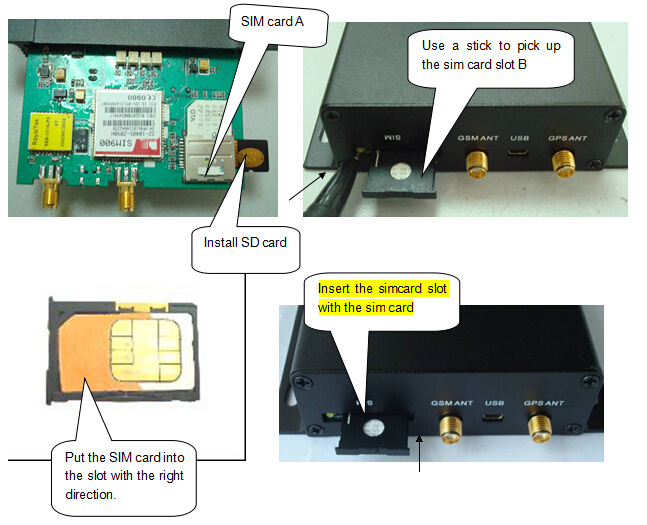

Battery and SIM Card installation
Make sure that there is no call transfer and call display is on, and PIN code off.
The SMS message must in Text format, can't be identified for PDU format.
Steps:
1.Open the rear cover, insert a SIM card to the simcard slot A. (If using one simcard,do not insert it into simcard
slot A since the default simcard is simcard B)
2.Insert the SD card
3.Use a stick to pick up the simcard slot B,insert the simcard.

Specifications
Main Function
1.Startup
2.Initialization
3.Change the password
4.Autnorization
5.Auto Track
6.GEO fence
7.Tlimit function
8.Movment alert
9.Overspeed alert
10.IMEI checking
11.Time zone setting
12.SOS button
13.SMS LINK
14.SMS ONE
15.Low battery alert
16.SMS Center ( or appointed number)
17.GSM ID(this function can be add or delect for customization.)
18.Motion sensor
19.SD Card function
20.SIM conversion from A to B
21.Monitoring and Talking Mode
22.GPRS setting
23.MMS Photograph function setting (Optional)
24.RFID function (Optional)

Package include
1pc* XT-008 original main unit
1pc* Wires
1pc* Speaker
1pc* Microphone
1pc* GSM antenna
1pc* GPS antenna
1pc* Relay
