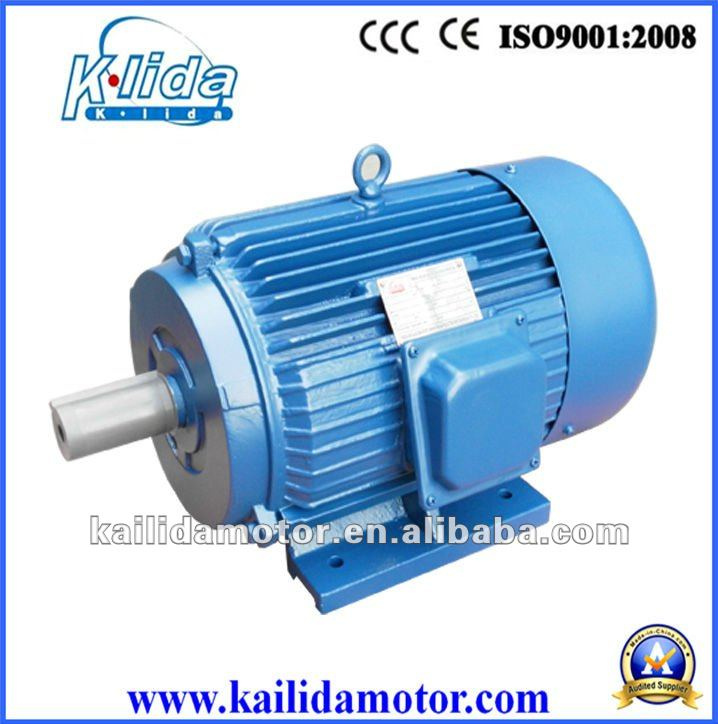

Y Series Motor Has High Efficiency, Energy Saving Conform to IEC Standard

Prod Model:	Y-180M-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Three Phase Motor
Type:	Asynchronous Motor
Frequency:	50/60Hz
Protect Feature:	Totally Enclosed
Efficiency:	Ie1
Im:	B3, B5, B35, B14, B34
Usage:	General Drive
Application:	Industrial
Operating Speed:	Low Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Protection Type
Starting Mode:	Direct on-line Starting

Product Description

Electric Motor; AC Motors; Three Phase Motor; 55kw Motor; Induction Motors; Bicycle electric motor; China electric motor; Three-phase electric motor; 3 phase motor; Explosion-proof motor; General motor; Electromotor; Synchronous motors; Three phase asynchronous motor; Machine motor; Yc series; AC geared motor; Shutter motor; Electric gate motor; Aluminium body motor; Electric motor repair; Mini motor; Aluminium motor; Induction electric motor; Geared motor; Spin motor; Washing motor; Brake motors; Electric motorcycle; Step motor; Power motor; Y series motor; High voltage motor; Electric alternator; Torque motor; Brushed motor; Brush motor; Electric brushless motor; Starting motor; Air motor; Series motor; Motor manufacturer; Bicycle motor; Micro gear motor; Capacitor start; DC geared motor; Yc motor, yb2 motor, single phase motor; Three phase motor;
IE2 ie3 standard motor; GOST anp standard motor; NEMA motor; Adjustable-speed motor

Three phase asynchronous motor is totally enclosed and fan-cooling, three-phase squirrel cage induction motor, that is newly designed in conformity with the relevant requirements of IEC standards. These motors have outstanding performance, such as high efficiency, energy-saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance, etc.

They are widely used in many places, where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machinery, etc.

TECHENICAL DATA OF Y2 SERIES
Type	Rated Power		Current	Speed	EFF	Power Factor	Tst/Tn	Ist/In	Mst/Tn	Noise	Libration grade
	kW	HP	A	r/min	(%)	COSφ				(dB)	(mm/s)
Y2-631-2	0.18	0.24	0.53	2730	65	0.8	5.5	2.2	2.2	61	1.8
Y2-632-2	0.25	0.33	0.69	2730	68	0.81	5.5	2.2	2.2	61	1.8
Y2-711-2	0.37	0.5	0.99	2750	70	0.81	6.1	2.2	2.2	64	1.8
Y2-712-2	0.55	0.75	1.39	2790	73	0.82	6.1	2.2	2.3	64	1.8
Y2-80M1-2	0.75	1	1.83	2845	75	0.83	6.1	2.2	2.3	67	1.8
Y2-80M2-2	1.1	1.5	2.6	2840	77	0.84	7.0	2.2	2.3	67	1.8
Y2-90S-2	1.5	2	3.5	2840	79	0.84	7.0	2.2	2.3	72	1.8
Y2-90L-2	2.2	3	4.9	2840	81	0.85	7.0	2.2	2.3	72	1.8
Y2-100L-2	3	4	6.4	2850	83	0.87	7.5	2.2	2.3	76	1.8
Y2-112M-2	4	5.5	8.1	2890	85	0.88	7.5	2.2	2.3	77	1.8
Y2-132S1-2	5.5	7.5	11	2910	86	0.88	7.5	2.2	2.3	80	1.8
Y2-132S2-2	7.5	10	15	2920	87	0.88	7.5	2.2	2.3	80	1.8
Y2-160M1-2	11	15	22	2935	88	0.89	7.5	2.2	2.3	86	2.8
Y2-160M2-2	15	20	29	2935	89	0.89	7.5	2.2	2.3	86	2.8
Y2-160L-2	18.5	25	35	2935	90	0.9	7.5	2.0	2.3	86	2.8
Y2-180M-2	22	30	41	2940	90	0.9	7.5	2.0	2.3	89	2.8
Y2-200L1-2	30	40	56	2945	91.2	0.9	7.5	2.0	2.3	92	2.8
Y2-200L2-2	37	50	68	2945	92	0.9	7.5	2.0	2.3	92	2.8
Y2-225M-2	45	60	82	2950	92.3	0.9	7.5	2.0	2.3	92	2.8
Y2-250M-2	55	75	100	2965	92.5	0.9	7.5	2.0	2.3	93	3.5
Y2-280S-2	75	100	136	2965	93	0.9	7.5	2.0	2.3	94	3.5
Y2-280M-2	90	125	160	2965	93.8	0.91	7.1	2.0	2.3	94	3.5
Y2-315S-2	110	150	196	2975	94	0.91	7.1	1.8	2.2	96	3.5
Y2-315M-2	132	180	234	2975	94.5	0.91	7.1	1.8	2.2	96	3.5
Y2-315L1-2	160	215	280	2975	94.6	0.92	7.1	1.8	2.2	99	3.5
Y2-315L2-2	200	270	348	2975	94.8	0.92	7.1	1.8	2.2	99	3.5
Y2-355M2-2	250	340	433	2980	95.3	0.92	7.1	1.8	2.2	103	3.5
Y2-355L2-2	315	420	544	2980	95.6	0.92	7.1	1.8	2.2	103	3.5
Y2-631--4	0.12	0.16	0.44	1320	57	0.72	4.4	2.1	2.2	52	1.8
Y2-632-4	0.18	0.24	0.62	1320	60	0.73	4.4	2.1	2.2	52	1.8
Y2-711-4	0.25	0.33	0.79	1350	65	0.74	5.2	2.1	2.2	55	1.8
Y2-712-4	0.37	0.5	1.12	1340	67	0.75	5.2	2.1	2.3	55	1.8
Y2-80M1-4	0.55	0.75	1.57	1390	71	0.75	6.0	2.4	2.3	58	1.8
Y2-80M2-4	0.75	1	2.05	1380	73	0.76	6.0	2.3	2.3	58	1.8
Y2-90S-4	1.1	1.5	2.9	1390	75	0.77	6.0	2.3	2.3	61	1.8
Y2-90L-4	1.5	2	3.7	1410	78	0.79	7.0	2.3	2.3	61	1.8
Y2-100L1-4	2.2	3	5.2	1410	80	0.81	7.0	2.3	2.3	64	1.8
Y2-100L2-4	3	4	6.8	1440	82	0.82	7.0	2.3	2.3	64	1.8
Y2-112M-4	4	5.5	8.8	1445	84	0.82	7.0	2.3	2.3	65	1.8
Y2-132S-4	5.5	7.5	11.9	1445	85	0.83	7.0	2.3	2.3	71	1.8
Y2-132M-4	7.5	10	16	1460	87	0.84	7.0	2.3	2.3	71	2.8
Y2-160M-4	11	15	23	1470	88	0.84	7.5	2.2	2.3	75	2.8
Y2-160L-4	15	20	30	1470	89	0.85	7.5	2.2	2.3	75	2.8
Y2-180M-4	18.5	25	36	1475	90.5	0.86	7.5	2.2	2.3	76	2.8
Y2-180L-4	22	30	43	1475	91	0.86	7.2	2.2	2.3	76	2.8
Y2-200L-4	30	40	58	1475	92	0.86	7.2	2.2	2.3	79	2.8
Y2-225S-4	37	50	70	1485	92.5	0.87	7.2	2.2	2.3	81	2.8
Y2-225M-4	45	60	85	1485	92.8	0.87	7.2	2.2	2.3	81	3.5
Y2-250M-4	55	75	103	1485	93	0.87	7.2	2.2	2.3	83	3.5
Y2-280S-4	75	100	140	1485	93.8	0.87	7.2	2.2	2.3	86	3.5
Y2-280M-4	90	125	197	1485	94.2	0.87	6.9	2.1	2.2	93	3.5
Y2-315S-4	110	150	201	1485	94.5	0.87	6.9	2.1	2.2	93	3.5
Y2-315M-4	132	180	241	1485	94.8	0.88	6.9	2.1	2.2	97	3.5
Y2-315L1-4	160	215	288	1485	94.9	0.88	6.9	2.1	2.2	97	3.5
Y2-315L2-4	200	270	360	1485	95	0.89	6.9	2.1	2.2	97	3.5
Y2-355M3-4	250	340	443	1490	95.3	0.9	6.8	2.1	2.2	101	3.5
Y2-355L3-4	315	420	556	1490	95.6	0.9	6.8	2.1	2.2	101	3.5
