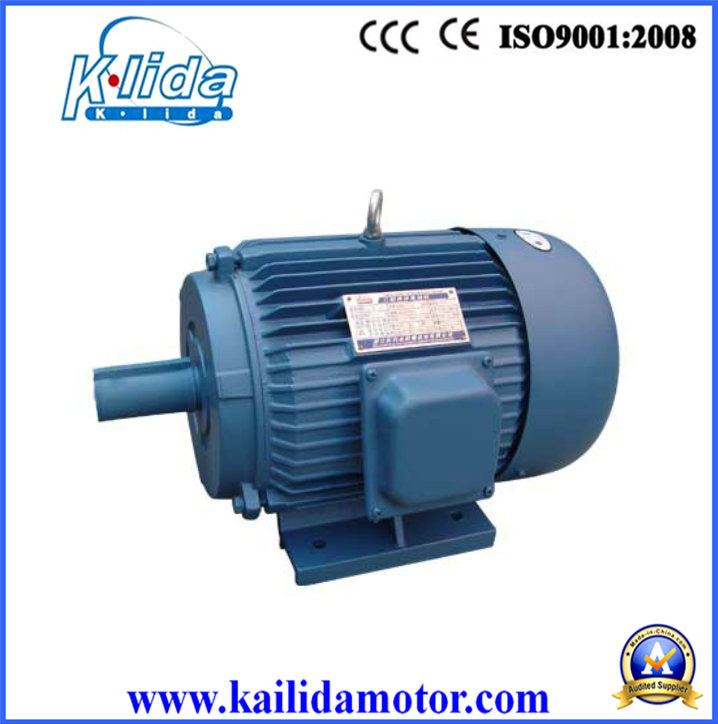

Y Series Three Phase AC Asynchronous Electric Motor

Prod Model:	Y90S-8-B3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	0.5HP/0.37kw
Protect Feature:	Enclosed
Function:	Driving
Structure:	Asynchronous Motor
Color:	on Your Request
Application:	Universal
Operating Speed:	Low Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Protection Type
Starting Mode:	Direct on-line Starting
Brand:	Kailida

Product Description

Motor Features:
Y series AC motor technical parameter
1, Frame Size: 80-315 MM;
2, Rated Output: 0.18-200 KW or 0.24-270 HP;
3, Rated Voltage: 220/380V, 380/660 V or to be your request;
4, Rated Frequency: 50 Hz, 60 Hz, 50 Hz / 60 Hz;
5, Poles: 2 / 4 / 6 / 8;
6, Speed: 590 - 2980 r/min
7, Ambient Temperature: -15° C- 40° C
8, Model of CONEECTION: Y-Connection for 3 KW motor or less
   while Delta-Connection for 4 KW motor or more;
9, Mounting: B3; B35; B34; B14; B5; V1;
10, Current: 0.83- 360 A (AC);
11, Duty: Continuous (S1);
12, Insulation Class: B / F;
13, Protection Class: IP44 / IP54 / IP55;
14, Cooling Method: ICO 141 Standards;
15, Altitude: No more than 1, 000 meters above sea level;
16, Packing: 1pc in a Strong carton several cartons on a Pallet.




Kailida motors advantage:

Prompt Quotation.
Competitive Price
Guaranteed Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.
Outstanding Finishing Surface.
Strictly and Perfect Management is guaranteed for Production.
Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
Have Rich Experience and Strong ability to Develop New Products.
Have Ability to Design the Products Based on Your Original Samples.
Our promise:
Prompt Reply to Your Inquiry within 24 Hs during Working Days.
Long Life Time Products
Products One Year Guarantee from the Date of Sales.
Professional Service in Handling Your Goods in Daily Communications
Deliver Time about 15-20 days for Normal Models.
Deliver Time about 30 days for New Models upon Receiving the New Samples.
