| Prod Model: |
Y-315L2-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380/660V or on Request |
| Frequency: |
50Hz or 60Hz |
| Duty: |
S1 |
| Insulatiom Class: |
B,F |
| Protection Class: |
IP44,IP54 |
| Cooling Method: |
IC411 |
| Species: |
Y, Y2 Series Three-Phase |
| Number Of Stator: |
Three-Phase |
| Operating Speed: |
Low Speed |
| Application: |
Universal |
| Casing Protection: |
Closed Type |
| Rotor Structure: |
Winding Type |
| Starting Mode: |
Direct on-line Starting |
| Brand: |
Kailida |
| Certification: |
CE |
Product Description
1.Product Introduction
Y series three-phase asynchronous motor,which is a basic series for general uses.This series can meet requirements for general uses at home and abroad with frame range 80-315. It's a new product with the national unified design.
Y series motor has advantages of high efficiency, energy saving, fine operation performance,small vibration,low noise,long service life,high reliability,convenient maintenance,big break away torque.Fixing measurement and power grade completely conform to IEC standard.
2.Specifications
Y series 5.5hp three phase asynchronous ac induction motors with CE certification
Technical parameters:
1.Frame size:H112
2.Rated power:4KW
3.Rated voltage:380/660V or on request
4.Rated Frequency: 50/60 Hz;
5. Poles: 2
6. Speed: 2880r/min
7. Ambient Temperature: -15°C-40°C
8. Model of CONEECTION: Y-Connection for under 3 KW motor while Delta-Connection for above 4 KW motor;
9. Mounting: B3; B35; B34; B14; B5; V1;
10. Current: 8.2A (AC);
11. Duty: continuous (S1);
12. Insulation Class: B;
13. Protection Class: IP44;
14. Cooling Method: IC411;
15. Altitude: No more than 1,000 meters above sea level;
16. Packing: 63-132 frame be packaged by carton&pallets
160-355 frame be packaged by plywood case;
3.Kailida Motors Factory Advantages.
· Prompt Quotation.
· Competitive Price
· Guaranteed Quality
· Timely Delivery.
· 100% Tested.
· Sincere and Professional Service.
· Outstanding Finishing Surface.
· Strictly and Perfect Management is guaranteed for Production.
· Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
· Have Rich Experience and Strong ability to Develop New Products.
· Have Ability to Design the Products Based on Your Original Samples.
WHAT WE DO AT KAILIDA
· Stamping of lamination
· Rotor die-casting
· Winding and inserting – both manual and semi-automatically
· Vacuum varnishing
· Machining shaft, housing, end shields, etc…
· Rotor balancing
· Motor assembly
· Painting – both wet paint and powder coating
· Packing
· Inspecting spare parts every processing
· 100% test after each process and final test before packing.
WHAT KAILIDA CAN DO FOR CUSTOMERS
· Kailida supplies standard products to customers.
· Kailida supplies standard products under customers' brands and packaging, etc
· Kailida R&D department develops any new products together with the customers.
We Promise you all the time after you working with us for Win-Win Business.
· Prompt Reply to Your Inquiry within 24 Hs during Working Days.
· Long Life Time Products
· Products One Year Guarantee from the Date of Sales.
· Professional Service in Handling Your Goods in Daily Communications
· Deliver Time about 15-20 days for Normal Models.
· Deliver Time about 30 days for New Models upon Receiving the New Samples.

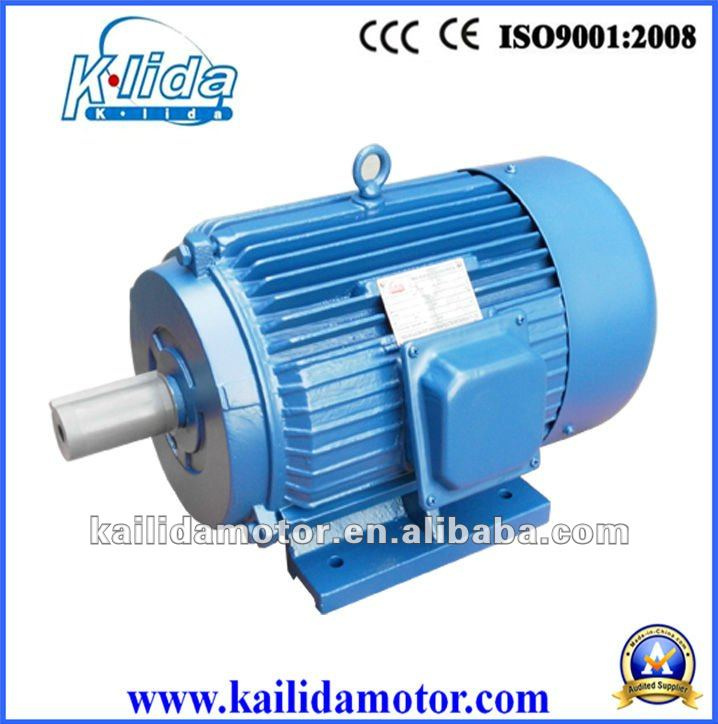

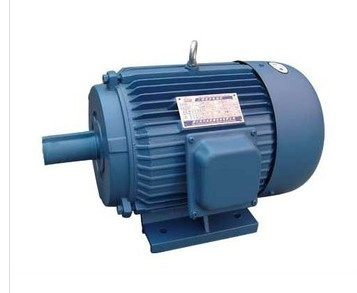

4.Motor Pictures
Zhejiang Kailida Explosion-Proof Electromechanical Co., Ltd. is an advanced manufacturer integrating design, production, sales and service. We specialize in developing & manufacturing electric motor, explosion-proof motors. We make progress and improvement constantly with complete quality checking facilities and strict quality controlling feedback system.
Main products include YB2, YBFseries explosion-proof motor. YS, Y, Y2, Y3, YX3, YSF series three phase electric motor, YC, YY, YL series single phase motor. We have passed ISO9001: 2000 quality management system, CCC, EXDI, EXDII BT4, MA and CE certification. Our products have been distributed to Europe, Middle East, southeast Asia, Africa, and so on.
We believe "best quality, highest reputation, important clients". We offer high quality products with competitive price and best service. We sincerely hope to establish steady cooperation with customers all of the world based on mutual benefits.
