Y Series Three Phase Induction Electric Motor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
electric motor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Squirrel Cage Motor |
| Protect Feature: |
Enclosed |
| Structure: |
Asynchronous Motor |
| Phase: |
Three Phase |
| Color: |
Grey or Other |
| Shape: |
Linear |
| Scope Of The Center Height: |
H63~H355 |
| Work Mode: |
S1 |
| Protection Class: |
IP55 |
| Insulation Class: |
F |
| Function: |
Driving |
| Number Of Stator: |
Three-Phase |
| Number Of Poles: |
2, 4, 6, 8, 10, 12 |
| Brand: |
Pinnxun |
| Certification: |
CE, ISO, CCC |
Product Description

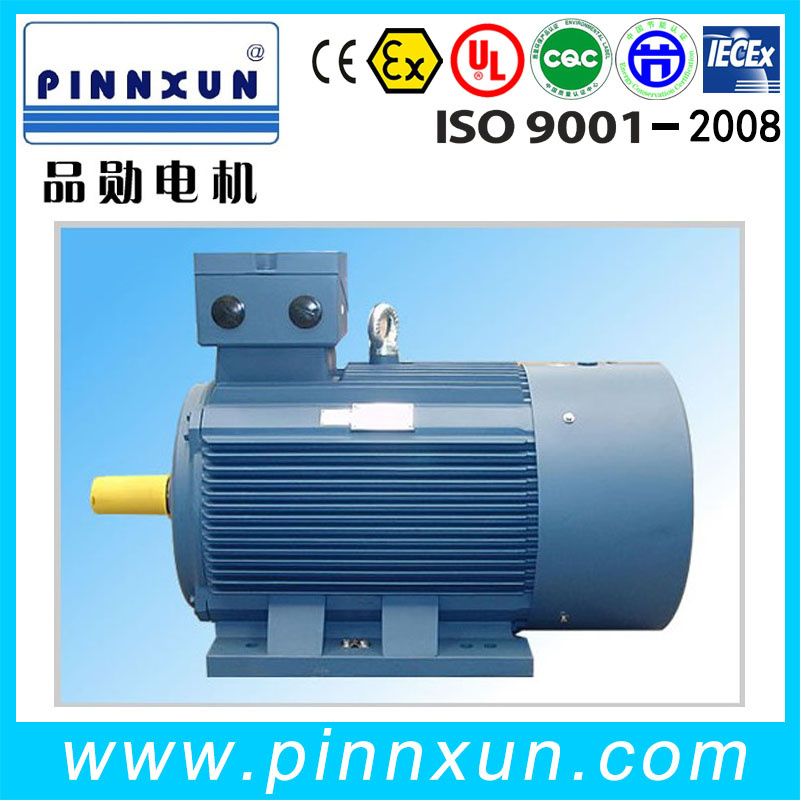

Y2 series ac motor for pump and fan,blower
Feature and usage:
Y series three phase electric motor is designed in conformity with the relevant requirements of IEC and DIN42673 standards. It's totally enclosed and fan-cooling three-phase squirrel cage induction motors, having outstanding performance, such as high efficiency, energy-saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance, etc.
Y series motors are widely used in many places, where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc.

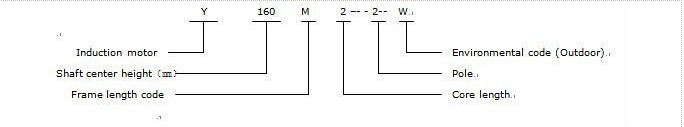

Model Explanation
Frame sizes: 63-315 2) Rated power: 0.12-200kw
Rated voltage: 220/380v,380/660v
Frequency: 50Hz, 60Hz
Protection class: IP44 ,IP54
Insulation class: B,F
Materials: Cast iron, aluminum (FRAME 63-160)
EFF: EFF3, EFF2, EFF1
Poles: 2, 4, 6, 8
Cooling method: IC411 (total-enclosed fan-cooled type)
Mounting types: IMB3 ,IMB5,IMB35,IMB34,IMB14
Operating mode: S1
Connection: "Y" type for 3kW and downwards, "D"type for 4kW and upwards
Ambient temperature: -15C < θ < 40C
The altitude should be lower than 1, 000m
Relative humidity: Not higher than 90%
Special motors can be designed according to
Inner packing:
Frame 63-112: Foam boxes
Frame 132-315: Wooden boxes
Company Information
Packing & Shipping
Our Servies
WE ARE READY
Q: Do you offer OEM service?
A: Yes.
Q: What is your payment term?
A: 30% T/T in advance, 70% before delivery. Or irrevocable L/C.
Q: What is your lead time?
A: About 10-45 days after receiving deposit or original L/C.
Q: What certifiicate do you have?
A: We have CE, ISO,CCC and so on.
WHY CHOOSE US
WHAT WE DO AT PINNXUN
- Stamping of lamination
- Rotor die-casting
- Winding and inserting - both manual and semi-automatically
- Vacuum varnishing
- Machining shaft, housing, end shields, etc
- Rotor balancing
- Painting - both wet paint and powder coating
- Motor assembly
- Packing
- Inspecting spare parts every processing
- 100% test after each process and final test before packing.
WHAT PINNXUN CAN DO FOR CUSTOMERS
- PINNXUN supplies standard products to customers.
- PINNXUN supplies standard products under customers' brands and packaging, etc
- PINNXUN R&D department develops any new products together with the customers.
|
|
|
Structure Description |
|
Y2 series ac induction motor mounting details:
|
Schematic diagram |
|
|
|
|
|
mounting type |
B3 |
B35 |
B5 |
V1 |
|
mounting Discribtion |
frame with feet,end-shield without flange |
frame with feet,end-shield with flange |
frame without feet,end-shield with flange |
frame without feet,end-shield with flange |
Suitable frame |
H63-315 |
H63-315 |
H63-280 |
H63-315 |
Y series motors are totally enclosed fan cold(TEFC).
5.bearing type-table 2
table 2
|
|
|
|
|
Horizontal |
vertical |
motor
frame |
DE side |
N-DE side |
DE side |
N-DE side |
|
63 |
6201-2RZ/Z2 |
6201-2RZ/Z2 |
6201-2RZ/Z2 |
6201-2RZ/Z2 |
|
71 |
6202-2RZ/Z2 |
6202-2RZ/Z2 |
6202-2RZ/Z2 |
6202-2RZ/Z2 |
|
80 |
6204-2RZ/Z2 |
6204-2RZ/Z2 |
6204-2RZ/Z2 |
6204-2RZ/Z2 |
|
90 |
6205-2RZ/Z2 |
6205-2RZ/Z2 |
6205-2RZ/Z2 |
6205-2RZ/Z2 |
|
100 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
|
112 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
|
132 |
6208-2RZ/Z2 |
6208-2RZ/Z2 |
6208-2RZ/Z2 |
6208-2RZ/Z2 |
|
160 |
6209-2RZ/Z2 |
6209-2RZ/Z2 |
6209-2RZ/Z2 |
6209-2RZ/Z2 |
|
180 |
6211/Z2 |
6211/Z2 |
6211/Z2 |
6211/Z2 |
|
200 |
6312/Z2 |
6312/Z2 |
6312/Z2 |
6312/Z2 |
|
225(2P) |
6312/Z2 |
6312/Z2 |
6312/Z2 |
6312/Z2 |
|
225(4-8P) |
6313/Z2 |
6212/Z2 |
6313/Z2 |
6312/Z2 |
|
250(2P) |
6313/Z2/Z2 |
6313/Z1 |
6313/Z2 |
6313/Z1 |
|
250(4-8P) |
6314/Z1 |
6213/Z1 |
6314/Z1 |
6313/Z1 |
|
280(2P) |
6314/Z1 |
6313/Z1 |
6314/Z1 |
6313/Z1 |
|
280(4P) |
6317/Z1 |
6313/Z1 |
6317/Z1 |
6313/Z1 |
|
315(2P) |
6317/Z1 |
6317/Z1 |
6317/Z1 |
6317/Z1 |
|
315(4-8P) |
NU319 |
6319/Z1 |
NU319 |
6319/Z1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
