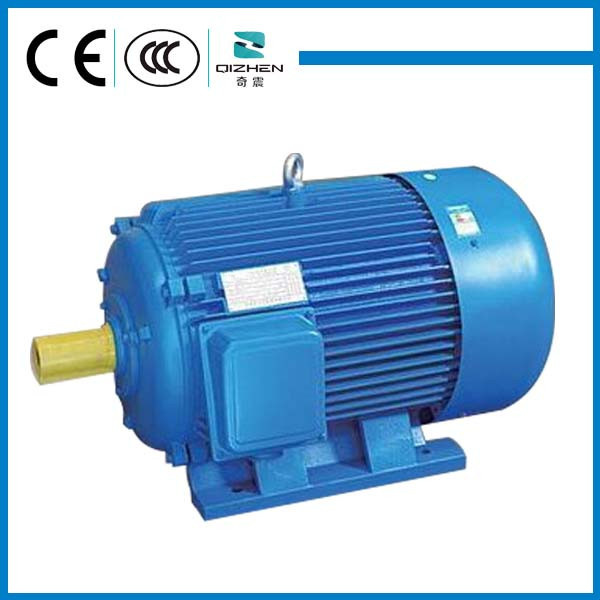

Y Series Three Phase Induction Motor
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Y63~Y355 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Frame: |
63~355 |
| Housing: |
Cast Iron / Aluminium |
| Protection Class: |
IP54 or IP55 |
| Insulation Class: |
F |
| Core Wire: |
100% Copper Wire |
| Poles: |
2, 4, 6, 8, 10 Poles |
| Duty: |
S1 |
| Mounting: |
B3 B5 B35 |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Protection Type |
| Starting Mode: |
Direct on-line Starting |
| Brand: |
Qizhen |
Product Description
Y series motor is totally enclosed and fan-cooled, three phase squire cage induction motor,that is newly designed in conformity with the relevant requirements of IEC standards.Y series motor have outstanding performance,such as high efficiency, energy-saving,high starting torque,low noise,little vibration, reliable operation,easy maintenance,etc.Y series motors are widely used in places where not exists combustible, explosive or corrosive gas, and without any special requirements,such as machine tools, pumps, fans,transport machinery,mixer,agriculture machinery,food machines, etc.Protection Class:IP44/IP54/IP55 Cooling Type:IC0141 Insulation Class:B or F
Rated Frequency:50Hz(60Hz) Rated Volt:380V,230/380V Operation Type:S1
| Overall & Installation Dimensions |
| Farame size | Mounting Dimensions(mm) | Overall Dimension(mm) |
| A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | AB | AC | AD | HD | HF | L |
| Y80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 165 | 175 | 150 | 175 | 185 | 290 |
| Y90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 195 | 160 | 195 | 195 | 315 |
| Y90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 195 | 160 | 195 | 195 | 340 |
| Y100L | 160 | 140 | 70 | 28 | 60 | 8 | 24 | 100 | 12 | 215 | 180 | 250 | 0 | 15 | 4.0 | 205 | 215 | 180 | 245 | 245 | 380 |
| Y112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 215 | 180 | 250 | 0 | 15 | 4.0 | 245 | 240 | 190 | 265 | 265 | 400 |
| Y132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 15 | 4.0 | 280 | 275 | 210 | 315 | 315 | 475 |
| Y132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 15 | 4.0 | 280 | 275 | 210 | 315 | 315 | 515 |
| Y160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 300 | 250 | 350 | 0 | 19 | 5.0 | 325 | 325 | 255 | 385 | 385 | 605 |
| Y160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 300 | 250 | 350 | 0 | 19 | 5.0 | 325 | 325 | 255 | 385 | 385 | 650 |
| Y180M | 279 | 241 | 121 | 48 | 110 | 14 | 42.5 | 180 | 15 | 300 | 250 | 350 | 0 | 19 | 5.0 | 355 | 360 | 285 | 430 | 430 | 670 |
| Y180L | 279 | 279 | 121 | 48 | 110 | 14 | 42.5 | 180 | 15 | 300 | 250 | 350 | 0 | 19 | 5.0 | 355 | 360 | 285 | 430 | 430 | 710 |
| Y200L | 318 | 305 | 133 | 55 | 110 | 16 | 49 | 200 | 19 | 350 | 300 | 400 | 0 | 19 | 5.0 | 395 | 400 | 310 | 475 | 475 | 770
|
| Type | Power | Voltage
(V) | Current
(A) | Speed
(r/min) | Eff
(%) | Power Factor
(cos¢) | | | |
| Hp | kW |
| Y80M1-2 | 1 | 0.75 | 380 | 1.8 | 2830 | 75 | 0.84 | 2.2 | 6.5 | 2.3 |
| Y80M2-2 | 1.5 | 1.1 | 380 | 2.5 | 2830 | 77 | 0.86 | 2.2 | 7.0 | 2.3 |
| Y90S-2 | 2 | 1.5 | 380 | 3.4 | 2840 | 78 | 0.85 | 2.2 | 7.0 | 2.3 |
| Y90L-2 | 3 | 2.2 | 380 | 4.8 | 2840 | 80.5 | 0.86 | 2.2 | 7.0 | 2.3 |
| Y100L-2 | 4 | 3 | 380 | 6.4 | 2870 | 82 | 0.87 | 2.2 | 7.0 | 2.3 |
| Y112M-2 | 5.5 | 4 | 380 | 8.2 | 2890 | 85.5 | 0.87 | 2.2 | 7.0 | 2.3 |
| Y132S2-2 | 7.5 | 5.5 | 380 | 11.1 | 2900 | 85.5 | 0.88 | 2.0 | 7.0 | 2.3 |
| Y132S2-2 | 10 | 7.5 | 380 | 15.0 | 2900 | 86.2 | 0.88 | 2.0 | 7.0 | 2.3 |
| Y160M1-2 | 15 | 11 | 380 | 21.8 | 2930 | 0.88 | 2.0 | 7.0 | 2.3 |
| Y160M2-2 | 20 | 15 | 380 | 29.4 | 2930 | 88.2 | 0.88 | 2.0 | 7.0 | 2.3 |
| Y160L-2 | 25 | 18.5 | 380 | 35.5 | 2930 | 89 | 0.89 | 2.0 | 7.0 | 2.2 |
| Y180M-2 | 30 | 22 | 380 | 42.2 | 2940 | 89 | 0.89 | 2.0 | 7.0 | 2.2 |
| Y200L1-2 | 40 | 30 | 380 | 56.9 | 2950 | 90 | 0.89 | 2.0 | 7.0 | 2.2 |
| Y200L2-2 | 50 | 37 | 380 | 69.8 | 2950 | 90.5 | 0.89 | 2.0 | 7.0 | 2.2 |
| Y80M1-2 | 0.75 | 0.55 | 380 | 1.5 | 1390 | 73 | 0.76 | 2.4 | 6.0 | 2.3 |
| Y80M2-2 | 1 | 0.75 | 380 | 2.0 | 1390 | 74.5 | 0.76 | 2.3 | 6.0 | 2.3 |
| Y90S-4 | 1.5 | 1.1 | 380 | 2.8 | 1400 | 78 | 0.78 | 2.3 | 6.5 | 2.3 |
| Y90L-4 | 2 | 1.5 | 380 | 3.7 | 1400 | 79 | 0.79 | 2.3 | 6.5 | 2.3 |
| Y100L1-4 | 3 | 2.2 | 380 | 5.0 | 1430 | 81 | 0.82 | 2.2 | 7.0 | 2.3 |
| Y100L2-4 | 4 | 3 | 380 | 6.8 | 1430 | 82.5 | 0.81 | 2.2 | 7.0 | 2.3 |
| Y112M-4 | 5.5 | 4 | 380 | 8.8 | 1440 | 84.5 | 0.82 | 2.2 | 7.0 | 2.3 |
| Y132S-4 | 7.5 | 5.5 | 380 | 11.7 | 1440 | 85.5 | 0.84 | 2.2 | 7.0 | 2.3 |
| Y132SM-4 | 10 | 7.5 | 380 | 15.4 | 1440 | 87 | 0.85 | 2.2 | 7.0 | 2.3 |
| Y160M-4 | 15 | 11 | 380 | 22.6 | 1460 | 88 | 0.84 | 2.2 | 7.0 | 2.3 |
| Y160M-4 | 20 | 15 | 380 | 30.3 | 1460 | 88.5 | 0.85 | 2.2 | 7.0 | 2.3 |
| Y180M-4 | 25 | 18.5 | 380 | 35.9 | 1470 | 91 | 0.86 | 2.0 | 7.0 | 2.2 |
| Y180L-4 | 30 | 22 | 380 | 42.5 | 1470 | 91.5 | 0.86 | 2.0 | 7.0 | 2.2 |
| Y200L-4 | 40 | 30 | 380 | 56.8 | 1470 | 92.2 | 0.87 | 2.0 | 7.0 | 2.2 |
| Y90S-6 | 1 | 0.75 | 380 | 2.3 | 910 | 72.5 | 0.70 | 2.0 | 5.5 | 2.2 |
| Y90L-6 | 1.5 | 1.1 | 380 | 3.2 | 910 | 73.5 | 0.72 | 2.0 | 5.5 | 2.2 |
| Y100L-6 | 2 | 1.5 | 380 | 4.0 | 940 | 77.5 | 0.74 | 2.0 | 6.0 | 2.2 |
| Y112M-6 | 3 | 2.2 | 380 | 5.6 | 940 | 80.5 | 0.74 | 2.0 | 6.0 | 2.2 |
| Y132S-6 | 4 | 3 | 380 | 7.2 | 960 | 83 | 0.76 | 2.0 | 6.5 | 2.2 |
| Y132M1-6 | 5.5 | 4 | 380 | 9.4 | 960 | 84 | 0.77 | 2.0 | 6.5 | 2.2 |
| Y1322-6 | 7.5 | 5.5 | 380 | 12.6 | 960 | 85.3 | 0.78 | 2.0 | 6.5 | 2.0 |
| Y160M-6 | 10 | 7.5 | 380 | 17.0 | 970 | 86 | 0.78 | 2.0 | 6.5 | 2.0 |
| Y160L-6 | 15 | 11 | 380 | 24.6 | 970 | 87 | 0.78 | 2.0 | 6.5 | 2.0 |
| Y180L-6 | 20 | 15 | 380 | 31.4 | 970 | 89.5 | 0.81 | 1.8 | 6.5 | 2.0 |
| Y200L1-6 | 25 | 18.5 | 380 | 37.7 | 970 | 89.8 | 0.83 | 1.8 | 6.5 | 2.0 |
| Y200L2-6 | 30 | 22 | 380 | 44.6 | 970 | 90.2 | 0.83 | 1.8 | 6.5 | 2.0 |
| Y160M1-8 | 5.5 | 4 | 380 | 9.9 | 720 | 84 | 0.73 | 2.0 | 6.0 | 2.0 |
| Y160M2-8 | 7.5 | 5.5 | 380 | 13.3 | 720 | 85 | 0.74 | 2.0 | 6.0 | 2.0 |
| Y160L-8 | 10 | 7.5 | 380 | 17.3 | 720 | 86 | 0.75 | 2.0 | 6.5 | 2.0 |
| Y180L-8 | 15 | 11 | 380 | 24.8 | 730 | 87.5 | 0.77 | 1.7 | 6.0 | 2.0 |
| Y200L-8 | 20 | 15 | 380 | 34.1 | 730 | 88 | 0.76 | 1.8 | 6.0 | 2.0 |
