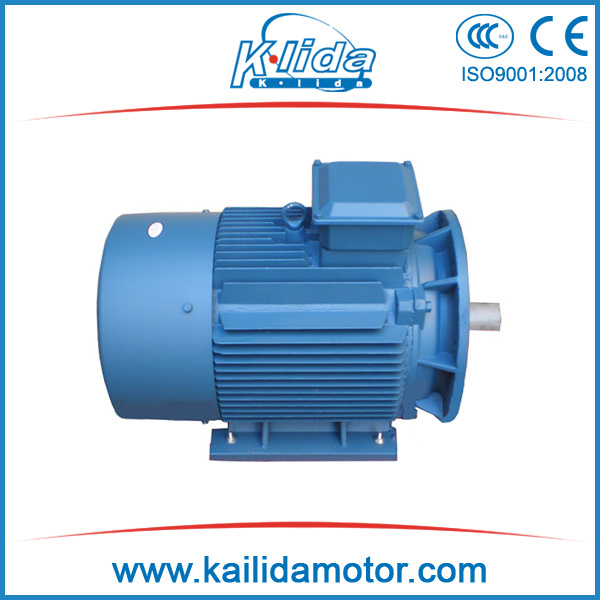

Y2 B35 45kw Three Phase AC Induction Motor

Name: Y2 B35 45kw Three Phase AC Induction Motor
Brand: all-electronics-online.com
SKU: 626851785
Availability: InStock
Rating: 4.8 (92 reviews)

Price:	US $ 576-599/Piece
Trade Terms:	FOB,CIF,others
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y2-225M-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	K.Lida or OEM
Type:	Asynchronous Motor
Frequency:	50Hz/60Hz
Output Power:	45kw
Protect Feature:	Totally Enclosed
Phase:	Three-Phase
AC Voltage:	380V/660V
Place Of Origin:	Zhejiang, China (Mainland)
Application:	Household Appliances
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	y-δ Starting
Brand:	Klida
Certification:	Ce

Product Description

Technical parameter
1,Frame size:H56-355;
2,Power:0.12-355Kw;
3,Voltage:220-660V;
4, Rated Frequency: 50 Hz / 60 Hz;
5, Poles: 2 / 4 / 6 / 8 / 10
6, Speed: 590 -2980 r/min
7, Ambient Temperature: -15°C-40°C
8, Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9, Mounting:  B3; B5; B35; B14; B34; V1;
10, Current: 1.5-465 A (AC);
11, Duty: continuous (S1);
12, Insulation Class: F;
13, Protection Class:  IP54;
14,Frame material: aluminium body(56-132 frame), cast iron(71-355 frame)
15, Cooling Method: IC411 Standards;
16, Altitude: No more than 1,000 meters above sea level;
17, Packing: 63-132 frame be packaged by carton&pallet
     160-355 frame be packaged by plywood case;

Type	Rated Power		Current	Speed	EFF	Power Factor
Type	kW	HP	A	r/min	(%)	COSφ
Y2-631-2	0.18	0.24	0.53	2730	65	0.8
Y2-632-2	0.25	0.33	0.69	2730	68	0.81
Y2-711-2	0.37	0.5	0.99	2750	70	0.81
Y2-712-2	0.55	0.75	1.39	2790	73	0.82
Y2-80M1-2	0.75	1	1.83	2845	75	0.83
Y2-80M2-2	1.1	1.5	2.6	2840	77	0.84
Y2-90S-2	1.5	2	3.5	2840	79	0.84
Y2-90L-2	2.2	3	4.9	2840	81	0.85
Y2-100L-2	3	4	6.4	2850	83	0.87
Y2-112M-2	4	5.5	8.1	2890	85	0.88
Y2-132S1-2	5.5	7.5	11	2910	86	0.88
Y2-132S2-2	7.5	10	15	2920	87	0.88
Y2-160M1-2	11	15	22	2935	88	0.89
Y2-160M2-2	15	20	29	2935	89	0.89
Y2-160L-2	18.5	25	35	2935	90	0.9
Y2-180M-2	22	30	41	2940	90	0.9
Y2-200L1-2	30	40	56	2945	91.2	0.9
Y2-200L2-2	37	50	68	2945	92	0.9
Y2-225M-2	45	60	82	2950	92.3	0.9
Y2-250M-2	55	75	100	2965	92.5	0.9
Y2-280S-2	75	100	136	2965	93	0.9
Y2-280M-2	90	125	160	2965	93.8	0.91
Y2-315S-2	110	150	196	2975	94	0.91
Y2-315M-2	132	180	234	2975	94.5	0.91
Y2-315L1-2	160	215	280	2975	94.6	0.92
Y2-315L2-2	200	270	348	2975	94.8	0.92
Y2-355M2-2	250	340	433	2980	95.3	0.92
Y2-355L2-2	315	420	544	2980	95.6	0.92
Y2-631--4	0.12	0.16	0.44	1320	57	0.72
Y2-632-4	0.18	0.24	0.62	1320	60	0.73
Y2-711-4	0.25	0.33	0.79	1350	65	0.74
Y2-712-4	0.37	0.5	1.12	1340	67	0.75
Y2-80M1-4	0.55	0.75	1.57	1390	71	0.75
Y2-80M2-4	0.75	1	2.05	1380	73	0.76
Y2-90S-4	1.1	1.5	2.9	1390	75	0.77
Y2-90L-4	1.5	2	3.7	1410	78	0.79
Y2-100L1-4	2.2	3	5.2	1410	80	0.81
Y2-100L2-4	3	4	6.8	1440	82	0.82
Y2-112M-4	4	5.5	8.8	1445	84	0.82
Y2-132S-4	5.5	7.5	11.9	1445	85	0.83
Y2-132M-4	7.5	10	16	1460	87	0.84
Y2-160M-4	11	15	23	1470	88	0.84
Y2-160L-4	15	20	30	1470	89	0.85
Y2-180M-4	18.5	25	36	1475	90.5	0.86
Y2-180L-4	22	30	43	1475	91	0.86
Y2-200L-4	30	40	58	1475	92	0.86
Y2-225S-4	37	50	70	1485	92.5	0.87
Y2-225M-4	45	60	85	1485	92.8	0.87
Y2-250M-4	55	75	103	1485	93	0.87
Y2-280S-4	75	100	140	1485	93.8	0.87
Y2-280M-4	90	125	197	1485	94.2	0.87
Y2-315S-4	110	150	201	1485	94.5	0.87
Y2-315M-4	132	180	241	1485	94.8	0.88
Y2-315L1-4	160	215	288	1485	94.9	0.88
Y2-315L2-4	200	270	360	1485	95	0.89
Y2-355M3-4	250	340	443	1490	95.3	0.9
Y2-355L3-4	315	420	556	1490	95.6	0.9
Y2-711-6	0.18	0.24	0.74	865	0.66	56
Y2-712-6	0.25	0.33	0.95	865	0.68	59
Y2-801-6	0.37	0.5	1.3	885	0.7	62
Y2-802-6	0.55	0.75	1.79	885	0.72	65
Y2-90S-6	0.75	1	2.3	915	0.72	69
Y2-90L-6	1.1	1.5	3.2	915	0.73	72
Y2-100L-6	1.5	2	4	910	0.75	76
Y2-112M-6	2.2	3	5.6	940	0.76	79
Y2-132S-6	3	4	7.5	960	0.76	81
Y2-132M1-6	4	5.5	10	960	0.76	82
Y2-132M2-6	5.5	7.5	13	960	0.77	84
Y2-160M-6	7.5	10	17	970	0.77	86
Y2-160L-6	11	15	25	970	0.78	87.5
Y2-180L-6	15	20	32	970	0.81	89
Y2-200L1-6	18.5	25	39	975	0.81	90
Y2-200L2-6	22	30	45	975	0.83	90
Y2-225M-6	30	40	59	980	0.84	91.5
Y2-250M-6	37	50	71	980	0.86	92
Y2-280S-6	45	60	86	980	0.86	92.5
Y2-280M-6	55	75	105	980	0.86	92.8
Y2-315S-6	75	100	142	935	0.86	93.5
Y2-315M-6	90	125	170	935	0.86	93.8
Y2-315L1-6	110	150	207	935	0.86	94
Y2-315L2-6	132	180	245	935	0.87	94.2
Y2-355M1-6	160	215	292	990	0.88	94.5
Y2-355M2-6	200	270	365	990	0.88	94.7
Y2-355L-6	250	340	455	990	0.88	94.9
Y2-80M1-8	0.18	0.24	0.88	645	0.61	51
Y2-80M2-8	0.25	0.33	1.15	645	0.61	54
Y2-90S-8	0.37	0.5	1.49	670	0.61	62
Y2-90L-8	0.55	0.75	2.17	670	0.61	63
Y2-100L1-8	0.75	1	2.4	680	0.67	71
Y2-100L2-8	1.1	1.5	3.4	680	0.69	73
Y2-112M-8	1.5	2	4.4	700	0.69	75
Y2-132S-8	2.2	3	6	710	0.71	78
Y2-132M-8	3	4	7.9	710	0.73	79
Y2-160M1-8	4	5.5	10.3	720	0.73	81
Y2-160M2-8	5.5	7.5	13.6	720	0.74	83
Y2-160L-8	7.5	10	18	720	0.75	85.5
Y2-180L-8	11	15	25	730	0.76	87.5
Y2-200L-8	15	20	34	730	0.76	88
Y2-225S-8	18.5	25	41	730	0.76	90
Y2-225M-8	22	30	48	730	0.78	90.5
Y2-250M-8	30	40	64	730	0.79	91
Y2-280S-8	37	50	78	735	0.79	91.5
Y2-280M-8	45	60	95	735	0.79	92
Y2-315S-8	55	75	112	735	0.81	92.8
Y2-315M-8	75	100	151	735	0.81	93
Y2-315L1-8	90	125	178	735	0.82	93.8
Y2-315L2-8	110	150	217	735	0.82	94
Y2-355M1-8	132	180	261	745	0.82	93.7
Y2-355L-8	200	270	388	745	0.83	94.5

Kailida Motors Factory Advantages.

· Prompt Quotation.

· Competitive Price

· Guaranteed Quality

· Timely Delivery.

· 100% Tested.

· Sincere and Professional Service.

· Outstanding Finishing Surface.

· Strictly and Perfect Management is guaranteed for Production.

· Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.

· Have Rich Experience and Strong ability to Develop New Products.

· Have Ability to Design the Products Based on Your Original Samples.

WHAT WE DO AT KAILIDA

· Stamping of lamination

· Rotor die-casting

· Winding and inserting - both manual and semi-automatically

· Vacuum varnishing

· Machining shaft, housing, end shields, etc

· Rotor balancing

· Motor assembly

· Painting - both wet paint and powder coating

· Packing

· Inspecting spare parts every processing

· 100% test after each process and final test before packing.

WHAT KAILIDA CAN DO FOR CUSTOMERS

· Kailida supplies standard products to customers.

· Kailida supplies standard products under customers' brands and packaging, etc

· Kailida R&D department develops any new products together with the customers.

We Promise you all the time after you working with us for Win-Win Business.

· Prompt Reply to Your Inquiry within 24 Hs during Working Days.

· Long Life Time Products

· Products One Year Guarantee from the Date of Sales.

· Professional Service in Handling Your Goods in Daily Communications

· Deliver Time about 15-20 days for Normal Models.

· Deliver Time about 30 days for New Models upon Receiving the New Samples.

Zhejiang Kailida Explosion-Proof Electromechanical Co., Ltd. is an advanced manufacturer integrating design, production, sales and service. We specialize in developing & manufacturing electric motor, explosion-proof motors. We make progress and improvement constantly with complete quality checking facilities and strict quality controlling feedback system.

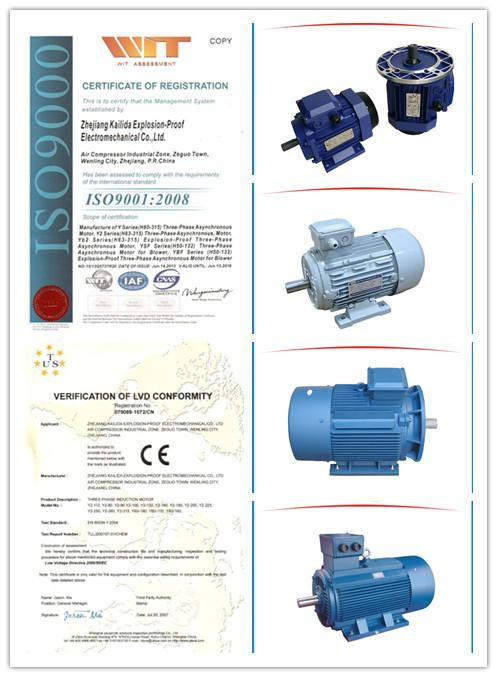

Main products include YB2, YBFseries explosion-proof motor. YS, Y, Y2, Y3, YX3, YSF series three phase electric motor, YC, YY, YL series single phase motor. We have passed ISO9001: 2000 quality management system, CCC, EXDI, EXDII BT4, MA and CE certification. Our products have been distributed to Europe, Middle East, southeast Asia, Africa, and so on.

We believe "best quality, highest reputation, important clients". We offer high quality products with competitive price and best service. We sincerely hope to establish steady cooperation with customers all of the world based on mutual benefits.
