Product Description

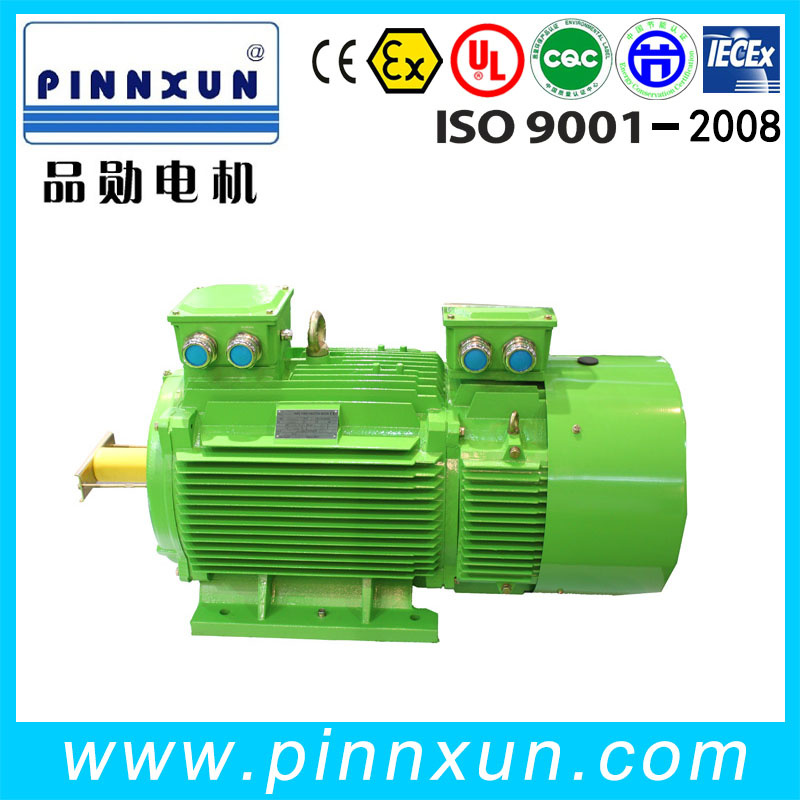

Y2 series ac motor for pump and fan
Y2 three phase induction electric asynchronous motor
Y2 Series Cast of Iron Three Phase Induction Motor is specially designed for European market, whose terminal box is located on the top of motor. They are totally enclosed and fan-cooling designed. They are newly designed in conformity with the relevant requirements / rules of IEC&DIN42673 standards.
They advantage of high efficiency, long working life, energy saving, high starting torque, low noise, small vibration, big breakaway torque, reliable operation performance, easy & convenient maintenance. Fixing measurement and power grade completely conform to IEC standards.
--Y2 series three phase asynchronous electric motors are widely used in many fields, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, agitator, air compressor etc. We also can supply aluminum housing type for frame size under the standard of IEC132.
For the Connection Model of Y2 motor, please refer to the Name Plate on the motor (The Y Connection is adopted by motors' Output equal or below 3kW; The Delta-Connection is adopted by motors' Output above 4kW).
Y2 Motor can be equipped with PTC.
--For motor of frame size 160MM and above can be equipped with re-greasing system.
Model Explanation
Motor Performance
Ambient Temperature: -15° C~40° C
Altitude: Not exceed 1000 Meter
Rated Voltage: 380V or any voltage between 220-760V
Rated Frequency: 50Hz/60Hz
Protection Class: IP44, IP54, IP55
Insulation Class: B/F
Cooling Method: IC0141
Working Duty: S1(Continuous)
Humidity: Lower than 90%
Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above
Company information
Packing information
Our Servies
WE ARE READY
Q: Do you offer OEM service?
A: Yes.
Q: What is your payment term?
A: 30% T/T in advance, 70% before delivery. Or irrevocable L/C.
Q: What is your lead time?
A: About 10-45 days after receiving deposit or original L/C.
Q: What certifiicate do you have?
A: We have CE, ISO, CCC and so on.
WHY CHOOSE US
WHAT WE DO AT PINNXUN
Stamping of lamination
Rotor die-casting
Winding and inserting -both manual and semi-automatically
Vacuum varnishing
Machining shaft, housing, end shields, etc
Rotor balancing
Painting - both wet paint and powder coating
Motor assembly
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.
WHAT PINNXUN CAN DO FOR CUSTOMERS
PINNXUN supplies standard products to customers.
PINNXUN supplies standard products under customers' brands and packaging, etc
PINNXUN R&D department develops any new products together with the customers.
|
Structure Description |
|
Y2 series ac induction motor mounting details:
|
Schematic diagram |
|
|
|
|
|
mounting type |
B3 |
B35 |
B5 |
V1 |
|
mounting Discribtion |
frame with feet,end-shield without flange |
frame with feet,end-shield with flange |
frame without feet,end-shield with flange |
frame without feet,end-shield with flange |
Suitable frame |
H63-355 |
H63-355 |
H63-280 |
H180-355 |
Y2 series motors are totally enclosed fan cold(TEFC).
5.bearing type-table 2
table 2
|
|
|
|
|
Horizontal |
vertical |
motor
frame |
DE side |
N-DE side |
DE side |
N-DE side |
|
63 |
6201-2RZ/Z2 |
6201-2RZ/Z2 |
6201-2RZ/Z2 |
6201-2RZ/Z2 |
|
71 |
6202-2RZ/Z2 |
6202-2RZ/Z2 |
6202-2RZ/Z2 |
6202-2RZ/Z2 |
|
80 |
6204-2RZ/Z2 |
6204-2RZ/Z2 |
6204-2RZ/Z2 |
6204-2RZ/Z2 |
|
90 |
6205-2RZ/Z2 |
6205-2RZ/Z2 |
6205-2RZ/Z2 |
6205-2RZ/Z2 |
|
100 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
|
112 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
|
132 |
6208-2RZ/Z2 |
6208-2RZ/Z2 |
6208-2RZ/Z2 |
6208-2RZ/Z2 |
|
160 |
6209-2RZ/Z2 |
6209-2RZ/Z2 |
6209-2RZ/Z2 |
6209-2RZ/Z2 |
|
180 |
6211/Z2 |
6211/Z2 |
6211/Z2 |
6211/Z2 |
|
200 |
6312/Z2 |
6312/Z2 |
6312/Z2 |
6312/Z2 |
|
225(2P) |
6312/Z2 |
6312/Z2 |
6312/Z2 |
6312/Z2 |
|
225(4-8P) |
6313/Z2 |
6212/Z2 |
6313/Z2 |
6312/Z2 |
|
250(2P) |
6313/Z2/Z2 |
6313/Z1 |
6313/Z2 |
6313/Z1 |
|
250(4-8P) |
6314/Z1 |
6213/Z1 |
6314/Z1 |
6313/Z1 |
|
280(2P) |
6314/Z1 |
6313/Z1 |
6314/Z1 |
6313/Z1 |
|
280(4P) |
6317/Z1 |
6313/Z1 |
6317/Z1 |
6313/Z1 |
|
315(2P) |
6317/Z1 |
6317/Z1 |
6317/Z1 |
6317/Z1 |
|
315(4-8P) |
NU319 |
6319/Z1 |
NU319 |
6319/Z1 |
|
355(2P) |
6319/Z1 |
6319/Z1 |
6319/Z1 |
6319/Z1 |
|
355(4-8P) |
NU322 |
6322/Z1 |
NU322/Z1 |
6322/Z1 |
|
