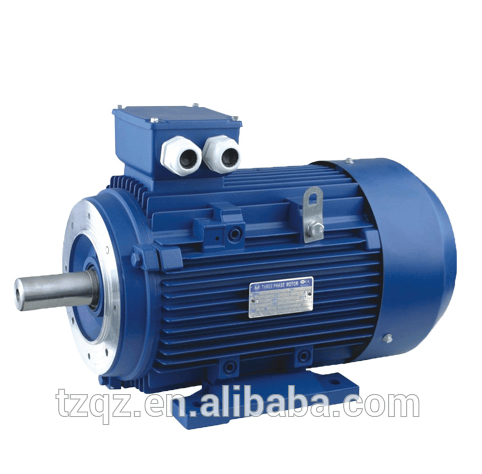

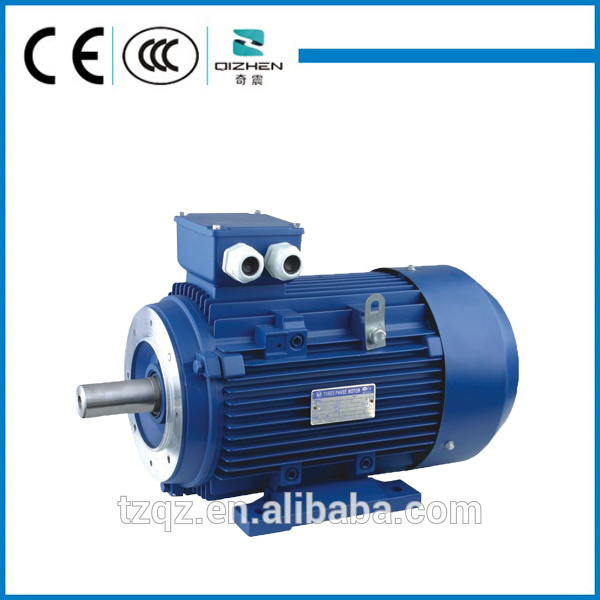

Y2 Series Three Phase AC Induction Electric Motor
Price: |
US $ 100/Piece |
Trade Terms: |
FOB |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
Y2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Core Wire: |
100%Copper |
Power: |
0.18kw-315kw |
Protection Class: |
IP44 |
Insulation Class: |
F |
Protection Feature: |
Totally Closed |
Mounting: |
B3, B5, B35, B14, B34 |
Number Of Stator: |
Three-Phase |
Function: |
Driving |
Number Of Poles: |
2, 4, 6, 8 |
Certification: |
CE |
Product Description
Y2 Series Three Phase AC Induction Electric Motor
DETAILS:
>The altitude not exceeding 1000m
>Ambient temperature :-15ºC-40ºC
> Cooling type:IC141Frame | 63~355 |
Power | 0.12~315 KW |
Duty Type | S1 |
Insulation Class | F |
Phase | 3 Phase |
Core Wire | 100% Copper wire |
Motor Casing | Aluminum |
Mounting | B3,B5,B35 |

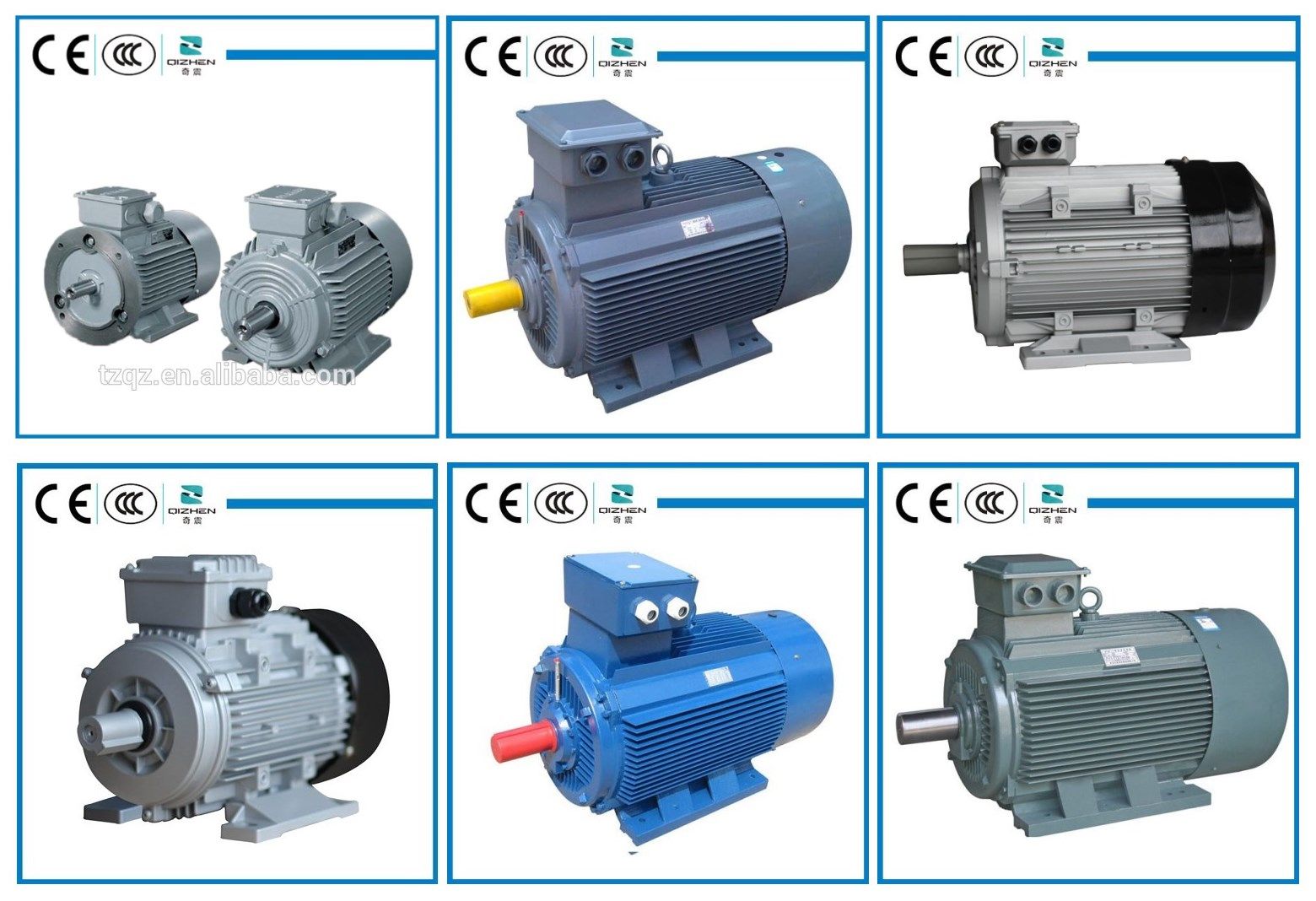

OTHER Y2 PICTURES

TECHNICAL DATA
Type | Power | Current | Speed | Efficiency | Power Factor | Locked rotor torque rated torque | Locked rotor current rated current | Breakdown torque rated torque |
Y2-63M1-2 | 0.18 | 0.53 | 2720 | 65.0 | 0.80 | 2.2 | 5.5 | 2.2 |
Y2-63M2-2 | 0.25 | 0.69 | 2720 | 68.0 | 0.81 | 2.2 | 5.5 | 2.2 |
Y2-71M1-2 | 0.37 | 0.99 | 2740 | 70.0 | 0.81 | 2.2 | 6.1 | 2.2 |
Y2-71M2-2 | 0.55 | 1.4 | 2740 | 73.0 | 0.82 | 2.2 | 6.1 | 2.3 |
Y2-80M1-2 | 0.75 | 1.8 | 2840 | 75.0 | 0.83 | 2.2 | 7.0 | 2.3 |
Y2-80M2-2 | 1.1 | 2.6 | 2840 | 77.0 | 0.84 | 2.2 | 7.0 | 2.3 |
Y2-90S-2 | 1.5 | 3.4 | 2845 | 79.0 | 0.84 | 2.2 | 7.0 | 2.3 |
Y2-90L-2 | 2.2 | 4.9 | 2845 | 81.3 | 0.85 | 2.2 | 7.5 | 2.3 |
Y2-100L-2 | 3 | 6.3 | 2860 | 83.3 | 0.87 | 2.2 | 7.5 | 2.3 |
Y2-112M-2 | 4 | 8.1 | 2880 | 85.0 | 0.88 | 2.2 | 7.5 | 2.3 |
Y2-132S1-2 | 5.5 | 11.0 | 2900 | 86.0 | 0.88 | 2.2 | 7.5 | 2.3 |
Y2-132S2-2 | 7.5 | 14.9 | 2900 | 87.0 | 0.88 | 2.2 | 7.5 | 2.3 |
Y2-160M1-2 | 11 | 21.3 | 2930 | 88.0 | 0.89 | 2.2 | 7.5 | 2.3 |
Y2-160M2-2 | 15 | 28.8 | 2930 | 89.0 | 0.89 | 2.2 | 7.5 | 2.3 |
Y2-160L-2 | 18.5 | 34.7 | 2930 | 90.0 | 0.90 | 2.2 | 7.5 | 2.3 |
Y2-180M-2 | 22 | 41.0 | 2940 | 90.0 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-200L1-2 | 30 | 55.5 | 2950 | 91.2 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-200L2-2 | 37 | 67.9 | 2950 | 92.0 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-225M-2 | 45 | 82.3 | 2960 | 92.3 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-250M-2 | 55 | 100 | 2965 | 92.5 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-280S-2 | 75 | 135 | 2970 | 93.0 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-280M-2 | 90 | 160 | 2970 | 93.8 | 0.91 | 2.0 | 7.5 | 2.3 |
Y2-315S-2 | 110 | 195 | 2975 | 94.0 | 0.91 | 1.8 | 7.1 | 2.2 |
Y2-315M-2 | 132 | 233 | 2975 | 94.5 | 0.91 | 1.8 | 7.1 | 2.2 |
Y2-315L12 | 160 | 279 | 2975 | 94.6 | 0.92 | 1.8 | 7.1 | 2.2 |
Y2-315L2-2 | 200 | 348 | 2975 | 94.8 | 0.92 | 1.8 | 7.1 | 2.2 |
Y2-355M-2 | 250 | 433 | 2980 | 95.3 | 0.92 | 1.8 | 7.1 | 2.2 |
Y2-355L-2 | 315 | 544 | 2980 | 95.6 | 0.92 | 1.8 | 7.1 | 2.2 |
APPLICATION
Y2 series motor is widely used in General purpose including cutting, machine, pumps, fans, conveyors,machine tools of farm duty and foodprocess

PACKING & SHIPPING
>To avoid damp, inner layer wrapped with plastic paper
>To lessen vibration, middle layer filled with foam
> To avoild squeeze, motor are packed with plywood or wooden case
> Customized package is also accept
OUR SERVICES
> Quick competitive offer to the inquiry within 12 hours.
> We cooperate with customer to design and develop the new products.
> All necessary documents are provided.
> We are a sales team, with all technical support from engineer team.
> We respect your feed back after receive the goods.
> We provide 12-24 months warranty after goods arrive.
> We promise all spare parts available in lifeti
OUR COMPANY
professional manufacturer with more than 17 years experience |
Alibaba Assessed Gold Supplier and Trade Assurance |
500,000 to 600,000pcs of electric motor were exported annually |
several tests to ensure the quality |
Best production capability,best quality control,best service |
we can be your OEM manufacturer with your authorization of brand. |
Established in 2014, Taizhou Qizhen Mechanical and Electrical Technology Co., Ltd is a new well-known professional electric motor and pump manufacturer in Zhejiang, which is an enterprise integrating R&D, production, import and export. Our products are widely exported to overy fifty countries and regions such as east Europe, South America, Southeast Asia and Middle East, Africa; Meanwhile, we have kept well touch with dozens of trade companies at home and abroad for cooperation relationship.
Our main products include electric motor type with Y series, Y2 series and YS series of three-Phase asynchronous electric motors, YC series, YL series, JY Series and YY series of single-Phase electric motors, and other derived electric motors, such as YCT series electromagnectrism speed regualating motors, YEJ series electromagnetic-brake motor, YVF2 variable-frequency speed regualating motor, YB2 explosion proof electric motor, YD Double-speed electric motor, YSF/YT series energy-saving induction motor and so on.
With own R&D center, our company has rich technology power, advanced developing measures, highly effective production facilities, overall test conditions and complete modern management system. In the meantime, we have thoroughly carries out IEC standard.
In the aspect of enterprise spirit, our company has advocated management philosophy "Realistic, concrete, effective, innovative ", and always insisted on the principle "People are the basis, Quality is the key to win ". Believing in "First-class enterprise image, design idea and product quality ", our company will pursue greater development for a more brillian future. Also, we are willing to strengthen cooperation and interchange with all customers and be always the creator of every customer, Value with the aim of "Meet the demands of the consumer and go beyond the expection of the customers
