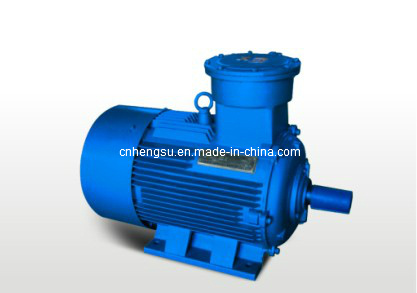

Yb2 Series Three Phase Explosion-Proof Induction Electric Motor
| Price: |
US $ 150/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YB2 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ambient Temperature: |
-15 |
| Rated Voltage: |
380V |
| Rated Frequency: |
50-60Hz |
| Connection: |
Star Connection |
| Duty Rating: |
Conntinuous(S1) |
| Insulation Class: |
F |
| Proctection Class: |
IP54 IP55 |
| Cooling Method: |
IC411 |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Explosion-Proof Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Protection Type |
| Starting Mode: |
Direct on-line Starting |
| Certification: |
CE |
| Brand: |
Hengsu Shilin |
Product Description
YB2 Series Three Phase Explosion-Proof Induction Electric MotorWe are specialized in manufacturing Three Phase Electric Motor, YB2 Induction motor, Explosion-Proof Motor, ,Electric Motor, induction Electric Motor, Three Phase Electric Motor,Ac Motors, Three Phase Motor, 90kw Motor, Induction Motors, Bicycle Electric Motor, Three-Phase Electric Motor, 3 Phase Motor, Explosion-Proof Motor, General Motor, Electromotor, Synchronous Motors, Three Phase Asynchronous Motor, Machine Motor, Yc Series, Ac Geared Motor, Shutter Motor, Electric Gate Motor, Aluminium Body Motor.
YB2 Series Explosion-Proof Three Phase Electric Motors have such characteristics as high efficiency, low noise level and vibrafion, high startu torque reliable operation. The rated voltageis 380V, 660V, 380/660V, 660/1140V. The rated frequency is 50HZ or 60HZ, the power grade and mounting dimensions of the motor are same as Y2 series motors comply with IEC standard. The degree ofprotact is IP55, and the cooling method is IC411, class F insulation, they can operate constanntly at the environment at temperature of not higher than 40 degree, the eletrical performance index of YB2 series motors are same as Y2 series motors.
The explosion protect performance ofmotors comply with GB3836.1-2000"Electrical apparatus for explosive atmosphaere General requirments" and GB3836.2-2000"Electrical apparatus for explosive atmospheres, explosion-proof electrical apparatus"d" and also complywith IEC standard, it is used in the places where the ecplosive gasmixture is exisiting.
Operating Conditions:
Ambient temperature: -15 ≤ 40
Altitude: Altitude should be lower than 1000meters above sea level.
Rated voltage: 380V Rated frequency: 50Hz, 60HZ
Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Duty/Rating: Conntinuous(S1).
Insulation class: F, the temperature rise of the stator winding is examined at 80K(by resistance method).
Protection class: The main body of the motor is IP54, IP55
Cooling method: IC411.
Hengsu Holdings Co., Ltd. is located in Zhejiang Yangtze River Delta, one of the most dynamic cities - Taizhou Economic Development Zone. There are three subsidiary companies: Sanmen Hengsu Motor Co., Ltd., Zhejiang Hengsu Electric Motor Co., Ltd., Jiangsu Shilin Electric Motor Co., Ltd., having total land area of more than 200000m2, a building area of 100000m2, jointly established the production of small and medium-sized production base for kinds of electric motors
The company focus on R & D and production of the wider use of technology, advanced small and medium-sized electric motors for domestic and foreign markets, the main products are in line with the international IEC standard three-phase asynchronous motors Y series cast iron motor and Y2 series with cast iron and aluminum housing motor, and the derivative of YB2 series explosion-proof motor, YEJ series electromagnetic brake motor, YVF series frequency adjustable-speed motor, YCT series electromagnetic adjustable-speed motor, YD series pole-changing multi-speed motor, YHSD series soft-start electromagnetic, HS series buffer deceleration motor products; And IEC standard YC and YL single phase electric motor, annual output capacity of 4, 000, 000 kilowatts.
The company established a strong R & D team to continuously optimize the product design and manufacturing processes, improve quality control and advanced production testing equipment, with the characteristics of modern management model, the company strictly in accordance with international standards ISO9001: 2008 quality system implementation of comprehensive-our products have got CE, SGS, and CCC certificate. Companies in innovation, creating value for customers of the purpose and dedication to providing our customers with high quality products and best services
