Yb2 Three Phase Ex-Proof Induction Motor

Prod Model:	YB2-180L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Explosion-Proof Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Explosion-Proof Type
Starting Mode:	Direct on-line Starting
Certification:	Exdi,Exdii Bt4
Brand:	K.Lida

Product Description

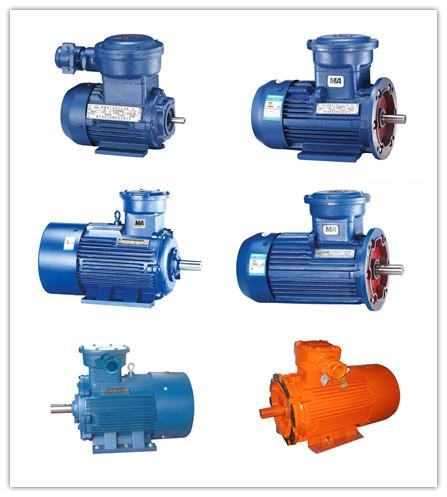

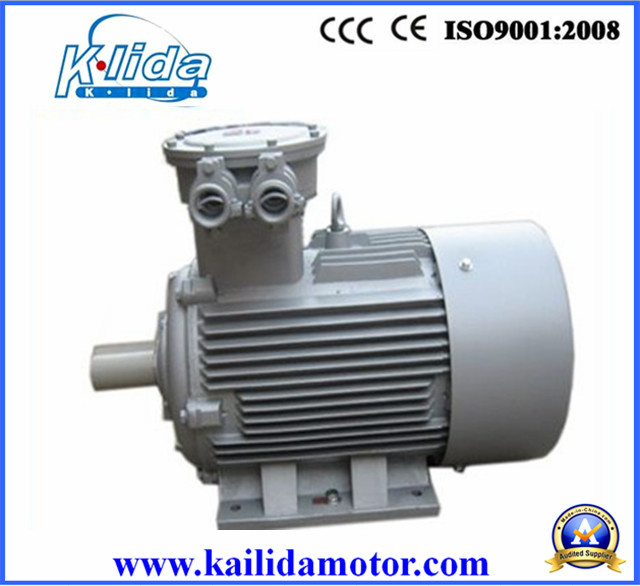

YB2 B5 Vertical three phase EX-proof induction motor

1, Frame Size: 63-355 MM;
2, Rated Output: 0.12-315 KW or 0.10-420 HP;
3, Rated Voltage: 220/380V, 380/660 V or to be your request;
4, Rated Frequency: 50 Hz,60 Hz,50 Hz / 60 Hz;
5, Poles: 2 / 4 / 6 / 8 / 10 ;
6, Speed: 590 -2980 r/min
7, Ambient Temperature: -15°C-40°C
8, Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9, Mounting:  B3; B35; B34; B14; B5; V1;
10, Current: 0.43-556.2 A (AC);
11, Duty: continuous (S1);
12, Insulation Class: B / F;
13, Protection Class: IP54 / IP55;
14, Cooling Method: ICO 141 Standards;
15, Altitude: No more than 1,000 meters above sea level;
16, Packing: 1pc in a Strong carton several cartons on a Pallet.



Kailida motors advantage:

Prompt Quotation.
Competitive Price
Guaranteed Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.
Outstanding Finishing Surface.
Strictly and Perfect Management is guaranteed for Production.
Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
Have Rich Experience and Strong ability to Develop New Products.
Have Ability to Design the Products Based on Your Original Samples.

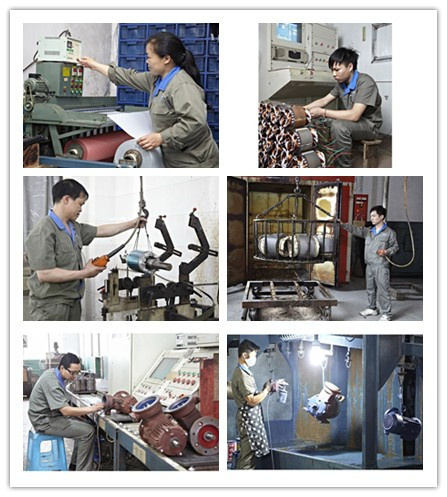

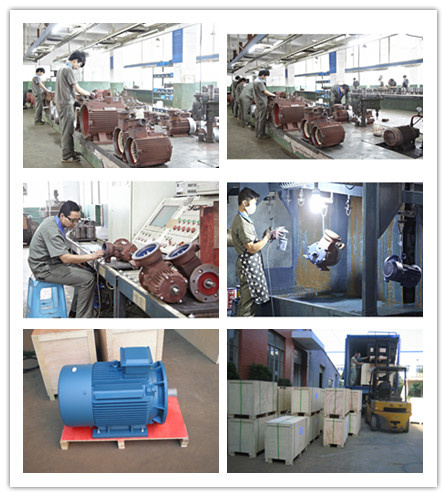

How can we do for a motor:
Stamping of lamination
Rotor die-casting
Winding and inserting - both manual and semi-automatically
Vacuum varnishing
Machining shaft, housing, end shields, etc…
Rotor balancing
Motor assembly
Painting - both wet paint and powder coating
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing



Our promise:
Prompt Reply to Your Inquiry within 24 Hs during Working Days.
Long Life Time Products
Products One Year Guarantee from the Date of Sales.
Professional Service in Handling Your Goods in Daily Communications
Deliver Time about 15-20 days for Normal Models.
Deliver Time about 30 days for New Models upon Receiving the New Samples.
