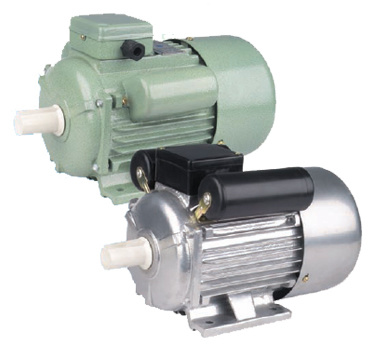

Yc Series Heavy-Duty Single Phase Capacitor Start Motor

Prod Model:	YC Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Species:	Aluminium Housing, Cast Iron Case
Certification:	Ce
Brand:	as Customer's Requests

Product Description

Product Name: Electric Motor - YC
YC Series Capacitor Start Induction Motor
Frame No: 71-132
Output: 0.12-3.7KW
Voitage: 110V, 115V, 120V, 220V, 230V, 240V
Frequency: 50Hz or 60Hz
Protection Type: IP44
Insulation Class: B

YC Series Heavy-duty single-phase motors are suitable for small size machine tools and water pumps, especially for family workshops where only single-phase power supply is available. Motors of this series are integrated with up-to-date design, manufacture with the best quality materials, possess the features of pleasant-looking appearance and meet the IEC standard.

YC series motors are of IP44 totally enclosed fan-cooling type, rated outputs is 3HP or below, capacitor starting, Within rated voltage and 50Hz, the starting torque is three times more than the rated torque and 60Hz is2.75times more. Motors for 4HP or over are of capacitor start and run type. It has concentrate the advantages of high starting torque, smooth running, Iow temperature rising, Iow noise and greater overload performance. The designation number and nominative valves are all in conformity with IEC standards.

Notes: The connection strap connection must correspond to voltage.
