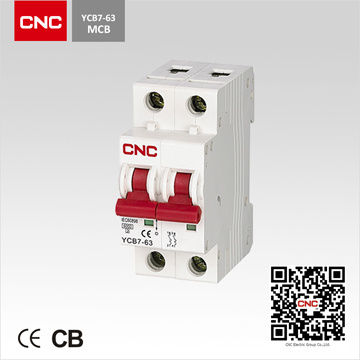

Ycb7 6ka 2p MCB Circuit Breaker Isolating Switch (C7 Series) (CB7-63 2p)

Name: Ycb7 6ka 2p MCB Circuit Breaker Isolating Switch (C7 Series) (CB7-63 2p)
Brand: all-electronics-online.com
SKU: 703024115
Availability: InStock
Rating: 4.6 (107 reviews)

Price:	US $ 2.5-2.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CB7-63 2p
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	240/415V
Rated Frenquency:	50/60Hz
Rated Current:	1-63A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCB
Poles Number:	2
Installation:	DIN Rail
Type:	Circuit Breaker
Function:	Overcurrent Protection
Certification:	IEC60898-1

Product Description

6KA 2P miniature circuit breaker

General

C7 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the system. The product is neoteric in structure, lig ht in weight, reliable and excellen t in performance. Its frame and parts adopt plastics of high fire resistant and shockproof. The product, with long life, is mainly used in AC 50Hz/60Hz single pole 240V or two, three, four poles up to 415V circuit for overload and short circuit protection, as well as for unfrequently switching electric equip ment and lighting circuit in normal case. The products comply with IEC 60898 & GB10963-1999.

1. Overload protection
2. Short circuit protection
3. Controlling
4. Used in residential building, non-residential building, energy source industry and infrastructure.
5. Classified as follows according to the type of instantaneous release: Type B(3- 5)ln, type C(5-10)ln, type D(10-14)ln

Electrical features	Rated current In	A	1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
	Poles	P	2
	Rated voltage Ue	V	240/415
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	6000, 10000
	Rated impulse withstand voltage (1.2/50) Uimp	V	6000
	Dielectric test voltage at ind. Freq. for 1 min	Kv	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B, C, D
Mechanical features	Electrical life	t	8000
	Mechanical life	t	20000
	Protection degree		IP20
	Reference temperature for setting of thermal element	° C	30
	Ambient temperature (with daily average≤ 35° C)	° C	-5~+40 (special application please refer to temperature compensation correction)
	Storage temperature	° C	-25~+70

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
