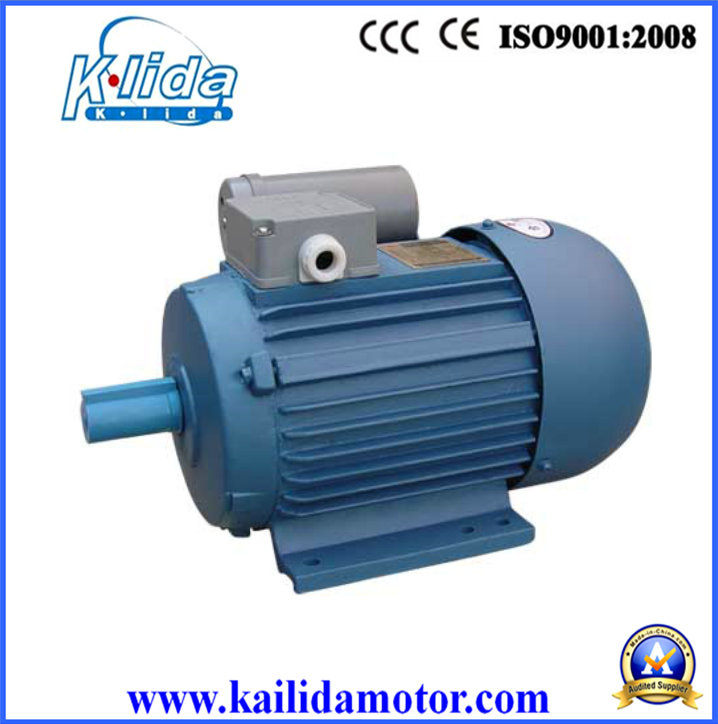

Ycl Series Heavy Duty Single Phase Capacitor Start Induction Motor

Name: Ycl Series Heavy Duty Single Phase Capacitor Start Induction Motor
Brand: all-electronics-online.com
SKU: 720517715
Availability: InStock
Rating: 4.3 (59 reviews)

Price:	US $ 39/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	on Your Request
Voltage:	on Your Request
Power:	on Your Request
Number Of Stator:	Single-Phase

Product Description

Introduction:
The YCL series motor is similar to YC series in appearance. Compared with YC series motor of same output the thermal rise and reduced by 8.47K and 1.81A respectively, in the average, the efficiency go up by 4.21 percent, max-torque increase by 0.064, min torque by 0.408, starting torqueby 0.348 and power factor by 0.16.

YCL series single-phase heavy-duty capacitor start asynchronous motor is suitable for driving small lathe and water pump, especially good for families and workshop where only single-phase power is available. This series motors are designed with advanced technique and made of fine materials. It also has many other good characteristics, such as nice function, lower noise, lower temperature-rise and starting current, higher starting torque, reliable operation, easy mainrenance and nice appearance. The YCL series motor is produced in conformity with IEC standards.

Motor Features:
Ambient temperature: -15° CClass B/F insulation
Rated frequency: 50/60Hz
Rated voltage: 110V/115V/120V/220V/230V/240V
Continuous S1 operation
Protection class: IP44 IP54
Cooling method: IC0141

Model	Output		Current	Power Factor	Dff	Speed
Model	kW	HP	(A)	Power Factor	(%)	(r/min)
YCL90S-2	1.1	1.5	7.2	0.95	73.2	2880
YCL90L-2	1.5	2	8.9	0.97	76	2900
YCL100L-2	2.2	3	13.2	0.96	78.8	2900
YCL90S-4	0.75	1	5	0.93	73.3	1450
YCL90L-4	1.1	1.5	7.8	0.9	75	1450
YCL100L-4	1.5	2	9.3	0.92	79.4	1450
YCL112M-4	2.2	3	13.6	0.9	81.6	1450
YCL132S1-4	3	4	18.2	0.9	83.2	1450
YCL132S2-4	3.7	5	22	0.9	84.9	1450
YCL132M1-4	5.5	7.5	32.5	0.9	85	1460
YCL132M2-4	7.5	10	40	0.9	85.5	1460

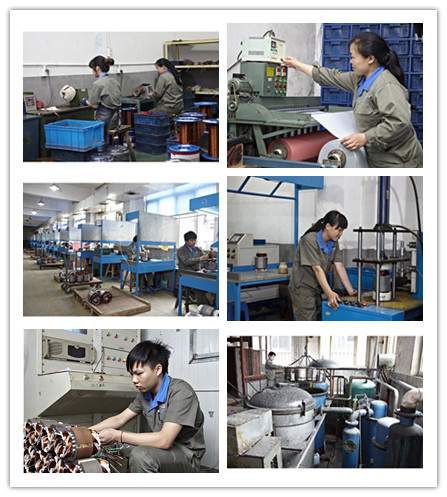

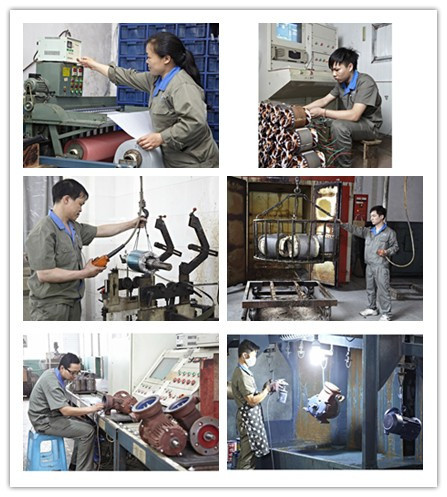

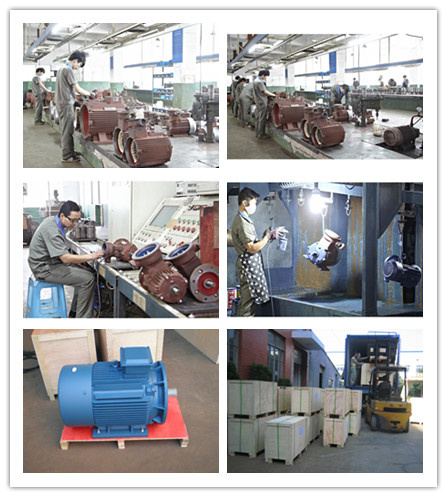

Zhejiang Kailida Explosion-Proof Electromechanical Co., Ltd. is an advanced manufacturer integrating design, production, sales and service. We specialize in developing & manufacturing electric motor, explosion-proof motors. We make progress and improvement constantly with complete quality checking facilities and strict quality controlling feedback system.

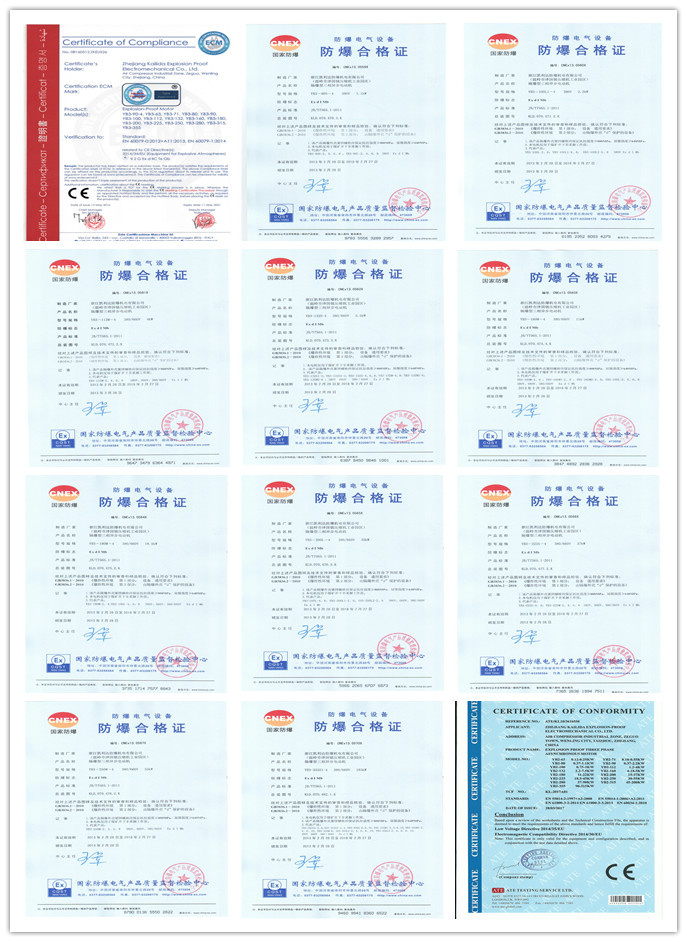

Main products include YB2, YBFseries explosion-proof motor. YS, Y, Y2, Y3, YX3, YSF series three phase electric motor, YC, YY, YL series single phase motor. We have passed ISO9001: 2000 quality management system, CCC, EXDI, EXDII BT4, MA and CE certification. Our products have been distributed to Europe, Middle East, southeast Asia, Africa, and so on.

We believe "best quality, highest reputation, important clients". We offer high quality products with competitive price and best service. We sincerely hope to establish steady cooperation with customers all of the world based on mutual benefits.
