Yct Series Electromagnetic Adjustable-Speed Induction Motor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
YCT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling: |
IC411 (Tefc) |
| Protection Rating: |
IP21 |
| Voltage: |
380 |
| Frequency: |
50 or 60 Hz |
| Duty: |
S1 |
| Insulation Class: |
F |
| Power: |
0.55 ~ 90kw |
| Pole: |
2, 4, |
| Frame Size: |
112 ~ 355 |
| Efficiency: |
Ie1 |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Species: |
Ye3 Three Phase |
Product Description
YCT series adjustable-speed induction motor
1.Brief introduction:YCT series adjustable-speed induction motor by electromagnetic clutch is one of the derived series from Y series three phase asynchronous motors, they are composed of driving motors, electromagnetic slip coupling and controller. YCT series motors are usually used under a constant torque load and are particularly suitable for the use under the load with a decreasing torque such as the centrifugal pump and fan. Main applications of the YCT series motors including assembly lines, transfer equipments, plastic injecting machines, printing machines, pumps, fans, wire calendars, drawing machines etc.
The speed of the YCT series motors can be adjusted continuously and steplessly within the specified adjustable speed range with an output of rated torque. When the loading torque is changed during the running of the motor, the exciting current of the coupling can be regulated automatically by the speed negative feedback system of the controller, so as to keep the speed free of any variation basically. 2.Features of YCT series adjustable-speed motor 1), Wide adjustable speed range and stable speed adjustment;
2), Adjustable speed without out-of-control zone;
3), With speed negative feedback automatic regulation system, small speed variation ratio;
4), Large start torque and smooth start performance;
5), Simple construction, reliable and easy for operation and maintenance;
6), With small control power, multi-way control.
7), Available size: H112 ~ H355, with 4 poles;
8), Rated output: 0.55KW ~ 90KW (0.75HP ~ 120HP) ;
9), Mounting arrangements: B3, B5, B35; 3.Technical parameters| Type | Rated power | Rated Torque | Speed range |
| KW | N.m | R/min |
| YCT112-4A | 0.55 | 3.6 | 1230~125 |
| YCT112-4B | 0.75 | 4.9 | 1230~125 |
| YCT132-4A | 1.1 | 7.1 | 1230`125 |
| YCT132-4B | 1.5 | 9.7 | 1230~125 |
| YCT160-4A | 2.2 | 14.1 | 1250~125 |
| YCT160-4B | 3 | 19.2 | 1250~125 |
| YCT180-4A | 4 | 25.2 | 1250~125 |
| YCT200-4A | 5.5 | 36.1 | 1250~125 |
| YCT200-4B | 7.5 | 47.7 | 1250~125 |
| YCT225-4A | 11 | 69 | 1250~125 |
| YCT225-4B | 15 | 94 | 1250~125 |
| YCT250-4A | 18.5 | 110 | 1320~132 |
| YCT250-4B | 22 | 137 | 1320~132 |
| YCT280-4A | 30 | 189 | 1320~132 |
| YCT315-4A | 37 | 232 | 1320 ~132 |
| YCT315-4B | 45 | 282 | 1320~132 |
| YCT355-4A | 55 | 344 | 1340~440 |
| YCT355-4B | 75 | 469 | 1340~440 |
| YCT355-4C | 90 | 564 | 1340~600 |
4.Operating Conditions:| Frame size | 112~355 |
| Rated power | 0.55~90kw |
| Duty | S1 |
| Insulation Class | F |
| Protection class | IP21 |
| Cooling | IC411 |
| Altitude | No more than 1,000 meters above sea level; |
| Ambient Temperature | -15°C-40°C |

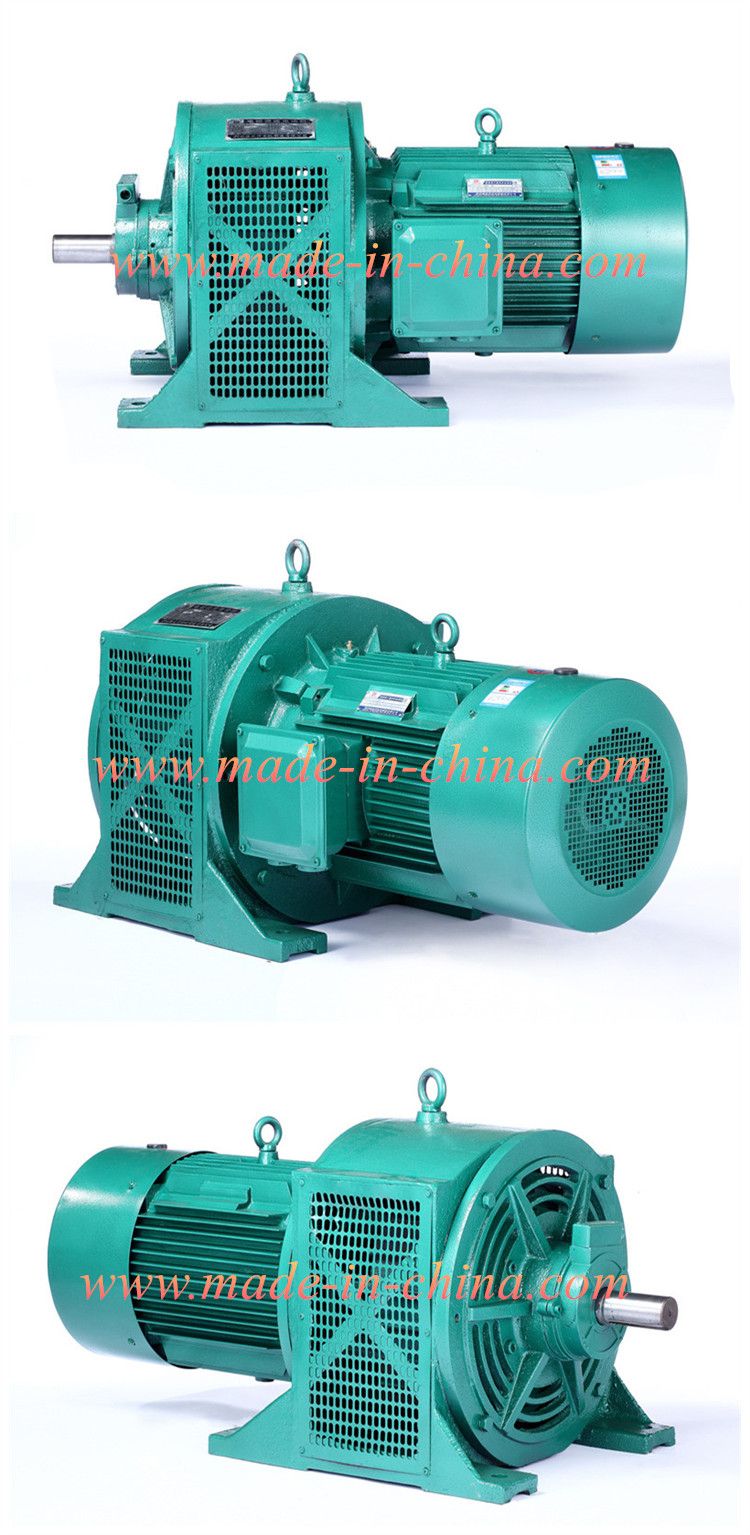

5..Packaging:plywood cases6.Deatiled images

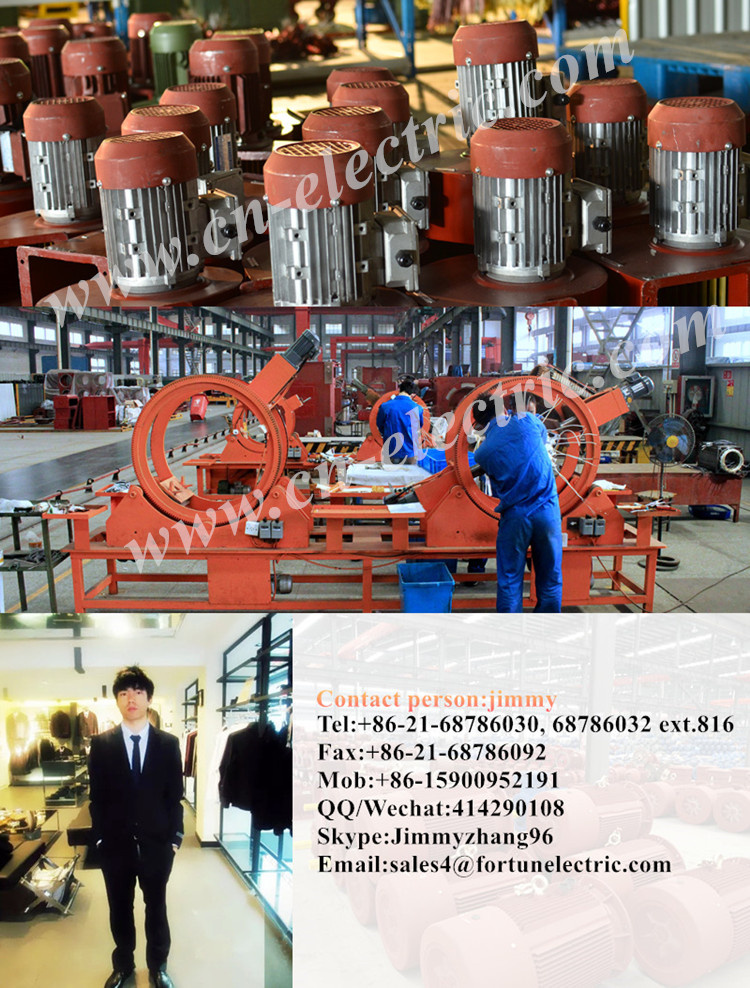

China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
