Ycw1 Air Circuit Breaker /Acb

Name: Ycw1 Air Circuit Breaker /Acb
Brand: all-electronics-online.com
SKU: 778319165
Availability: InStock
Rating: 5 (98 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCW1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	CNC
Instalation:	Fixed,Draw out
Model:	Ycw1
Rated Operation Voltage:	400V
Weight:	22kg to 55kg
Rated Current:	200-1600A
Poles:	3/4
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ACB
Certification:	CCC
Poles Number:	3.4

Product Description

YCW1 AIR CIRCUIT BREAKER

General

YCW1 series intelligent air circuit breakers(hereinafter called ACB)are applied for the network circuit of AC 50Hz,rated voltage 400V,690V and rated current between 630A and 6300A.Mainly used for distributing energy and protecting the circuit and power supply device against short circuit,undervoltage,single-phase ground fault,etc.The ACB has intelligent protection function and the key parts adopt intelligent release.The release can make the accurate selective protection,which can avoid cutting off the power and improve the reliability of power supply.

The products conform with IEC60947-1,IEC60947-2 standards.

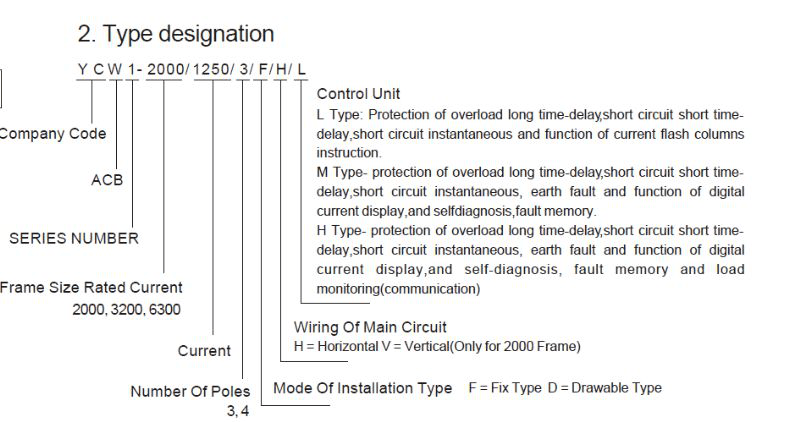

Type designation

Accessories	YCW1-2000	YCW1-3200	YCW1-6300	Details Info
Shunt Release				AC230V,AC400V,DC220V
Under-voltage Release				AC230V,AC400V,undervoltage instantaneous, under time-delay
Release(close)Magnetic Iron				AC230V,AC400V,DC220V
Electric Operation Mechanism				AC230V,AC400V,DC110V,DC220V
Auxiliary Switch				Standard Type(4a4b),Special Type(5a5b,6a6b) Note:a-normal open, b-normal close
Mechanical Interlock				one circuit breaker (1 lock+1key) two circuit breakers (steel cable inter-lock, connecting rod interlock,2 locks+1key) three circuit breakers (3locks+2keys, connecting rod, interlock)
Automatic Power Transfer System
Current Transformer Connected with Neutral Lead

Operation Conditions

Item	Description
Ambient temperature	-5°C~+40°C(expect special order products)
Altitude	≤2000m
Pollution grade	3
Safety category	Main circuit and undervoltage tripping coil is IV, other auxiliary and control circuit is III
Installation position	Vertical installed, tilt not exceed 5 degree
Environmental protection	Most of parts use recyclable and degradable materials
Isolating function	With isolating function

Specifications

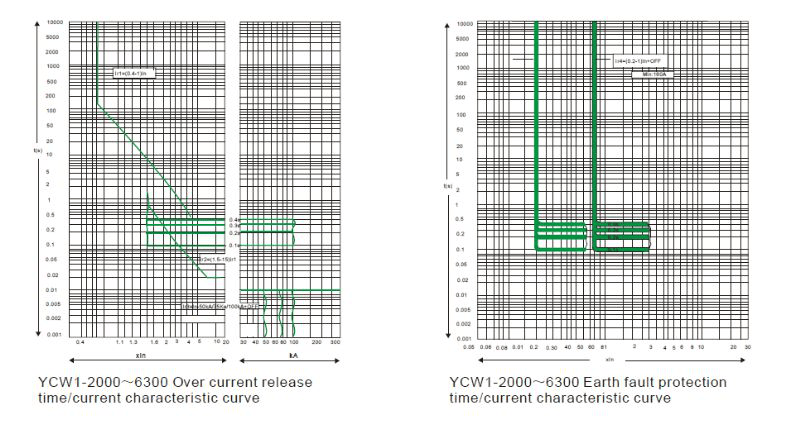

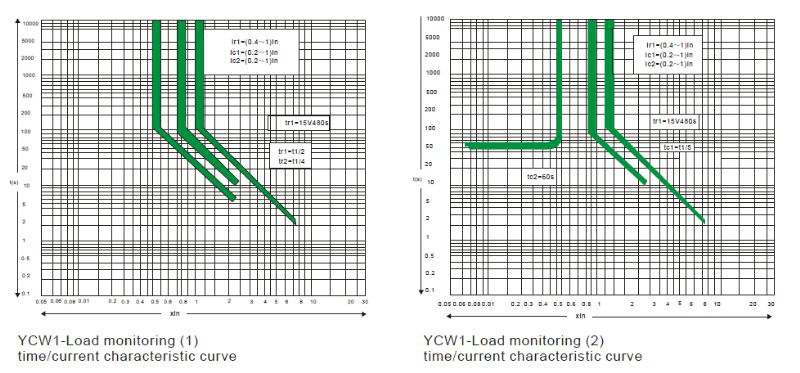

Curves
