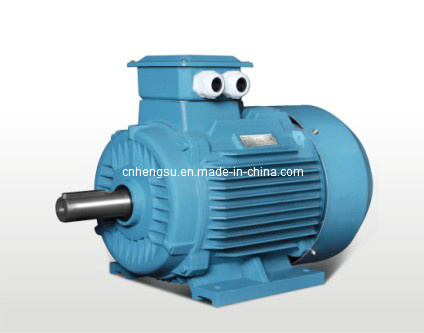

Ye2 AC Three Phase Induction Motor with CE Approved
| Price: |
US $ 84-88/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
YE2-132 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue/Red/Grey etc |
| Mini Order: |
50units |
| Package: |
Paper /Wooden CTN |
| Delivery Time: |
20 Days Later After Receiving Deposit |
| Terms Of Payment: |
30% T/T Advance Balance at Sight of B/L Copy |
| Other Payment Way: |
Quantity Less Than 50PCS, Paypal 100% Advance |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Certification: |
CE |
| Brand: |
Hengsu Shilin |
Product Description
YE2 Series High Efficiency Three-Phase Induction MotorYE2 motors are three phase Asynchronous squirrel-cage induction motors, in cast iron execution, totally enclosed fan cooled (TEFC). YE2 motors are available in frame size H 80-355 in 2-4-6 and 8 poles, 10 pole on request, various combinations of two- and multi speed in frame size H80-280, unwounded size H80-132 in 2-4-6 and 8 poles, including spare parts. The terminal box is standard top mounted. Grease lip: H180-315 motor with grease lip.
Performance:B3,B5,B14,V1,V5,V18,V6,V3,V19,B6,B35,B34,B7,V15,V58,B8, V36,V69.
Option: Motor can add PTC to well protect the motor on request. Main Features:1. Ambient temperature: -15ºC~+40ºC2. Altitude: Not exceed 1000m
3. Power range: 0.75-400kW
4. Rated voltage: 220/380V, 230/400V, 415V, 460V, 660V, 720V etc..
5. Rated frequency: 50Hz/ 60Hz
6. Protection class: IP54/IP55
7. Insulation class: F
8. Cooling method: IC411
9. Working duty: S1 (continuous)
10. Basic Installation Method: B3/ B35/ B5/ B14
11. Frame size: H63-355
12. Basic Pole: 2/4/6/8
13. Connection method: "Y" connection for 3kW and below, "Δ " connection for 4kW and above. Advantages:1. Novel design
2. Excellent starting performance
3. High starting torque
4. Low noise
5. Little vibration
6. Safe operation
7. Easy maintenance Application:YE2 Series motors are widely used for driving various kinds of mechanical equipment that needs continuous operation equipments, such as fans, pumps and so on. Our company is a reliable and professional AC electric motor factory/supplier/exporter in Zhejiang, China, who has won high reputation among customers on the domestic trade based on our high quality products and great service. We believe the high quality and good price of our products will be your better choice:
1. Reputation & experience: We pursue the company tenet of "Constant power, continuous innovation Lead Speed, high efficiency and energy saving" our factory founded in 1991, with rich experience in manufacturing for supply OEM&ODM support.
2. Quality standard: ISO9001-2008 system, CCC and CE.
3. R&D: as for our boss knows technology so we have our R&D team.
4. Test room: we have test room to test our motors quality, and control the quality well.
5. Characteristics: Independent brand, good at innovation, energy conservation design.
6. Insulation class: F, E, H, B, all available.
7. Warranty: 12 months.
8. Price: We make stators and rotors by our own factory; the cost of our products is all we can control well. So we have confidence to supply good price and valuable price to our customers.
Hengsu Holdings Co., Ltd. is located in Zhejiang Yangtze River Delta, one of the most dynamic cities - Taizhou Economic Development Zone. There are three subsidiary companies: Sanmen Hengsu Motor Co., Ltd., Zhejiang Hengsu Electric Motor Co., Ltd., Jiangsu Shilin Electric Motor Co., Ltd., having total land area of more than 200000m2, a building area of 100000m2, jointly established the production of small and medium-sized production base for kinds of electric motors
The company focus on R & D and production of the wider use of technology, advanced small and medium-sized electric motors for domestic and foreign markets, the main products are in line with the international IEC standard three-phase asynchronous motors Y series cast iron motor and Y2 series with cast iron and aluminum housing motor, and the derivative of YB2 series explosion-proof motor, YEJ series electromagnetic brake motor, YVF series frequency adjustable-speed motor, YCT series electromagnetic adjustable-speed motor, YD series pole-changing multi-speed motor, YHSD series soft-start electromagnetic, HS series buffer deceleration motor products; And IEC standard YC and YL single phase electric motor, annual output capacity of 4, 000, 000 kilowatts.
The company established a strong R & D team to continuously optimize the product design and manufacturing processes, improve quality control and advanced production testing equipment, with the characteristics of modern management model, the company strictly in accordance with international standards ISO9001: 2008 quality system implementation of comprehensive-our products have got CE, SGS, and CCC certificate. Companies in innovation, creating value for customers of the purpose and dedication to providing our customers with high quality products and best services
