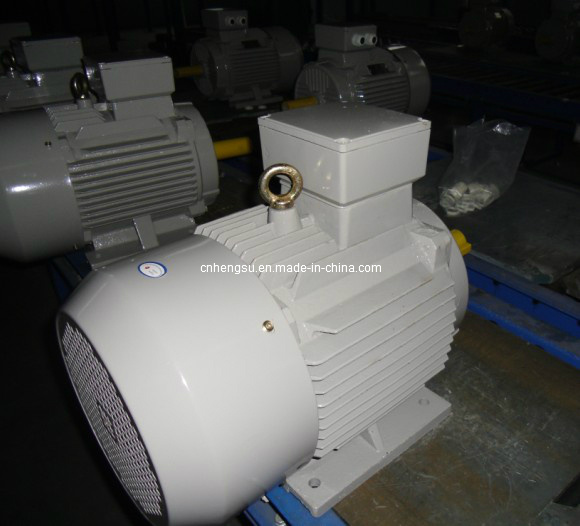

Ye2 Cast Iron Three Phase AC Induction Electric Motor

Name: Ye2 Cast Iron Three Phase AC Induction Electric Motor
Brand: all-electronics-online.com
SKU: 719145555
Availability: InStock
Rating: 4.8 (117 reviews)

Price:	US $ 4800/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YE2-355L3-8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue/Red/Grey etc.
Package:	Paper/ Wooden Box
Terms Of Payment:	T/T 30% Advance Deposit, Balance at Sight of B/L.
Shipping:	20 Days Later After Receving Deposit
Warranty:	12 Month
Number Of Stator:	Three-Phase
Function:	Driving
Certification:	CE
Brand:	Hengsu Shilin

Product Description

YE2 series three phase asynchronous motor is our country summarizes the advanced experience of developed countries and the development of the design of the new generation of three phase asynchronous motor products. These motors have reached an international advanced level of 1990s. Implementation of the standard JB/T8680-2008"Y2 series three phase asynchronous motors rechnical conditions"

Range:

YE2 series three phase asynchronous motor frame size from 63 to 355 for a total of 15 frame sizes, pole number: 2, 4, 6, 8, 10 pole, power from 0.12kw to 315kw total of 117 specifications.

Apply to:

General place and house special requirements, such as machinery, metal cutting machine tools, pumps, fans, blenders, transport machinery, agricultural machinery, foof machinery.

Product features:

High efficiency and energy saving, low noise and little vibration. The insulation class is IP54 or IP55

Operation Conditions:

Ambient temperature: -15senti degree≤ 0≤ 40senti degree
Altitude: Not exceeding 1000 meters
Rated voltage: 380V, 400V, 415V, 220/380V, 380/660V
Rated frequency: 50Hz / 60 Hz

Connection:

Y Start-connection for 3KW and below
Delta-connection for 4KW or more
Duty / Rating: Continuous (S1)
Cooling type: IC411

Hengsu Holdings Co., Ltd. is located in Zhejiang Yangtze River Delta, one of the most dynamic cities - Taizhou Economic Development Zone. There are three subsidiary companies: Sanmen Hengsu Motor Co., Ltd., Zhejiang Hengsu Electric Motor Co., Ltd., Jiangsu Shilin Electric Motor Co., Ltd., having total land area of more than 200000m2, a building area of 100000m2, jointly established the production of small and medium-sized production base for kinds of electric motors

The company focus on R & D and production of the wider use of technology, advanced small and medium-sized electric motors for domestic and foreign markets, the main products are in line with the international IEC standard three-phase asynchronous motors Y series cast iron motor and Y2 series with cast iron and aluminum housing motor, and the derivative of YB2 series explosion-proof motor, YEJ series electromagnetic brake motor, YVF series frequency adjustable-speed motor, YCT series electromagnetic adjustable-speed motor, YD series pole-changing multi-speed motor, YHSD series soft-start electromagnetic, HS series buffer deceleration motor products; And IEC standard YC and YL single phase electric motor, annual output capacity of 4, 000, 000 kilowatts.

The company established a strong R & D team to continuously optimize the product design and manufacturing processes, improve quality control and advanced production testing equipment, with the characteristics of modern management model, the company strictly in accordance with international standards ISO9001: 2008 quality system implementation of comprehensive-our products have got CE, SGS, and CCC certificate. Companies in innovation, creating value for customers of the purpose and dedication to providing our customers with high quality products and best services
