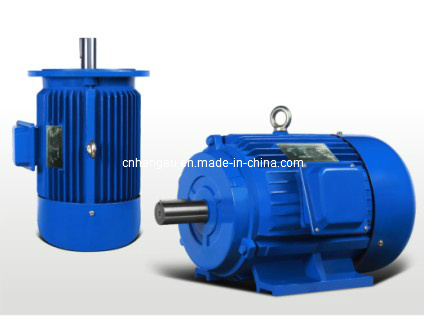

Ye2 Series Cast Iron Three Phase AC Induction Electric Motor

Name: Ye2 Series Cast Iron Three Phase AC Induction Electric Motor
Brand: all-electronics-online.com
SKU: 719091835
Availability: InStock
Rating: 4.5 (58 reviews)

Price:	US $ 1280/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YE2-315L2-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue/Red/Grey etc.
Package:	Paper/ Wooden Box
Term Of Payment:	T/T 30% Advance Deposit, Balance at Sight of B/L.
Shipping:	20 Days Later After Receiving Deposit
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Protection Type
Starting Mode:	y-δ Starting
Certification:	CE
Brand:	Hengsu Shilin

Product Description

We are specialized in manufacturing Three Phase Electric Motor, AC Motor,Induction motor, Explosion Proof Motor, ,Electric Motor, induction Electric Motor, Three Phase Electric Motor,Ac Motors, Three Phase Motor, Induction Motors, Three-Phase Electric Motor, 3 Phase Motor, Explosion-Proof Motor, General Motor, Electromotor, Synchronous Motors, Three Phase Asynchronous Motor, Machine Motor, Yc Series, Ac Geared Motor, Shutter Motor, Electric Gate Motor, Aluminium Body Motor

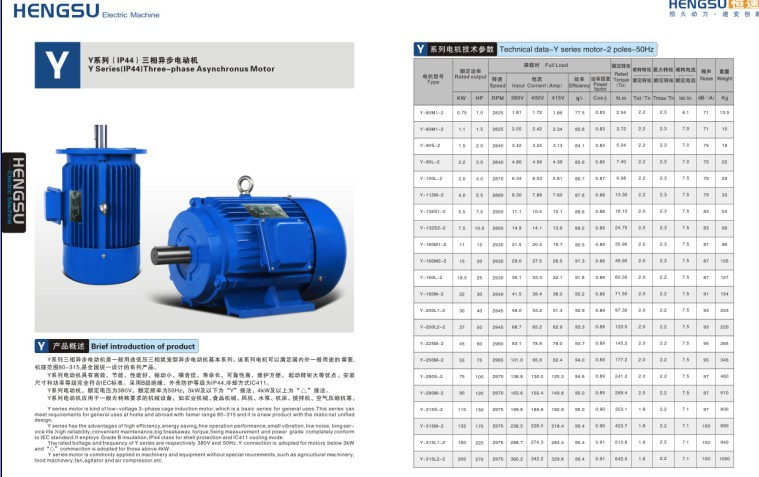

Y series motor is a low-voltage 3-phase induction motor, which is a basic series for generaluses. This series motor can meet requirments for general uses at home and abroad with frame range 80-315 and it is a new product with the national unified design.
Y series three phase asynchronous motor frame size from 80 to 315 for a total of 15 frame sizes, pole number: 2, 4, 6, 8, 10 pole, power from 0.75kw to 200kw.
Y series motor have the advantages of high efficiency, energy saving, fine operation performance, small vibration, low noise, long servicelife, high reliability, convenient maintenance, big breakaway torque,

Apply to: Machinery and equipment without special requirements, such as agricultural machinery, food machinery, fan, agitator and air compressor, etc.

OPERATING CONDITIONS:
Ambient temperature: -15senti degree≤ 0≤ 40senti degree
Altitude: Not exceeding 1000 meters
Rated voltage: 380V, 400V, 415V, 220/380V, 380/660V
Rated frequency: 50Hz / 60 Hz

Connection:
Y Start-connection for 3KW and below
Delta-connection for 4KW or more
Duty / Rating: Continuous (S1)
Cooling type: IC411

Hengsu Holdings Co., Ltd. is located in Zhejiang Yangtze River Delta, one of the most dynamic cities - Taizhou Economic Development Zone. There are three subsidiary companies: Sanmen Hengsu Motor Co., Ltd., Zhejiang Hengsu Electric Motor Co., Ltd., Jiangsu Shilin Electric Motor Co., Ltd., having total land area of more than 200000m2, a building area of 100000m2, jointly established the production of small and medium-sized production base for kinds of electric motors

The company focus on R & D and production of the wider use of technology, advanced small and medium-sized electric motors for domestic and foreign markets, the main products are in line with the international IEC standard three-phase asynchronous motors Y series cast iron motor and Y2 series with cast iron and aluminum housing motor, and the derivative of YB2 series explosion-proof motor, YEJ series electromagnetic brake motor, YVF series frequency adjustable-speed motor, YCT series electromagnetic adjustable-speed motor, YD series pole-changing multi-speed motor, YHSD series soft-start electromagnetic, HS series buffer deceleration motor products; And IEC standard YC and YL single phase electric motor, annual output capacity of 4, 000, 000 kilowatts.

The company established a strong R & D team to continuously optimize the product design and manufacturing processes, improve quality control and advanced production testing equipment, with the characteristics of modern management model, the company strictly in accordance with international standards ISO9001: 2008 quality system implementation of comprehensive-our products have got CE, SGS, and CCC certificate. Companies in innovation, creating value for customers of the purpose and dedication to providing our customers with high quality products and best services
