| Prod Model: |
YE3-250M-2 |
| Color: |
as Customer Required Ral No. |
| Shipping: |
25 Days Later After Receiving Deposit |
| Desiccant: |
Every Motor Is with Desiccant Inside Terminal Box |
| Paint: |
Terminal Box Inside and Fan Cover Inside Both Are |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Certification: |
Ce |
| Brand: |
Hengsu Shilin |

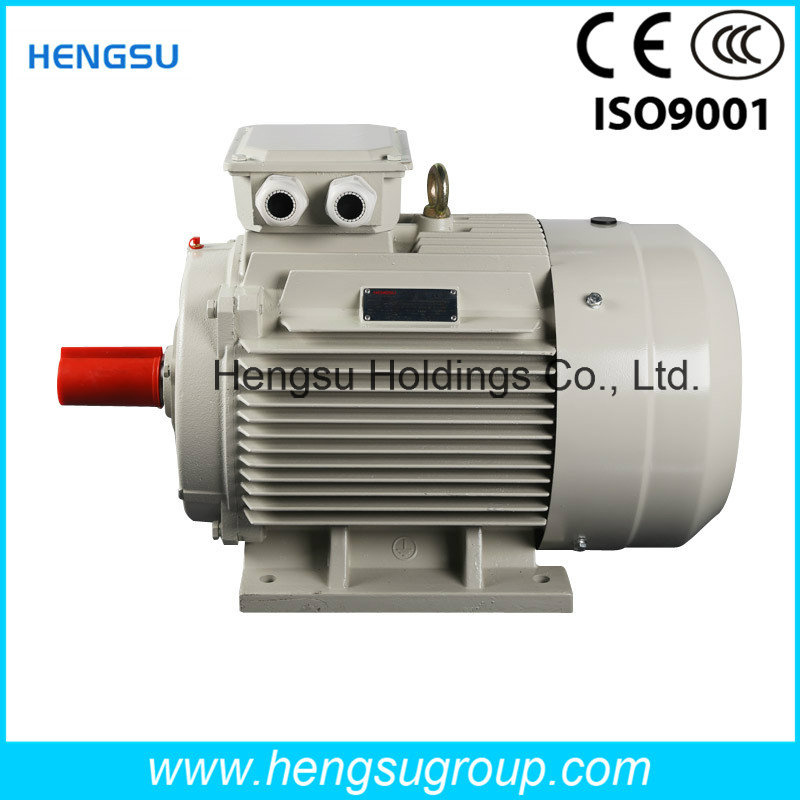

Product Description
The YE3 series premium efficiency three-phase asynchronous motor is inline with IE3 efficiency standard in the provisions of IEC60034-30-2008.And the improvement of the efficiency in its design is in line with the state's requirements on the energy saving and consumption reducing of the manufacturing sector.
YE3 series premium efficiency three-phase asynchronous motor with the mounting dimension in accordance with standard IEC60034,it has good features like optimum structure, attractive appearance, low noise, high efficiency, high protection class as well as high insulation class.YE3 series premium efficiency three-phase asynchronous motor can be widely used in various kinds of general use machineries like fans, pumps, machine tools, compressors, transportation and so on, and can also be used in the hazardous areas with oil and chemical, steel plants, mining industry.
1. PRODUCT INTRODUCTION OF IE3 ELECTRIC MOTOR
YE3 series are 3 phase asychronous electric motors with totally enclosed fan cooled,are ac motor,industrial motors. The premium efficiency motors are developed by ourselves independently according to standard IEC,GB,etc. The energy-saving motors meet with efficiency IE3 of IEC60034-30 and efficiency Grade 2 of GB18613-2012.The IE3 INDUCTION MOTORs are also in compliance with the efficiency standards covered by NEMA, CSA, CEMEP, COPANT, AS, NZS, JIS, GB. it is the most authoritative efficiency classification standard in the world.
The output rated power and mounting dimensions of the motors are perfectly in accordance with IEC60072-1. YE3 motors is reasonable structure, small vibration and low noise.
YE3 series 3 phase asychronous motors can be widely used in blowers,ventilators,pumps,machine tools, compressor, reducers, packing machines,transportation machinery,mining equipment,construction equipment and other machines,which can operate with full load for a long time,the three phase electric motors can save the considerable electric energy,it is advantageous to protect the environment.
2. TECHNICAL FEATURES OF IE3 ELECTRIC MOTOR
1. Execution standard: IEC60034-30
2. Energy efficiency grade: IE3
3. Frame size: H80~H355 Pole: 2P/4P/6P
4. Rated power: 0.75KW~355KW
5. Voltage: 380V, 400V, 415V
6. Frequency: 50Hz, 60Hz
7. Operation mode: S1 (continuous running)
8. Enclosed protect class: IP55
9. Insulation class: F (temperature rise is examined at 80K)
10. Cooling method: IC411
11. Mounting method: B3, B5, B35, V1
12. Ambient conditions: Altitude is lower than 1000m; Ambient temperature is -15~40Co
13. Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Detail:Operating conditionsAmbient temperature:
-20senti degree≤ 0≤ 40senti degreeAltitude:lower than 1000 meters above sea level Temperature and Insulation classMotors are based on F (155ºC) ,B (80K),to keep motor life and reliability Cooling and VentilationFully enclosed self fan cooling(TEFC).Motor is fixed with auxiliary flow typePlastic fan which is complying withthe provisions of 60034-6 IEC Ic411 Insulation classMotor protection class is Ip55 whichcan be used for dust or humidityenvironment, and we can provide a higher level of protection of motor Motor protectionAS need, motor can be installed of PTC,Pt100 and other winding resistance and Bearing temperature measurement and Protection device. Voltage and frequencyThe standard voltage is 380V/50Hz.which can be designed among200-600V,in the case of deviation5%, the motor still can work good. Vibration Vibration speed of Ye3 series motorin the no-load is in line with class A,special requirement, we can provideclass B. Terminals block box locationThe terminal block box is on thetop or one the right side as the standardYe2 series motor. Quality assuranceFrom design to produce factory,we strictly follow the ISO9001 qualitycertification system and procedures.
Hengsu Holdings Co., Ltd. is located in Zhejiang Yangtze River Delta, one of the most dynamic cities - Taizhou Economic Development Zone. There are three subsidiary companies: Sanmen Hengsu Motor Co., Ltd., Zhejiang Hengsu Electric Motor Co., Ltd., Jiangsu Shilin Electric Motor Co., Ltd., having total land area of more than 200000m2, a building area of 100000m2, jointly established the production of small and medium-sized production base for kinds of electric motors
The company focus on R & D and production of the wider use of technology, advanced small and medium-sized electric motors for domestic and foreign markets, the main products are in line with the international IEC standard three-phase asynchronous motors Y series cast iron motor and Y2 series with cast iron and aluminum housing motor, and the derivative of YB2 series explosion-proof motor, YEJ series electromagnetic brake motor, YVF series frequency adjustable-speed motor, YCT series electromagnetic adjustable-speed motor, YD series pole-changing multi-speed motor, YHSD series soft-start electromagnetic, HS series buffer deceleration motor products; And IEC standard YC and YL single phase electric motor, annual output capacity of 4, 000, 000 kilowatts.
The company established a strong R & D team to continuously optimize the product design and manufacturing processes, improve quality control and advanced production testing equipment, with the characteristics of modern management model, the company strictly in accordance with international standards ISO9001: 2008 quality system implementation of comprehensive-our products have got CE, SGS, and CCC certificate. Companies in innovation, creating value for customers of the purpose and dedication to providing our customers with high quality products and best services
