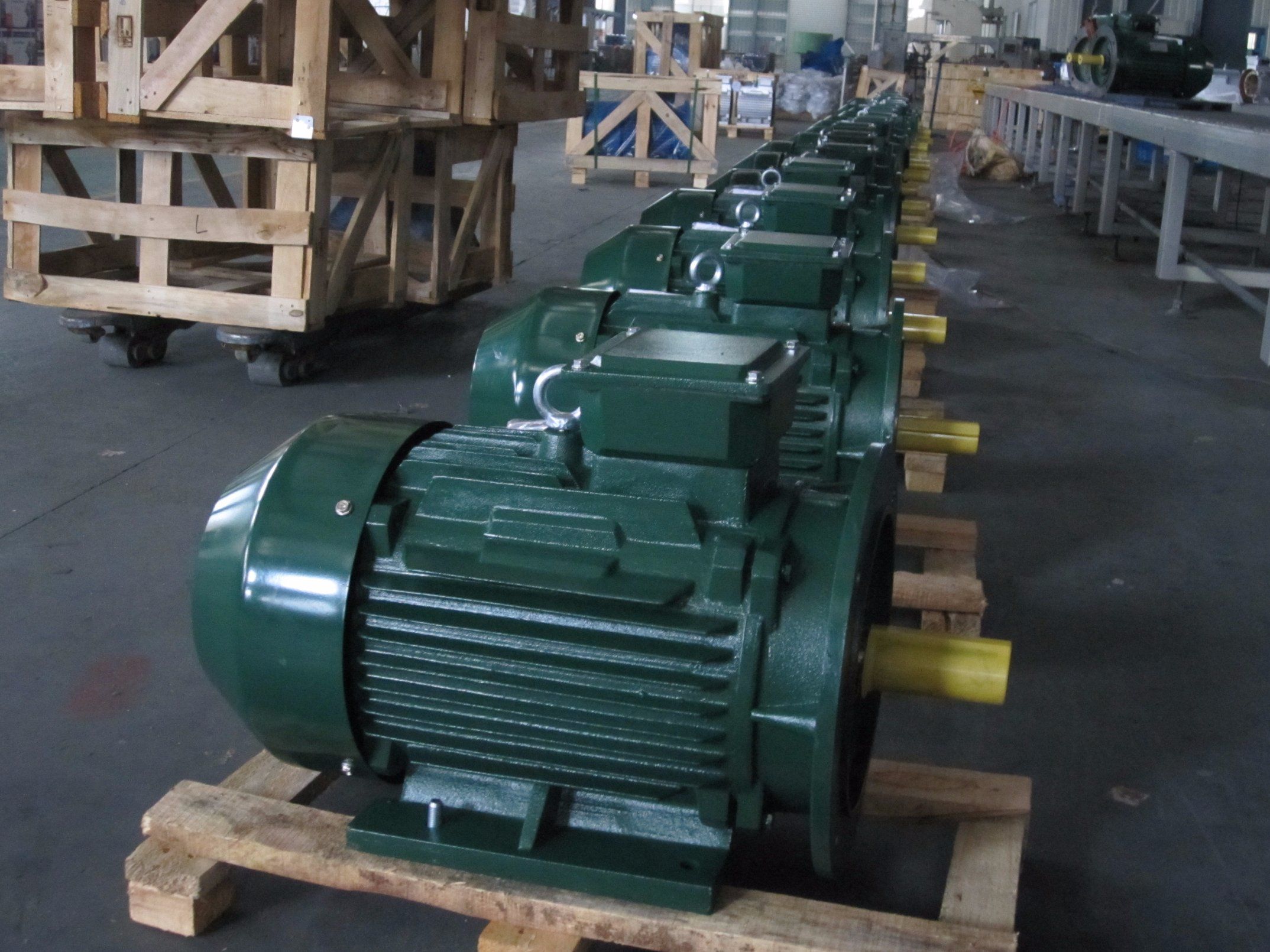

Ye3 Series (IE3) Premium Efficiency Induction Electric AC Motors

Name: Ye3 Series (IE3) Premium Efficiency Induction Electric AC Motors
Brand: all-electronics-online.com
SKU: 821234325
Availability: InStock
Rating: 4.7 (143 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YE3-250M-2
Terms Of Payment:	30% T/T Advance Balance at Sight of B/L Copy.
Number Of Stator:	Three-Phase
Function:	Control
Brand:	Xinrui

Product Description

YE3 series premium efficiency motor complying with IE3 efficiency levels according to IEC60034-30 and GB 18613-2012 2 levels, power from 7.5 to 375 kW, can be customized according to customer requirements.
Typical Applications: Pumps, Fans, Crushers, Conveyor belts, Mills, Centrifugal machines, Presses, Elevators,Packaging equipment,Grinders and others

Standard Features

Output power: 7.5kW-355kW

Frame size: 160 - 355

Poles: 2,4,6

Degree of protection: IP55 or IP65

Voltage: 380V or 220/380V 380/660V, 230/400V 400/690V

Frequency: 50HZ or 60Hz

Insulation Class: "F"class as standard

Temperature: Class B(80K)

Enclosure: TEFC

Basic type of Construction: B3, B5,B35, B14, B34

Cooling Method: IC411

Efficiency Class: IEC60034-30(IE3)

PERFORMANCE DATA SPEED 3000RPM 2P 50Hz

							Rated Current(A)								Sound power leveldB(A)
Type	kW	Rated Speed r/min	Efficiency at 100% load	Efficiency at 75% load	Efficiency at 50% load	COSΦ	380V	400V	415V	Rated Torque N·m	Ist/In	Tst/Tn		J kgm2	No load	Full load	Weight kg
YE3-80M1-2	0.75	2870	80.7	80.8	79.0	0.82	1.72	1.64	1.58	2.4	7	2.8	2.8	0.001	62	64	19
YE3-80M2-2	1.1	2880	82.7	82.9	81.0	0.83	2.43	2.31	2.23	3.5	7.3			0.0013			22
YE3-90S-2	1.5	2900	84.2	84.4	82.5	0.84	3.22	3.06	2.95	4.8	7.6			0.0018			28
YE3-90L-2	2.2	2900	85.9	86.0	84.2	0.85	4.58	4.35	4.19	7.0	7.6			0.0024			33
YE3-100L-2	3	2900	87.1	87.2	85.4	0.87	6.02	5.71	5.51	9.6	7.8			0.0038	68	70	43
YE3-112M-2	4	2910	88.1	88.2	86.3	0.88	7.84	7.45	7.18	12.7	8.3			0.0062	72	74	53
YE3-132S1-2	5.5	2915	89.2	89.2	87.4	0.88	10.6	10.1	9.75	17.5	8.3	2.5		0.0116	76	78	71
YE3-132S2-2	7.5	2915	90.1	90.1	89.1	0.88	14.4	13.7	13.2	23.9	7.9	2.5		0.015	76	78	79
YE3-160M1-2	11	2940	91.2	91.2	89.4	0.88	20.8	19.8	19.1	35.0	8.1	2.8		0.0425	76	78	124
YE3-160M2-2	15	2945	91.9	92.0	90.1	0.89	27.9	26.5	25.5	47.8	8.1			0.0527			135
YE3-160L-2	18.5	2945	92.4	92.5	90.6	0.89	34.2	32.5	31.3	58.9	8.2			0.0613			145
YE3-180M-2	22	2950	92.7	92.7	90.8	0.89	40.5	38.5	37.1	70.0	8.2			0.0929	81	83	202
YE3-200L1-2	30	2955	93.3	93.4	91.4	0.89	54.9	52.1	50.3	95.5	7.6	2.5	2.5	0.1478	84	86	242
YE3-200L2-2	37	2955	93.7	93.8	91.7	0.89	67.4	64.0	61.7	118	7.6			0.1621	84	86	264
YE3-225M-2	45	2960	94.0	94.2	92.1	0.90	80.8	76.8	74.0	143	7.7			0.2347	85	87	308
YE3-250M-2	55	2970	94.3	94.3	92.3	0.90	98.5	93.5	90.2	175	7.7			0.3511			398
YE3-280S-2	75	2975	94.7	94.8	92.7	0.90	134	127	122	239	7.1			0.6197			530
YE3-280M-2	90		95.0	95.1	93.0	0.90	160	152	146	287	7.1			0.7174			590
YE3-315S-2	110		95.2	95.2	93.2	0.90	195	185	179	350	7.1	2.2	2.2	1.3646	92	94	910
YE3-315M-2	132		95.4	95.5	93.4	0.90	234	222	214	420	7.1			1.5265			1015
YE3-315L1-2	160		95.6	95.6	93.6	0.91	279	265	256	509	7.2			1.7346			1080
YE3-315L2-2	200		95.8	95.8	93.8	0.91	349	331	319	637				1.9197			1135
YE3-355M-2	250	2980	95.8	95.8	93.9	0.91	436	414	399	796		2		2.7426	100	102	1650
YE3 355L-2	315		95.8	95.8	93.9	0.91	549	522	503	1003				3.2298	100	102	1830
YE3-3551-2	355		95.8	95.8	93.9	0.91	619	588	567	1130				3.4108	104	106	2050

PERFORMANCE DATA SPEED 1500RPM 4P 50Hz

							Rated Current(A)								Sound power leveldB(A)
Type	kW	Rated Speed r/min	Efficiency at 100% load	Efficiency at 75% load	Efficiency at 50% load	COSΦ	380V	400V	415V	Rated Torque N·m	Ist/In	Tst/Tn		J kgm2	No load	Full load	Weight kg
YE3-80M2-4	0.75	1430	82.5	82.7	80.9	0.75	1.84	1.75	1.69	4.8	6.5	2.5	2.5	0.0022	50	55	24
YE3-90S-4	1.1	1435	84.1	84.2	82.4	0.76	2.61	2.48	2.39	7.0	6.6			0.0031	55	60	32
YE3-90L-4	1.5	1435	85.3	85.4	83.6	0.77	3.47	3.30	3.18	9.6	6.9			0.004	55	60	36
YE3-100L1-4	2.2	1445	86.7	86.9	85.0	0.81	4.76	4.52	4.36	14.0	7.5			0.0078	64	69	43
YE3-100L2-4	3	1445	87.7	87.8	85.9	0.82	6.34	6.02	5.80	19.1	7.5			0.0098	64	69	49
YE3-112M-4	4	1450	88.6	88.7	86.8	0.82	8.37	7.95	7.66	25.5	7.8			0.0148	65	70	63
YE3-132S-4	5.5	1460	89.6	89.7	87.8	0.83	11.2	10.7	10.3	35.0	7.5	2.3	2.3	0.0287	69	74	80
YE3-132M-4	7.5	1460	90.4	90.6	88.6	0.84	15.0	14.3	13.7	47.8	7.5	2.3		0.0375	69	74	100
YE3-160M-4	11	1470	91.4	91.5	89.6	0.85	21.5	20.4	19.7	70.0	7.6	2.2		0.0857	66	71	126
YE3-160L-4	15	1470	92.1	92.3	90.3	0.86	28.8	27.3	26.3	95.5	7.6			0.1155	66	71	148
YE3-180M-4	18.5	1475	92.6	92.7	90.7	0.86	35.3	33.5	32.3	118	7.8			0.1506	75	79	190
YE3-180L-4	22		93.0	93.0	91.1	0.86	41.8	39.7	38.3	140	7.8			0.179	75	79	205
YE3-200L-4	30		93.6	93.8	91.7	0.86	56.6	53.8	51.9	191	7.2			0.2821	72	76	260
YE3-225S-4	37	1480	93.9	94.0	92.0	0.86	69.6	66.1	63.7	236	7.3			0.4825	73		312
YE3-225M-4	45		94.2	94.4	92.3	0.86	84.4	80.2	77.3	287	7.4			0.546	73		338
YE3-250M-4	55		94.6	94.9	92.7	0.86	103	98	94	350	7.4			0.692	74	77	412
YE3-280S-4	75		95.0	95.1	93.1	0.88	136	129	125	478	7.2			1.4134	78	81	574
YE3-280M-4	90		95.2	95.4	93.3	0.88	163	155	149	573	7.2			1.7001	78	81	650
YE3-315S-4	110	1485	95.4	95.5	93.5	0.89	197	187	180	700	7		2.2	2.9158	84	87	935
YE3-315M-4	132		95.6	95.7	93.7	0.89	236	224	216	840				3.3525			1032
YE3-315L1-4	160		95.8	95.8	93.9	0.89	285	271	261	1019				3.6146			1105
YE3-315L2-4	200		96.0	96.0	94.1	0.90	352	334	322	1273				4.3133			1205
YE3-355M-4	250	1490	96.0	96.1	94.1	0.90	440	418	403	1591		2		6.6046			1685
YE3-355L-4	315		96.0	96.0	94.1	0.90	554	526	507	2005				8.3062			1780
YE3-3551-4	355		96.0	96.0	94.1	0.88	638	607	585	2260				9.2989			2160

PERFORMANCE DATA SPEED 1000RPM 6P 50Hz

							Rated Current(A)								Sound power leveldB(A)
Type	kW	Rated Speed r/min	Efficiency at 100% load	Efficiency at 75% load	Efficiency at 50% load	COSΦ	380V	400V	415V	Rated Torque N·m	Ist/In	Tst/Tn		J kgm2	No load	Full load	Weight kg
YE3 90S-6	0.75	925	78.9	79.1	77.3	0.71	2.03	1.93	1.86	7.2	5.8	2.1	2.1	0.0042	57	64	29
YE3 90L-6	1.1	925	81.0	81.1	79.4	0.73	2.83	2.69	2.59	10.5	5.9			0.0057	57	64	36
YE3 100L-6	1.5	945	82.5	82.6	80.9	0.73	3.78	3.60	3.47	14.3	6			0.0111	61	67	44
YE3 112M-6	2.2	960	84.3	84.4	82.6	0.74	5.36	5.09	4.91	21.0	6			0.0182	65	72	54
YE3 132S-6	3	965	85.6	85.8	83.9	0.74	7.20	6.84	6.59	28.7	6.2	2		0.0306	69	76	69
YE3 132M1-6	4	970	86.8	86.9	85.1	0.74	9.46	8.99	8.66	38.2	6.8			0.0404			88
YE3 132M2-6	5.5	970	88.0	88.2	86.2	0.75	12.7	12.0	11.6	52.5	7			0.0529			101
YE3 160M-6	7.5	975	89.1	89.3	87.3	0.79	16.2	15.4	14.8	71.6	6.7	2.1		0.0993	67	74	125
YE3 160L-6	11	975	90.3	90.5	88.5	0.80	23.1	22.0	21.2	105	6.9	2.1		0.1306	67	74	140
YE3 180L-6	15	980	91.2	91.3	89.4	0.81	30.9	29.3	28.2	143	7.2	2		0.2191	73	79	190
YE3 200L1-6	18.5		91.7	91.9	89.9	0.81	37.8	36.0	34.7	177	7	2.1		0.3545			230
YE3 200L2-6	22		92.2	92.3	90.4	0.81	44.8	42.5	41.0	210	7	2.1		0.4177			250
YE3 225M-6	30	985	92.9	93.1	91.0	0.83	59.1	56.2	54.1	287	6.9	2		0.5355			292
YE3 250M-6	37	985	93.3	93.3	91.4	0.84	71.7	68.1	65.7	353	6.9	2.1		0.8905	76	82	380
YE3 280S-6	45	989	93.7	93.8	91.8	0.85	85.8	81.6	78.6	430	7.2		2	1.5315	78	84	500
YE3 280M-6	55	989	94.1	94.2	92.1	0.86	103	98.1	94.6	525	7.2			1.8715	78	84	562
YE3 315S-6	75	990	94.6	94.6	92.7	0.84	143	136	131	716	7	2		3.4121	80	85	872
YE3 315M-6	90		94.9	95.0	93.0	0.85	170	161	155	860				3.7063			963
YE3 315L1-6	110		95.1	95.2	93.2	0.85	207	196	189	1051				4.7068			1072
YE3 315L2-6	132		95.4	95.4	93.5	0.86	244	232	224	1261				5.6485			1180
YE3 355M1-6	160		95.6	95.6	93.7	0.86	296	281	271	1528		1.9		7.7848	84	88	1690
YE3 355M2-6	200		95.8	95.8	93.8	0.87	365	346	334	1910				9.561			1790
YE3 355L-6	250		95.8	95.8	93.9	0.87	456	433	417	2388				12.365			2045
YE3 3552-6	315		95.8
