YEJ Series Three Phase AC Asynchronous Squirrel-Cage Break Electrical Motor
| Price: |
US $ 400/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YEJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Core Wire: |
Copper |
| Insulation Class: |
F |
| Voltage: |
380V |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Number Of Poles: |
2, 4, 6, 8 |
| Certification: |
CE |
| Brand: |
Qizhen |
Product Description

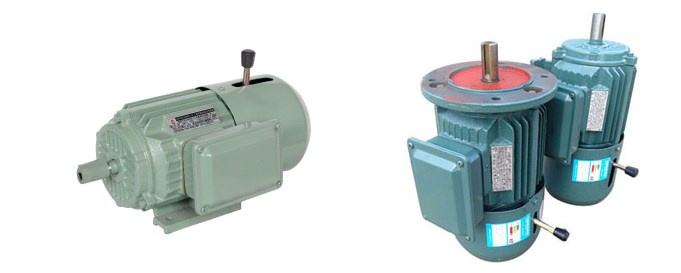

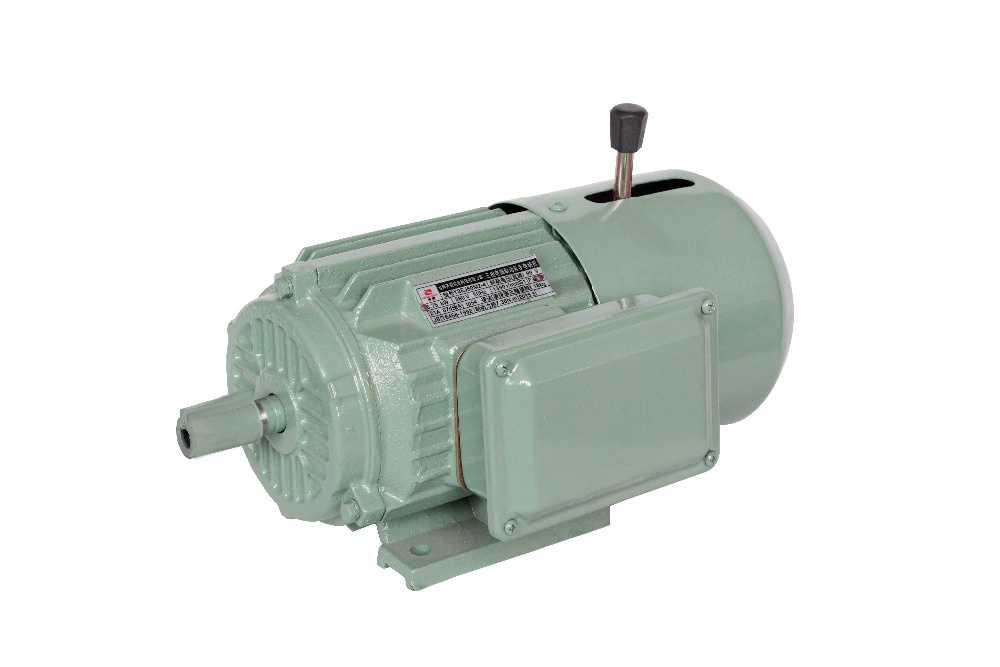

YEJ series three phase ac asynchronous squirrel-cage break electrical motor
Application scope : YEJ series motors are widely used in machine tools, printing machinery, forging machinery, transportation machinery, packaging machinery, food machinery, construction machinery, woodworking machinery and many other place where rapid and accurate breakingis demandedTechnical Data| Model | Power KW | Current A | speed r/min | Efficiency | Power Factor | Locked rotor torque | Locked rotor current rated current | Breakdown torque ratedtorque |
| YEJ80M1-2 | 0.75 | 1.8 | 2825 | 75 | 0.84 | 2.2 | 6.5 | 2.3 |
| YEJ80M2-2 | 1.1 | 2.5 | 2825 | 77 | 0.86 | 2.2 | 7.0 | 2.3 |
| YEJ90S-2 | 1.5 | 3.4 | 2840 | 78 | 0.85 | 2.2 | 7.0 | 2.3 |
| YEJ90L-2 | 2.2 | 4.8 | 2840 | 80.5 | 0.86 | 2.2 | 7.0 | 2.3 |
| YEJ100L-2 | 3 | 6.4 | 2880 | 82 | 0.87 | 2.2 | 7.0 | 2.3 |
| YEJ112M-2 | 4 | 8.2 | 2890 | 85.5 | 0.87 | 2.2 | 7.0 | 2.3 |
| YEJ132S1-2 | 5.5 | 11.1 | 2900 | 85.5 | 0.88 | 2.0 | 7.0 | 2.3 |
| YEJ132S2-2 | 7.5 | 15 | 2900 | 86.5 | 0.88 | 2.0 | 7.0 | 2.3 |
| YEJ160M1-2 | 11 | 21.8 | 2930 | 87.2 | 0.88 | 2.0 | 7.0 | 2.3 |
| YEJ160M2-2 | 15 | 29.4 | 2930 | 88.2 | 0.88 | 2.0 | 7.0 | 2.3 |
| YEJ160L-2 | 18.5 | 35.5 | 2940 | 89.0 | 0.89 | 2.0 | 7.0 | 2.2 |
| YEJ180M-2 | 22 | 42.2 | 2940 | 89.0 | 0.89 | 2.0 | 7.0 | 2.2 |
| YEJ200L1-2 | 30 | 56.9 | 2950 | 90.0 | 0.89 | 2.0 | 7.0 | 2.2 |
| YEJ200L2-2 | 37 | 69.8 | 2950 | 90.5 | 0.89 | 2.0 | 7.0 | 2.2 |
| YEJ225M-2 | 45 | 84.0 | 2970 | 91.5 | 0.89 | 2.0 | 7.0 | 2.2 |
1.
FAQ
1. Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept samples order to check quality.
2. Q: Is it all right to make customers' own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
3. Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
4. Q: How long is your warranty?
A: One year after receive B/L.
5. Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
Established in 2014, Taizhou Qizhen Mechanical and Electrical Technology Co., Ltd is a new well-known professional electric motor and pump manufacturer in Zhejiang, which is an enterprise integrating R&D, production, import and export. Our products are widely exported to overy fifty countries and regions such as east Europe, South America, Southeast Asia and Middle East, Africa; Meanwhile, we have kept well touch with dozens of trade companies at home and abroad for cooperation relationship.
Our main products include electric motor type with Y series, Y2 series and YS series of three-Phase asynchronous electric motors, YC series, YL series, JY Series and YY series of single-Phase electric motors, and other derived electric motors, such as YCT series electromagnectrism speed regualating motors, YEJ series electromagnetic-brake motor, YVF2 variable-frequency speed regualating motor, YB2 explosion proof electric motor, YD Double-speed electric motor, YSF/YT series energy-saving induction motor and so on.
With own R&D center, our company has rich technology power, advanced developing measures, highly effective production facilities, overall test conditions and complete modern management system. In the meantime, we have thoroughly carries out IEC standard.
In the aspect of enterprise spirit, our company has advocated management philosophy "Realistic, concrete, effective, innovative ", and always insisted on the principle "People are the basis, Quality is the key to win ". Believing in "First-class enterprise image, design idea and product quality ", our company will pursue greater development for a more brillian future. Also, we are willing to strengthen cooperation and interchange with all customers and be always the creator of every customer, Value with the aim of "Meet the demands of the consumer and go beyond the expection of the customers
