Yellow Coverlay FPC Double Sided Flexible PCB with 0.1mm Thick
| Price: |
US $ 1.28/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-1827-V10 |
| Board Thickness: |
0.1mm |
| Pth Cu Thickness: |
≥20 µm |
| Copper Thick: |
35 Um (1oz) |
| Legend Color: |
White |
| Solder Mask Color: |
Yellow |
| Surface Finish: |
Immersion Gold |
| Peeling Test of Coverlay: |
No Peelable |
| RoHS Required: |
Yes |
| Thickness of Coverlay: |
25 µm |
| Test: |
100% Electrical Test |
| Structure: |
Double-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
External WiFi Antenna |
Product Description

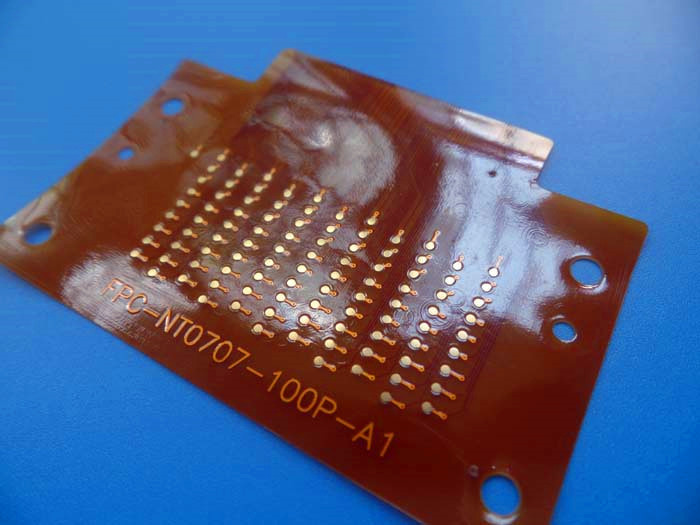

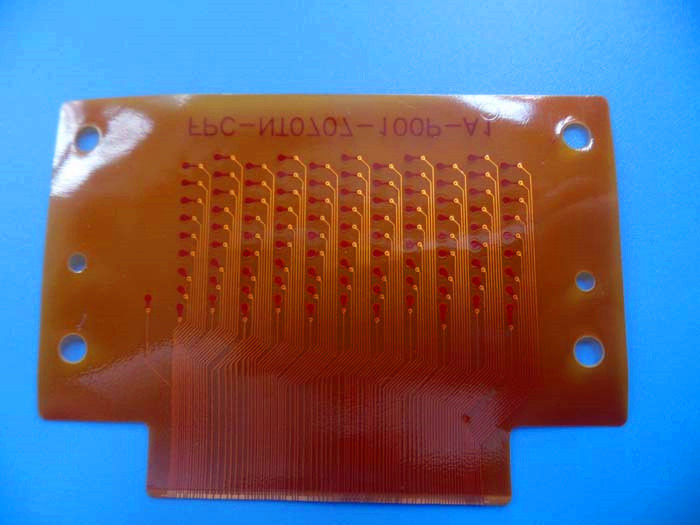

Yellow Coverlay FPC Double sided Flexible PCB with 0.1mm thick 391
Commodity Introduction
This is a type of flexible printed circuit for the application of External WiFi Antenna. It's a 2 layer
FPC at 0.1mm thick. The base laminate is from Shengyi, It's fabricated per IPC 6012 Class 2 us
-ing supplied Gerber data.
Parameter & Data Sheet| Size of Flexible PCB | 60.5 X 110.38mm |
| Number of Layers | 2 |
| Board Type | Flexible PCB |
| Board Thickness | 0.10mm |
| Board Material | Polyimide 25µm |
| Board Material Supplier | Shengyi |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | ≥20 µm |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 µm |
| | |
| Coverlay Colour | Yellow |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 25 µm |
| Stiffener Material | NO |
| Stiffener Thickness | N/A |
| | |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Peeling test of Coverlay | No peelable |
| Legend Adhesion | 3M 90ºC No peeling after Min. 3 times test |
| |
| Surface Finish | Immersion Gold |
| Thickness of Nickle/Gold | Au: 0.03µm(Min.); Ni 2-4µm |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
