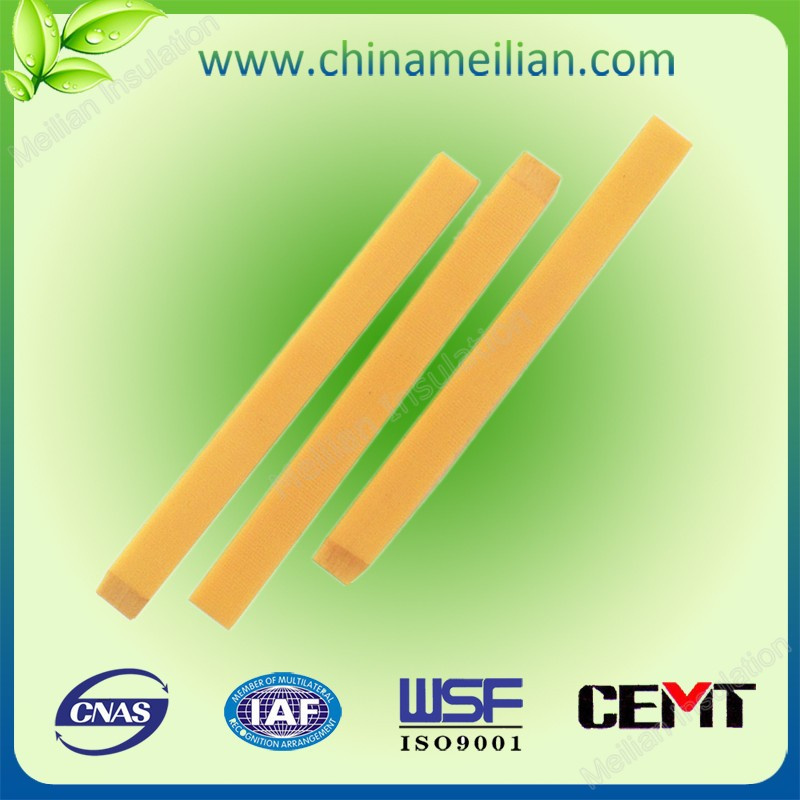

Yellow Motor Insulation Epoxy Slot Wedges

Name: Yellow Motor Insulation Epoxy Slot Wedges
Brand: all-electronics-online.com
SKU: 744249615
Availability: InStock
Rating: 4.9 (115 reviews)

Price:	US $ 0.02-0.26pcs
Trade Terms:	FOB,CFR,CIF
Min Order:	3000pcs
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-3240
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	1.9g/cm3
Formation Methods:	High Temperature and High Pressure
Tensile Strength:	300 MPa
Samples:	Free Samples Available
Appliction:	Electrical Insulation
Delivery Time:	7-10 Working Days
Customizable:	Yes
Application:	Generator
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	>100KV
Brand:	Mj

Product Description

3240 Epoxy Stator Slot Wedge wholesale
Feature:
Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection
Application:
Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products

Basic information
Product name	3240 Electrical Insulation Stator Wedge
Item No.	With the same item numbers of the laminates which used for processing
Brand	MJ
Material	Epoxy resin and Alkali free fiberglass cloth
Grade	Grade B
Feature
Excellent mechanical & electric property Good heat & moisture resistance Easy for installing
Application
Motors & generators Traction motors High-speed motors Wind turbines Metro reactors
Technical Performance
Density	≥2.0g/cm 3
Appearance	Natural color Yellow, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation
Sheets Thickness	0.1-50mm
Size	Customized
Formation methods	High temperature and high pressure
Thermal stability in 24h	≥180ºC
Water Absorption (D-24/23, 1.6mm	21.5 mg
Impact strength parallel to layer (Charpy method)	≥34.5 KJ/m 2
Tensile strength	≥300 Mpa
Flexural strength perpendicular to layer at room temperature at high temperature 180±2ºC	≥345 MPa ≥340 MPa
Insulation Resistance after immersion in water (D-24/23)	5.1×10 8 W
Dielectric Strength perpendicular to laminations (in 90ºC±2 °C transformer oil, 1 mm)	10.4 KV/mm
Voltage resistance parallel to layer (at 90±2ºCoil for 1min)	≥30 kV
Breakdown Voltage parallel to laminations (in 90±2°C transformer oil)	≥36.1 kV
Permittivity (50Hz)	5
Permittivity (1MHz)	5.1
Dissipation Factor (50Hz)	0.032
Dissipation Factor (1MHz)	0.032
Reference Standard	GB/T1303.1-1998

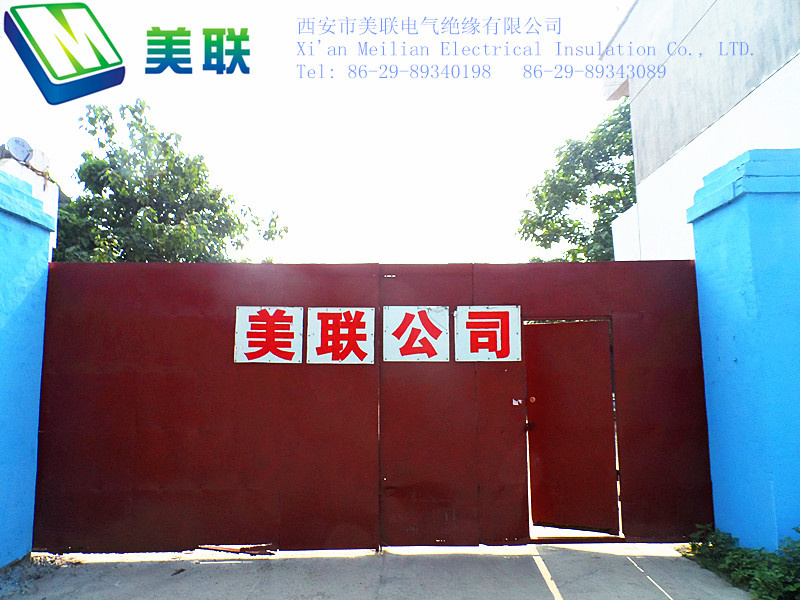

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
