Prod Model:	YJV22, YJV32 amoured cable
Product Name:	Zr-Yjv IEC Standard 4X95mm2 Power Cable
Rated Voltage:	0.6/1 Kv
Conductor:	Copper
Insulation:	XLPE / PVC
Sheath:	PVC
Core Number:	1 2 3 4 5
Color Color:	Red , Yellow , Blue ,Green or as Your Requirement
Origine:	Shandong , China
Packaging:	Wooden Drum
Shipping:	3-10 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	XLPE Power Cable
Brand:	Chan Qing Teng

Product Description

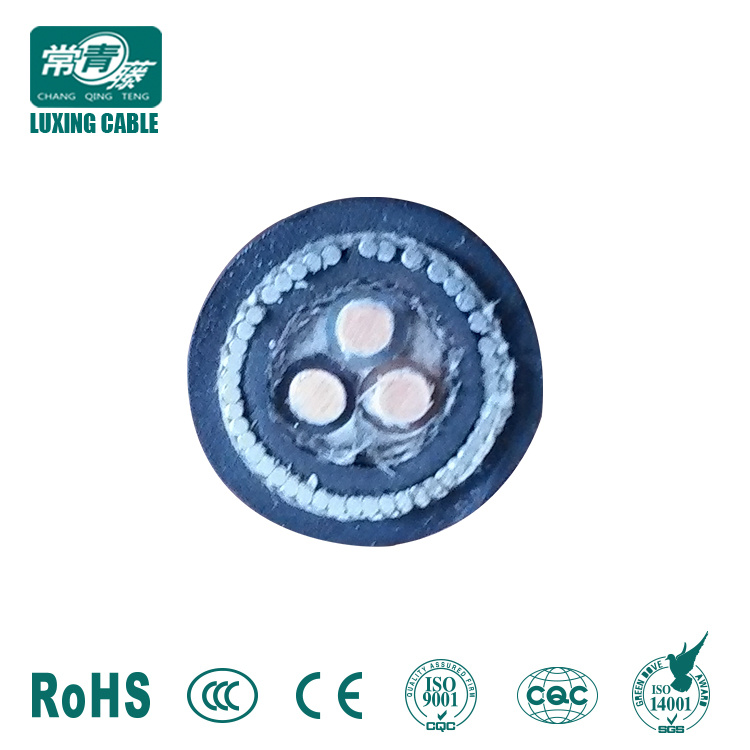

Armoured Cable
XLPE/PVC Insulation power cable
BS5467, IEC 60502 ISO9001
Best service

Armoured Copper Cable
Application:
SWA Cable - power and auxiliary control cables for use in power networks, underground, outdoor and indoor
applications and for use in cable ducting.
Standards:
BS5467, IEC 60502
Conductor:
Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
Insulation:
XLPE (Cross-Linked Polyethylene)
Bedding:
PVC (Polyvinyl Chloride)
Armouring:
Single Core: AWA (Aluminium Wire Armour)
Multi Core: SWA (Steel Wire Armour)
Sheath:
PVC (Polyvinyl Chloride)
Sheath Colour:
Black
Voltage Rating:
600/1000V
Temperature Rating:
0°C to +90°C
Minimum Bending Radius:
1.5mm² - 16mm²:
6 x overall diameter
25mm² and above:
8 x overall diameter

Core Identification:
1 Core: Brown
2 Cores: Brown, Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey;
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
Alternative core identification: White Cores with Black numbers

Shandong New Luxing Cable Co.,Ltd.

Our factory specialized in manufacturing kinds of cable (power cable, cable wire electrical, bare wire,
cu/xlpe/swa/pvc, copper/aluminum, Amoured/Aerial, 0.75mm/1mm/1.5mm/2.5mm/3.5mm/4mm/

6mm/10mm/16mm/25mm/35mm/50mm/70mm/95mm/120mm/150mm/185mm/240mm/300mm/400mm/500
mm/630mm/800mm, 12v/220v/0.6/1kv/11kv/33kv/110kv/132kv, 3/4/5/6/7/8/16 core) since the

year of 1999. Our factory have Tengzhou, Dezhou and Wuxi city three production bases and
current employees more than 700 people. Our cables in good quality standard and have CE,

ISO9000/14000,CCC,IEC,BS,AWM/AWG standard certifications. Our company had fixed partnership with
SGCC&STATE GRID CORPORATION OF CHINA(China largest power enterprise) and many other our
country State-owned big enterprises. And supply IEC/BS/VDE standard cable wire electrical & power cable
to Africa( Uganda, South Africa, Zimbabwe...), Southeast Aisa (

Myanmar,Thailand, Indonesia, Philippines,Malaysia...), East Asia(Korea...), South America(Brazil...),

Europe(Czech repulic...) market. Also could meet many country standard such as NYM cable,
DPYC/MPYC/TPYC marine cable, THHN/THWN/TW building wire, AWM/AWG cable...

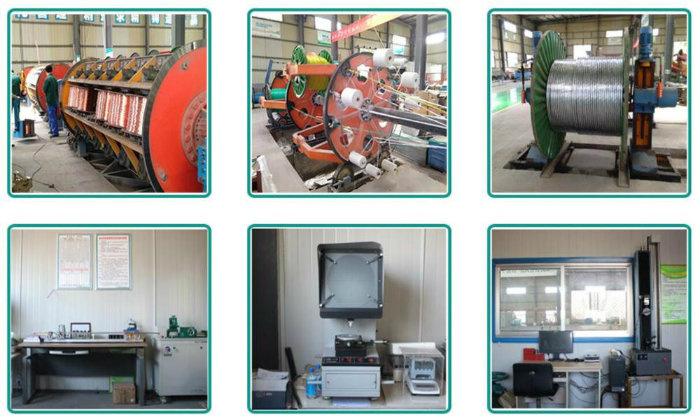

Luxing Factory : Our Production Base

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

Certificates

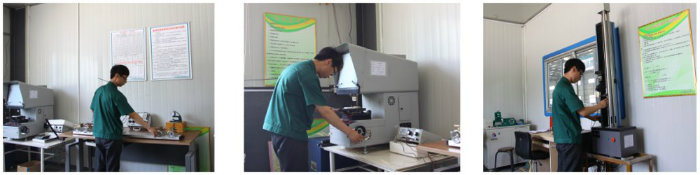

Strict Quality Test

Packaging & Shipping

After -Sale Service

Why Choose US

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Contact Information

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
